Installation/Connection

c

b

a

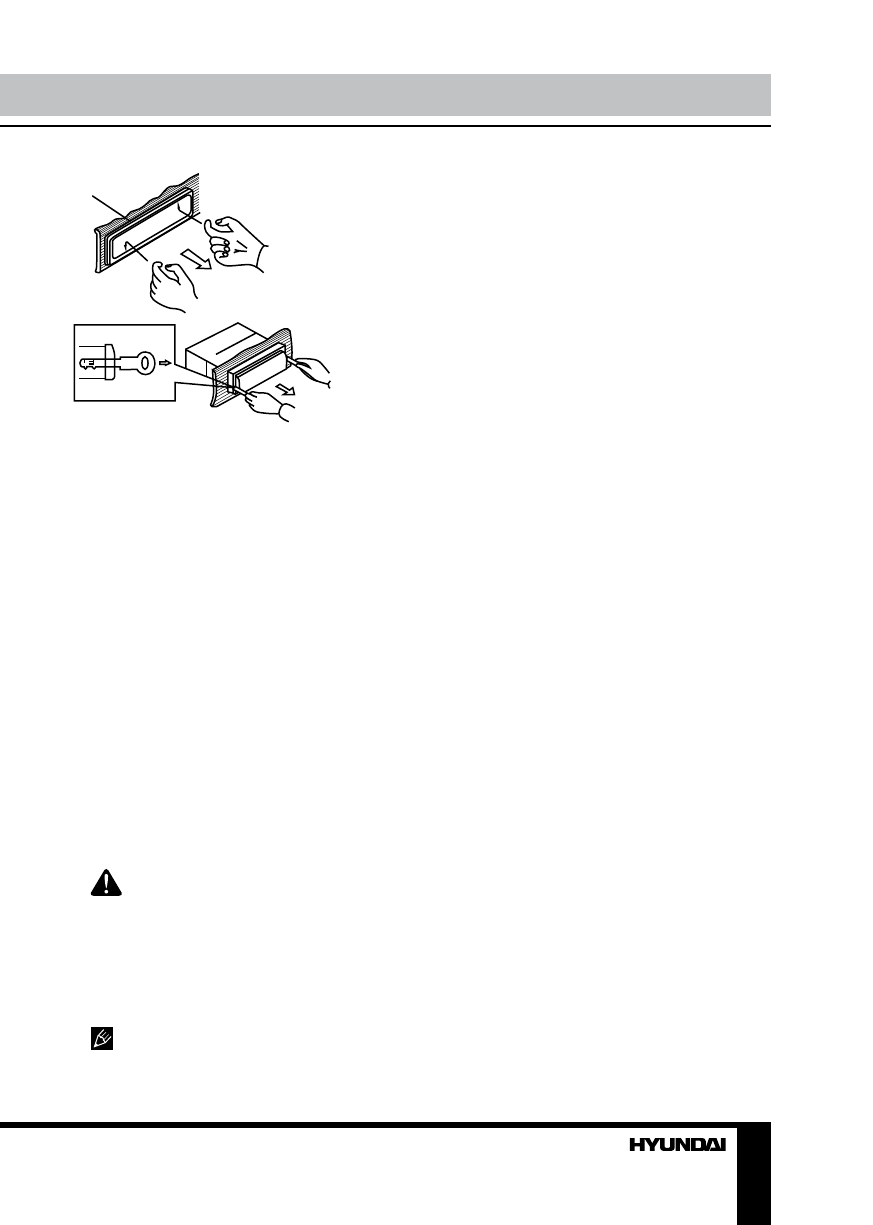

1.  Switch off the unit and detach the front

panel.

2.  Insert your fingers into the groove in the

front side of the trim frame (apply some effort to
detach the frame). Pull the frame to detach it.

3.  Insert the supplied release keys into the

both sides of the unit body to click, as shown
in the picture. To extract the unit from the
dashboard, pull the release keys or the unit
body to pull it out.

Detachable control panel

Install the fastening hole on the right side

of the front panel on the right fastening of the
unit. Then insert the left fastening on the panel
into the fixing hole on the left part of the unit.
Press on the upper right part of the panel until
a click. Ensure that the panel is properly fixed,
otherwise error symbols may be displayed and
some buttons may not function.

To detach the front panel, press OPEN

button, then distract the left side of the panel
from the fastening of the unit.

 The control panel can easily be

damaged by shocks. After removing it, place
it in a protective case and be careful not to
drop it or subject it to strong shocks. The rear
connector that connects the main unit and the
control panel is an extremely important part. Be
careful not to damage it by pressing on it with
fingernails, pens, screwdrivers, etc.

  If the control panel is dirty, wipe off the

dirt with soft, dry cloth only. And use a cotton

swab soaked in isopropyl alcohol to clean the
socket on the back of the control panel.

Anti-theft system

The front panel of this unit can be stored in

the included protective case when not in used
and carried away when you leave the vehicle
to deter theft.

Switch off the power of the unit. Detach the

front panel, then put it to the protective case
and take it with you.
