6

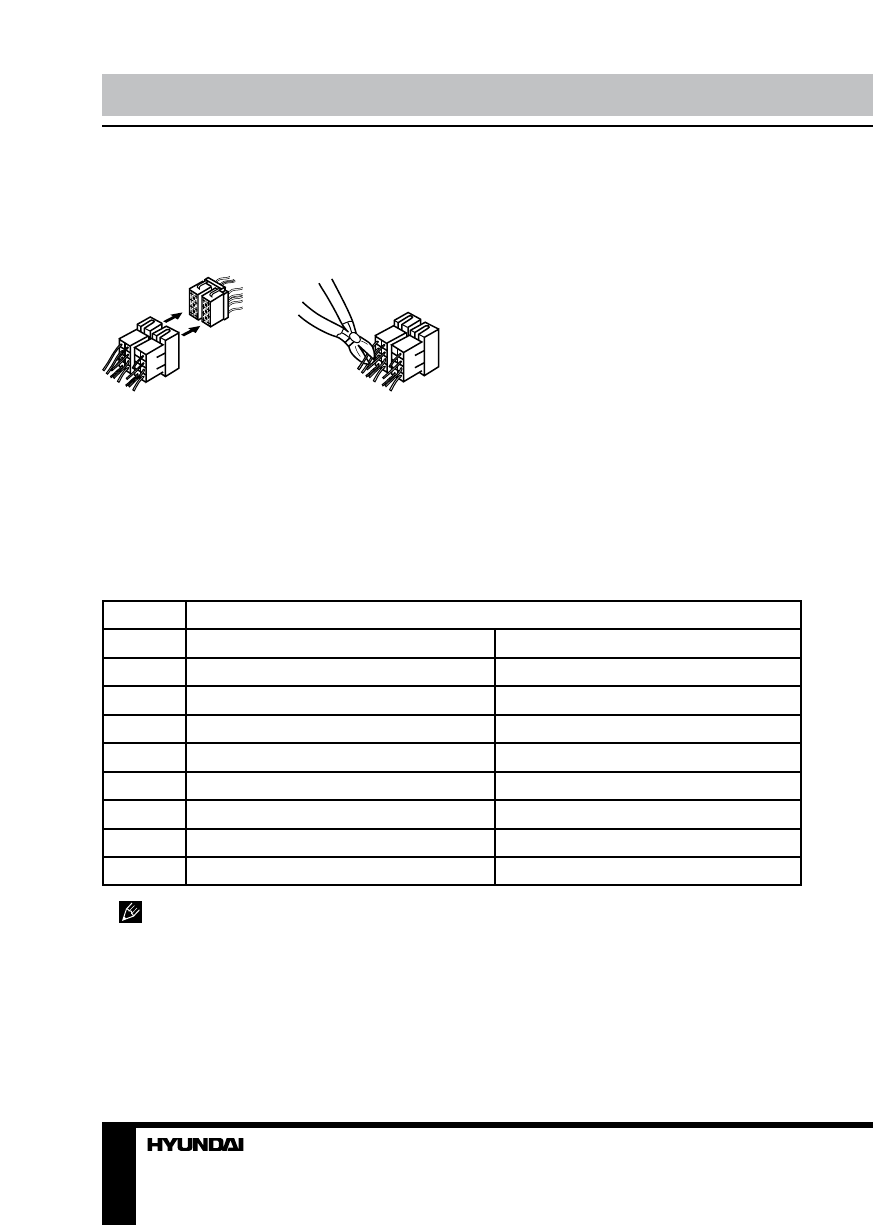

Installation/Connection

Using the ISO Connector

1.  If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2.  For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.

Location

Function

Connector A

Connector B

1

Rear right (+) - Violet

2

Rear right (-) - Violet/Black

3

Front right (+) - Grey

4

Battery +12V/Yellow

Front right (-) - Grey/Black

5

Power antenna/Blue

Front left (+) - White

6

Front left (-) - White/Black

7

Ignition/Red

Rear left (+) - Green

8

Ground/Black

Rear left (-) - Green/Black

  Power antenna wire is intended for

power supply of the antenna and for remote
control of an additional amplifier.

1.

2.
