5

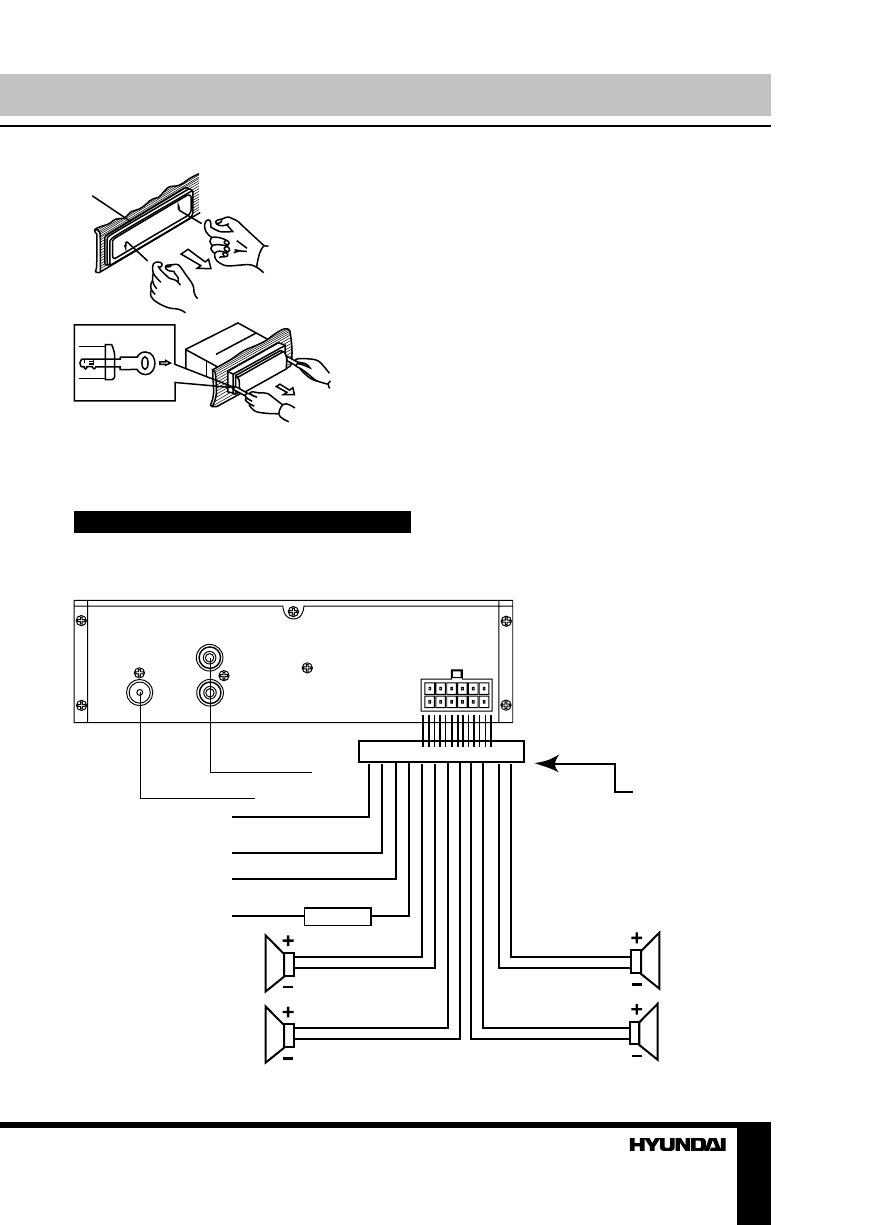

Installation/Connection

c

b

a

1.  Switch off the unit and detach the front

panel.

2.  Insert your fingers into the groove in the

front side of the trim frame (apply some effort to
detach the frame). Pull the frame to detach it.

3.  Insert the supplied release keys into the

both sides of the unit body to click, as shown
in the picture. To extract the unit from the
dashboard, pull the release keys or the unit
body to pull it out.

Connection

Connection diagram

ISO
CONNECTOR

POWER ANTENNA

IGNITION

BATTERY +12V

FRONT

4 ohm

FRONT
4 ohm

REAR
4 ohm

RIGhT
SP

REAR

4 ohm

LEFT

SP

GROUND

ANTENNA SOCKET

RCA LINE-OUT
(LEFT = WhITE;
RIGhT = RED)

BLACK

BLUE

RED

YELLOW

WhITE

GREY

WhITE/BLACK

GREY/BLACK

GREEN

VIOLET

GREEN/BLACK

VIOLET/BLACK

FUSE 15 A
