Installation/Connection

Connection

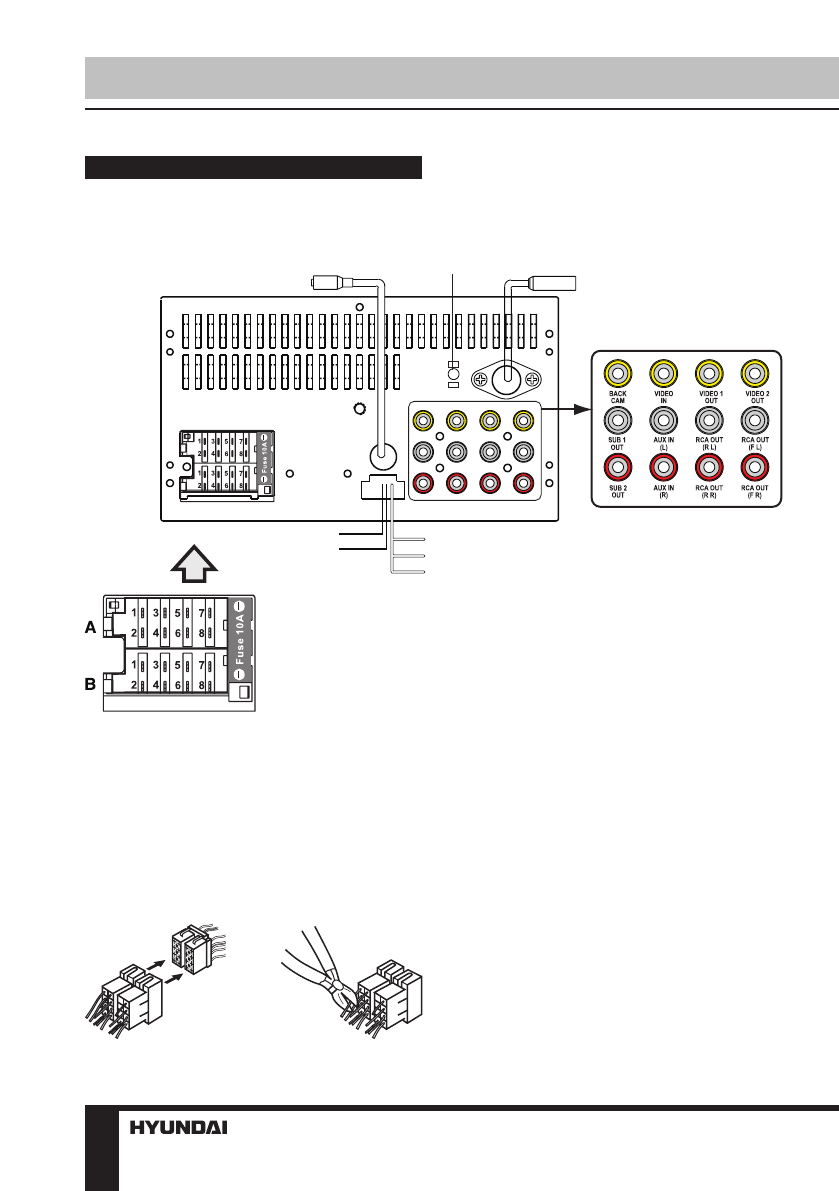

Connection diagram

Using the ISO Connector

1. If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2. For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.

1.

2.

Radio Antenna

Connector A

1. Rear right speaker(+)/Purple

2.

3. Front right speaker(+)/Grey

5. Front left speaker(+)/White

Rear right speaker(-)/Purple-Black

4. Front right speaker(-)/Grey-Black

6. Front left speaker(-)/White-Black

7. Rear left speaker(+)/Green

8. Rear left speaker(-)/Green-Black

Connector B

1. -

2. -

3. -

4. Battery 12V (+)/Yellow

5. Antenna power/Blue-White

6.

7. ACC+/Red

8. Ground/Black

TV

Antenna

Reverse(purple-white)

Parking (green)

Steering 1 (brown)

Steering 2A (white)

Steering 2B (grey)

GPS antenna

Panel light/Orange-White
