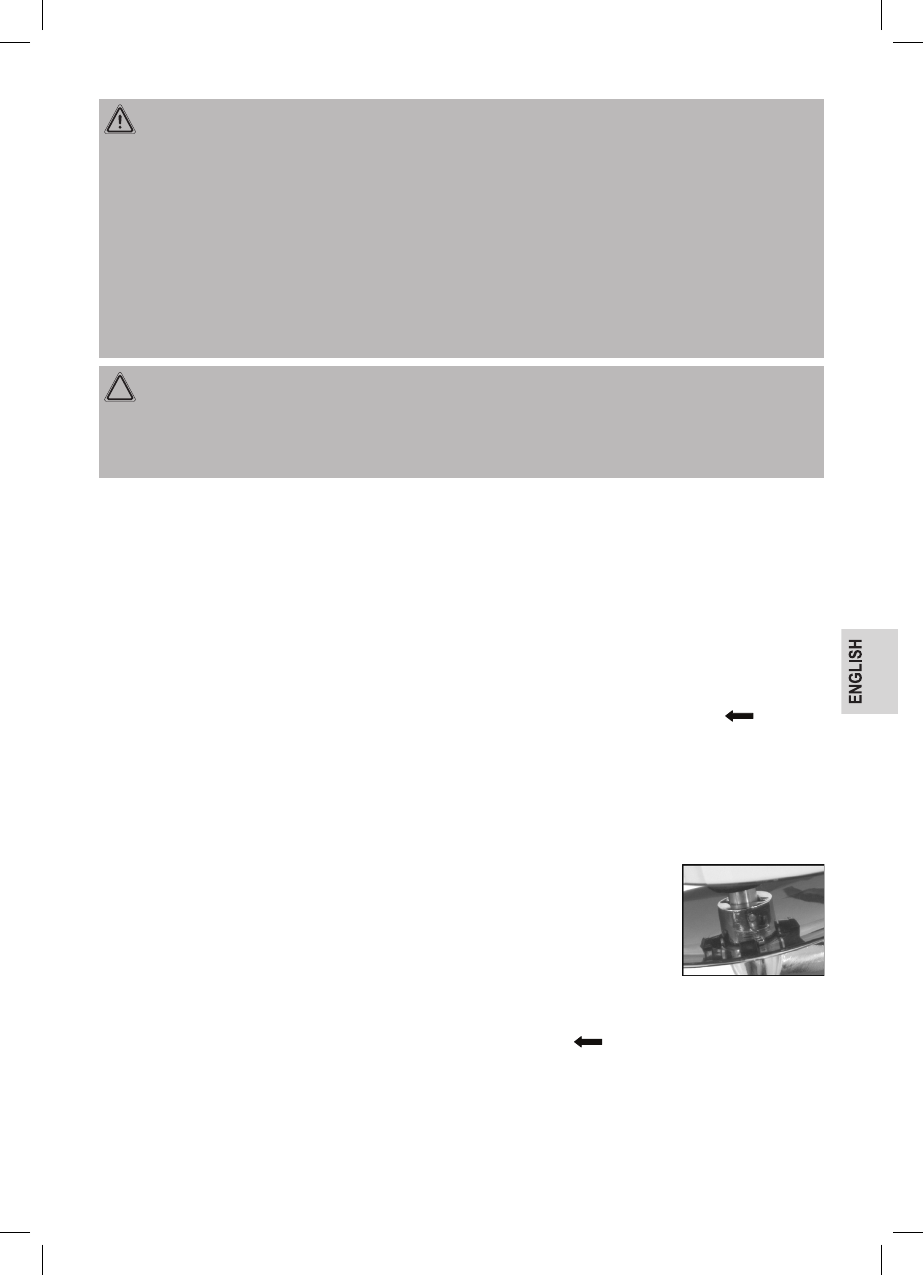

31

Overview of the Components

1  Splash guard

2  Swivel arm

3  Lever for lowering/raising the arm

4  Control knob

5  Motor housing

6  Hook splash guard

7a  Dough hook

7b  Egg beater

7c  Mixing hook

8  Mixing bowl

9  Drive shaft

Preparation

•  Remove the appliance and all included accessories from

the box.

•  In order to remove any production residue, clean all acces-

sories before initial use as described under “Cleaning”.

Electrical Connection
•  Ensure that your mains power corresponds with the specifi

-

cations on the type label.

Use Instruction

1.

Opening the swivel arm:

 Press the lever (3). Manually

guide the swivel arm to the top position.

2.  If you need the splash guard, attach it now to the swivel arm

from below. Hold the

 splash guard

 (1) in such a way that

the fill opening is positioned in front of you. On the bottom

of the swivel arm, there are two recesses on the front and

back. Insert the splash guard with its guide lugs into these

recesses. Turn the splash guard towards

 LOCK to

lock it.

3.  If you want to use the dough hook (7a) or mixing hook (7c),

first attach the hook splash guard

 (6). It will prevent the

drive shaft (9) from getting in contact with the dough.

  Hold the guard like a bowl. Insert the dough hook or the

mixing hook from below through the recess of the guard

and then lock it by turning it one quarter of a turn.

4.

Attaching accessories:

 On the

top end of the accessories, there

is a recess for the drive shaft and

the splint. Slide the accessory

over the drive shaft. Push down

and at the same time turn the

accessory anticlockwise in order

for the splint of the drive shaft to lock into the accessory.

5.

Mixing bowl:

 Place the mixing bowl into its holder. Turn the

bowl towards

 LOCK to its limit.

6.  Fill your ingredients into the mixing bowl.

7.  Check whether the control knob is set to “

0

”.

8.  Press the lever (3) to lower the arm. You must press onto

the arm from above, until it locks into the lowest position.

9.  Connect the mains plug to a tested plug socket.

10. Select the speed using the table below.

WARNING: Risk of injury!

•  Children shall not play with the appliance.

•  Appliances can be used by persons with reduced physical, sen-

sory or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of

the appliance

 in a safe way and if they understand the hazards

involved.

 CAUTION:

Do not immerse the device into water for cleaning. Please follow the

instructions as stipulated in the chapter “Cleaning”.

•  Do not manipulate safety switches.

•  Only process foodstuffs with this appliance.

•  Misuse of the appliance for other purposes may cause injury.
