ON/OFF button

Press this button can turn on or turn off the air conditioner.

MODE button

Press this button to select your required operation mode.

When selecting auto mode, air conditioner will operate automatically

according to exfactory setting. Set temperature can’t be adjusted and will

not be displayed as well. Press «FAN» button can adjust fan speed. Press

«      » or «     » button can adjust fan blowing angle.
After selecting cool mode, air conditioner will operate under cool mode.

Press «    » or «   » button to adjust set temperature. Press «FAN» button

to adjust fan speed. Press «    » or «    » button to adjust fan blowing angle.
When selecting dry mode, the air conditioner operates at fan1 under dry

mode. Under dry mode, fan speed can’t be adjusted. Press «    » or «    »

button to adjust fan blowing angle.
When selecting fan mode, the air conditioner will only blow fan, no cooling

and no heating. Press «FAN» button to adjust fan speed. Press «     » or

«      » button to adjust fan blowing angle.
When selecting heating mode, the air conditioner operates under heat

mode. Press «    » or «    » button to adjust set temperature. Press «FAN»

button to adjust fan speed. Press «      » or «      » button to adjust

fan blowing angle. (Cooling only unit won’t receive heating mode signal.

If setting heat mode with remote controller, press ON/OFF button can’t

start up the unit).

7. OPERATING MODES

NOTE:

For preventing cold air, after starting up heating mode,
indoor unit will delay 1~5 minutes to blow air (actual
delay time is depend on indoor ambient temperature).
Set temperature range from remote controller:
16~31

0

C; Fan speed: auto, fan1, fan2 , fan3, fan4, fan5,

infinte speed

Auto

Cool

Dry

Fan

Heat

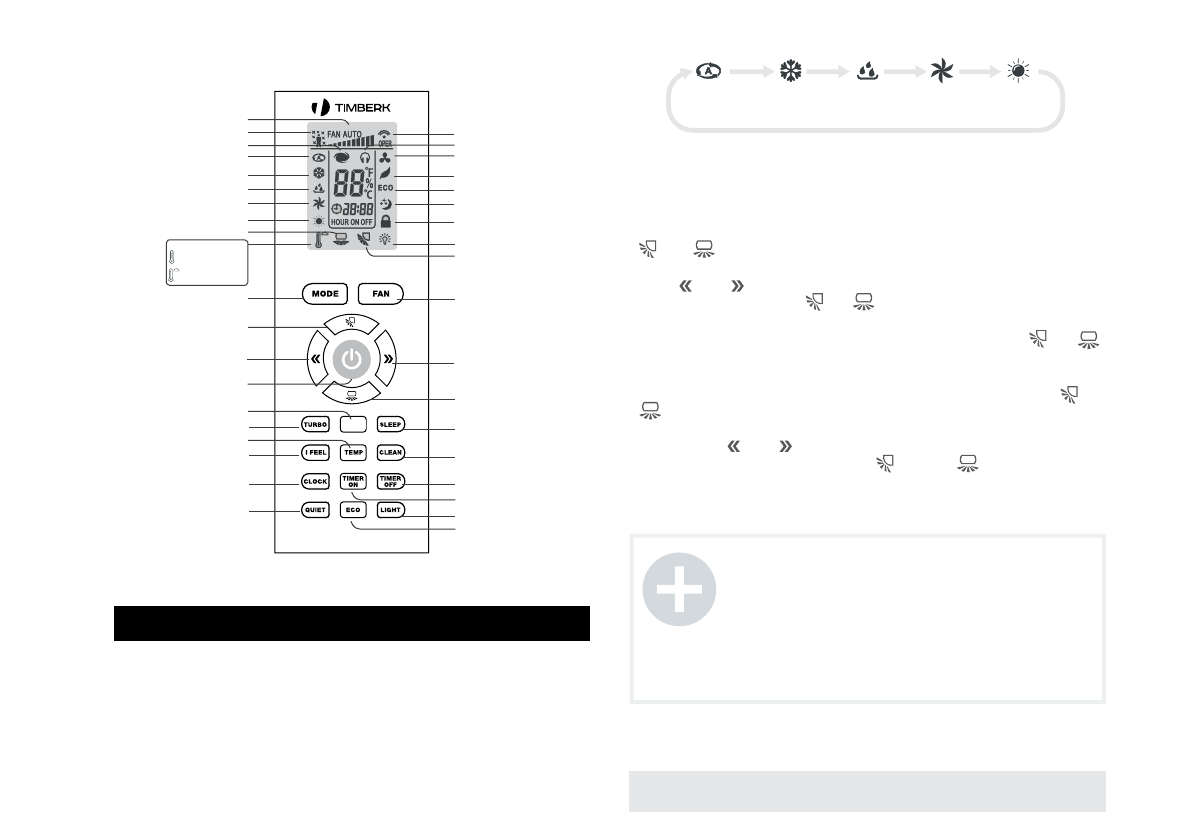

The conditioner may be controlled from a remote control board

HEALT

T

Turbo mode

Health function

Send signal

Set fan speed

Child lock

Sleep mode

Up&down swing

Light

Dual-8 nixietube

Auto mode

Cool mode

Dry mode

Fan mode

Heat mode

Clock display

Fan button

+ button

Left&right swing button

Light button

Timer off button

Timer on button

Health button

Clean button

Temp button

I feel

Left&right  swing

Up&down swing button

Turbo button

Sleep button

Clock button

ECO button

I feel button

Quiet button

-  button

ON/OFF button

Mode button

Quiet mode

Clean mode

ECO mode

Temp. display type

Outdoor ambient temp.

Indoor ambient temp.

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●
