4. APPLIANCE DESCRIPTION

The conditioner consists of indoor and outdoor units connected by

pipelines. The conditioner may be controlled from a remote control board

or from an indoor unit control panel.

5. DELIVERY SET

6. DISPLAY INDOOR UNIT

Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation -1 piece
Conditioner unit for outdoor installation -1 piece
Remote control board -1 piece
Batteries for remote control board - 2 pcs.
User manual -1 piece
Guarantee slip -1 piece
Packing of indoor-installation unit -1 piece
Packing of outdoor-installation unit -1 piece

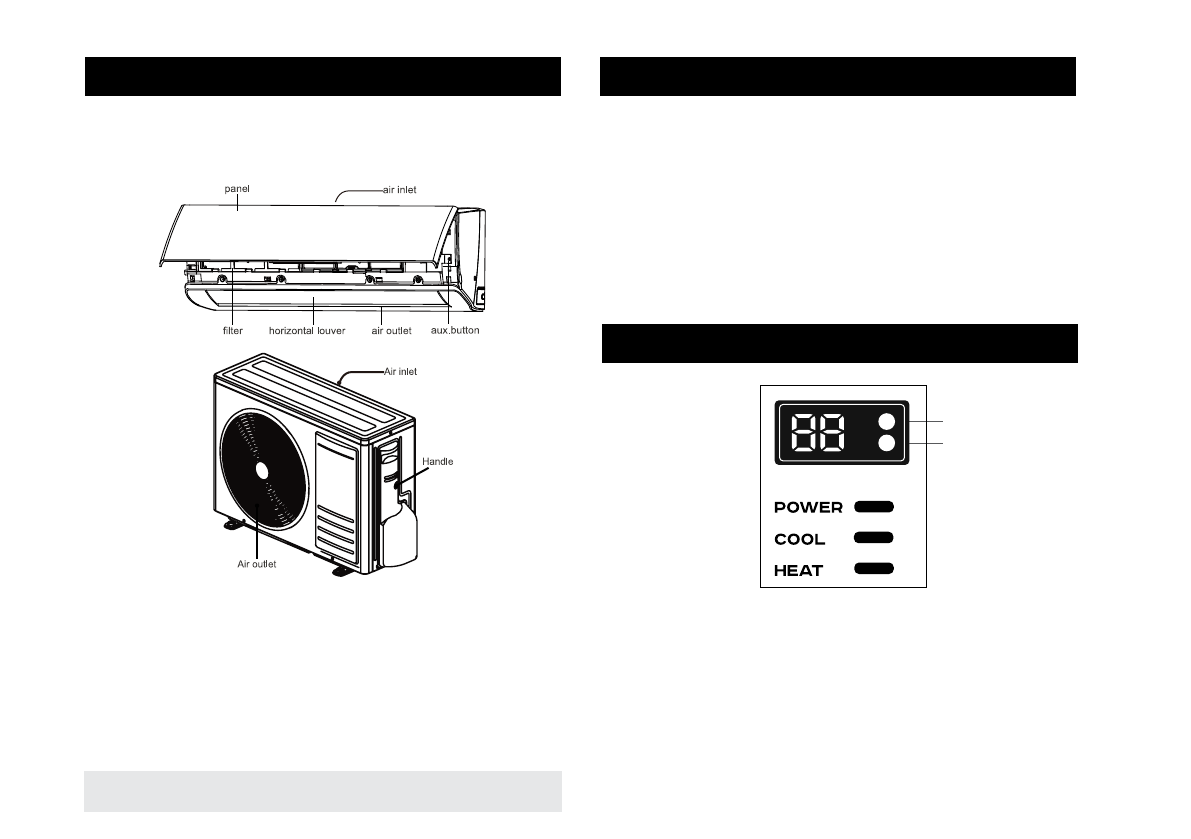

1. Front panel
2. Display
3. Air Filter
4. The air intake
5. The horizontal grille
6. On / Off button

●

●

●

●

●

●

In standby mode, the power indicator lights redmode lamp is off.
In the cooling mode and the cooling mode in automatic indicators power is

off, mode indicator lights green color.
In the heating mode and heating in automatic mode indicator Power is not

lit mode indicator lights up in orange.
In the dry mode and the fan both indicators are off.

Fig. 2

Fig. 1

Mode indicator

Power indicator
