www.timberk.com • Electric air conditioner

6

Fig. 6

A

B

C

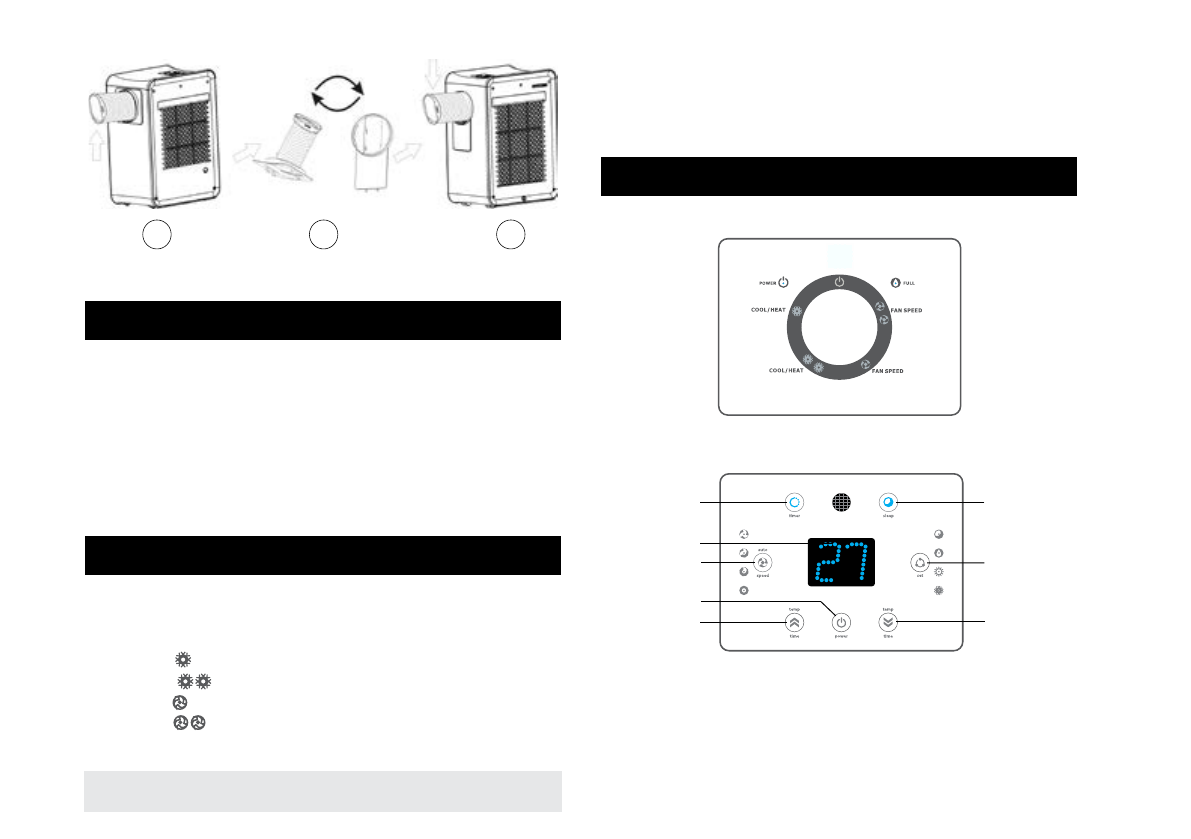

Control panel (for AC TIM 07H P4, AC TIM 09H P4) (Fig. 7).
1. Mode switch (Right-left)
Switch off – central position of the handle
COOL/HEAT [    ] – cooling / heating mode (low speed)
COOL/HEAT [         ] – cooling / heating mode (high speed)
FAN SPEED [    ] – ventilation mode (low speed)
FAN SPEED [         ] – ventilation mode (high speed)

2. FULL – Condensate fill-up tank indicator. If this indicator is on then

the condensate collection tank is full. It is necessary to switch off the

unit and drain the condensate by unscrewing the plug on pipe 11 (Fig.

4), then the unit can be switched on again.
3. POWER – air conditioner operation indicator.

Control panel for AC TIM 07H P4, AC TIM 09H P4

Fig. 7

Fig. 8

2

4

5
6

3

1

7

8

Control panel for AC TIM 09HE P4

6. APPLIANCE CONTROL

5. DELIVERY SET

7. OPERATING MODES

SCOPE OF DELIVERY
1. Household air conditioner 1 pc.
2. Remote control* (batteries are not supplied, 1,5V UM4 AAA CR03

batteries are required) 1 pc.
3. The  adapter  for air duct 1 pc.
4. Air outlet hose 1 pc.
5. Removable grille 1 pc.

* - only  for  AC  TIM 09HE P4.

Control panel for AC TIM 09H P4E (Fig. 8)
1.POWER button. Press this button to switch on or off the unit.
2.SET button. Press this button to select the mode of heating,

dehumidification or cooling.
