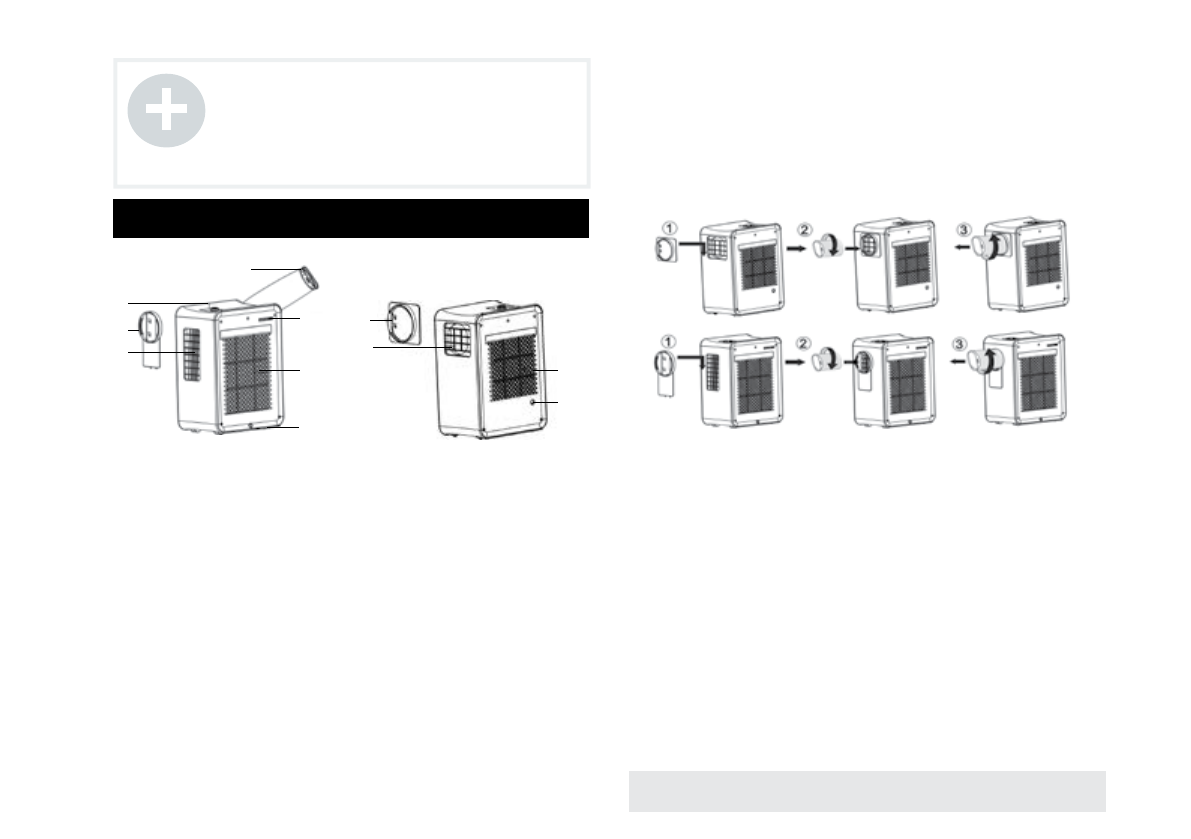

4. DEVICE DESCRIPTION

Installation of air outlet hose (Fig. 5)
1. Prior to operation of the unit take off the removable cover and get

the air outlet hose, then insert it in the hole.
2. Rotate the air outlet hose in the direction, indicated by arrow 2 and

take it out from the removable grill.
3. Rotate the air outlet hose in the direction, indicated by arrow 3 and

connect it to the removable grill.

Fig. 5

NOTICE:

The manufacturer reserves the right to make

changes in the design, scope of delivery, product

manufacturing technology, as well as change its

technical characteristics to improve its consumer

and technical properties without prior notice.

Fig. 5.

Installation of the hose in cooling / heating modes (Fig. 6)
To switch the air conditioner to heating it is necessary to install the hose

to the side, where cold air is coming out. To switch the air conditioner

to cooling it is necessary to install the hose to the side, where warm air

is coming out.
To switch the unit to the required mode (cooling/heating):
Disconnect the removable grill and the air outlet hose, as shown by the

arrow in Fig. 6 – A, then interchange their position (B) and connect to

the unit. Final structure is shown in Fig.6 – C.

1. Control panel
2. Air-outlet
3. Removable grille
4. Nozzle
5. Air inlet grille
6. Condensation drain hole
7. Place for remote control
8. Adapter of air duct
9. Air outlet
10. Condensation drain hole

11. Air inlet grille
