1. Mode display

Displays the current operation mode. Including auto (

 ), cool(   ), dry(   ), heat(

 ) (Not

applicable to cooling only models), fan(

 ) and back to auto (

 ).

2. Transmission Indicator
This transmission indicator lights when remote controller transmits signals to the indoor unit.

3. ON/OFF display

Displayed by pressing the ON/OFF button. Press the ON/OFF button again to remove.

4. TIMER ON display
Displayed when TIMER ON time is set.

5. TIMER OFF display

Displayed  under sleeping operation. Press the SLEEP button again to remove.

6. Sleep Display
Displayed under sleeping operation.

Press the SLEEP button again to remove.If the air conditioner is on, press this button to activate

the of-delay timer. Each pressing of the Timer button changes the timer setting by 1 hour in the

following sequence: 1-2...24-cancel-1 and so on. As the set time passes, the air conditioner is

switched of.

7. FOLLOW ME Display(on some models)

Displayed when FOLLOW ME function is activated.

8. Temp./Timer display

Displays the temperature setting(17

O

C~30

O

C). When you set the operating mode to FAN, no

temperature setting is displayed. And if in the TIMER mode, shows the ON and OFF settings of
the TIMER.

9. Fan speed display

Displays the selected fan speed, AUTO(no display) and three fan speed levels “

 “ (LOW) “

 “ (MED) “

 “ (HIGH) can be indicated. The fan speed is AUTO when the

operating mode is either AUTO or DRY.

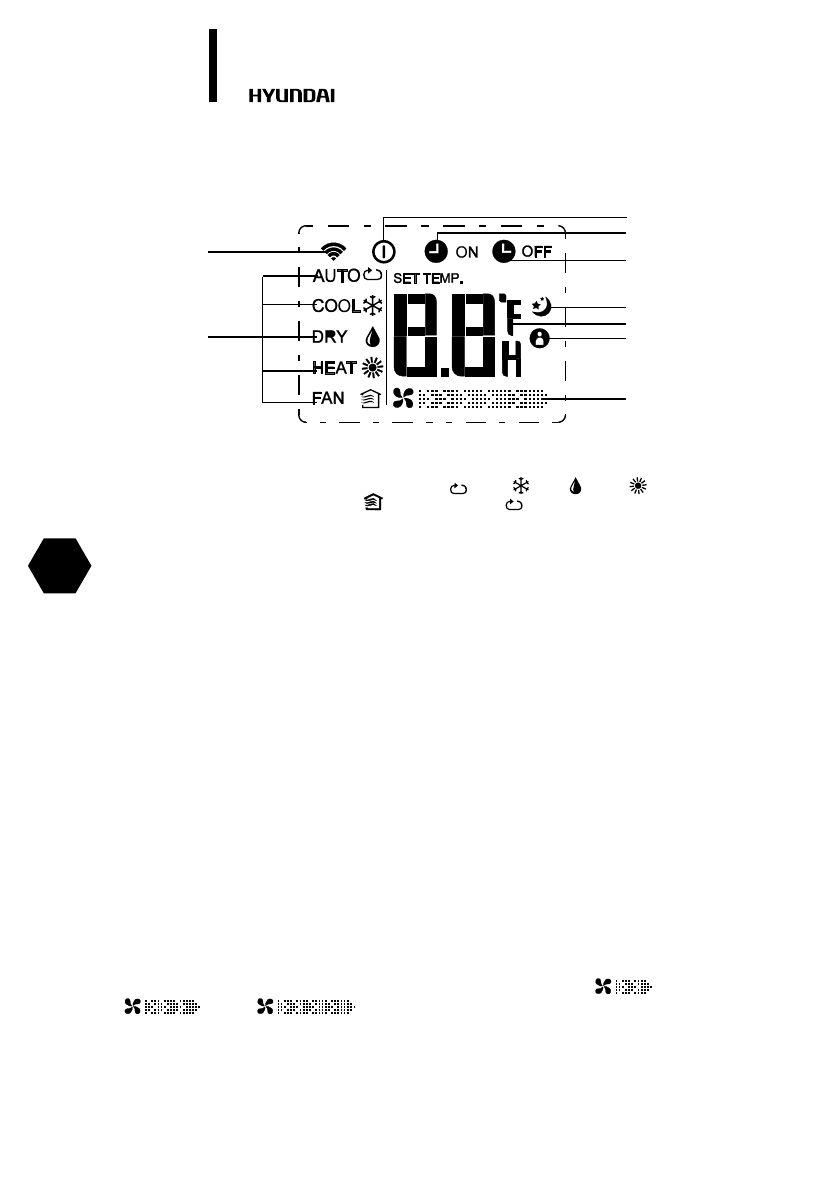

7. OPERATING MODES

INDICATORS ON LCD

Fig. 4

1

2

3
4

5

6

8
7

9
