5. INDOOR UNIT INSTALLATION
As for the parts to be used for installation, be sure to use the attached accessories and the specified parts.
CAUTION
•
Install so that the unit does not tilt to either side or forward. (Applying an excessive force to the drain hose
can cause water leakage.)
•
Do not hold the unit by the horizontal flaps when lifting it. (This may damage the horizontal flaps.)

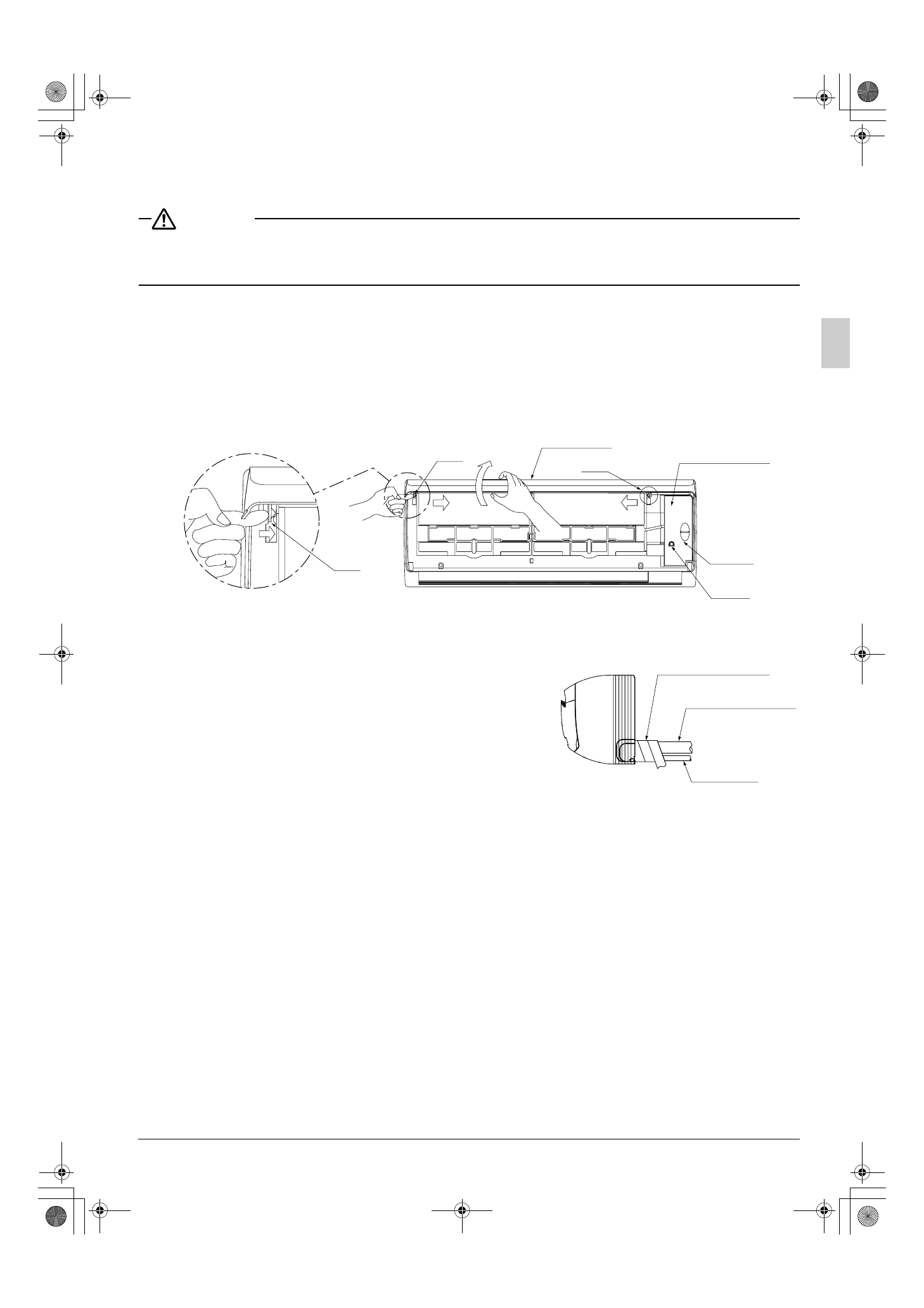

(1) Remove the front panel and the control box lid. (Refer to Fig. 6)
< How to remove the front panel and control box lid >
(1) Open the front panel to the point where it stops.
(2) Push the axes on either side of the front panel towards the center of the main unit and remove. (You can
also remove it by sliding the front panel either to the left or right and pulling it forward.)
(3) Remove the screw from the control box lid and pull the handle forward.
(2) Point the pipe in the direction it will be passed out.
For right, bottom-right, and back-right piping (Refer to Fig. 7)
•
Wrap the drain hose and the refrigerant piping together with the
insulating tape (3) so that the drain hose is below the refrigerant
piping.
For left, bottom-left, and left-back piping
•
Remove the front grille.
(Refer to Fig. 8)
< How to remove the front grille >
(1) Remove the screws grille clamps and tabs securing the front grille.
Axis
Axis
Axis
Fig. 6
Handle
Screw
Control box lid
Front panel
(1)
(2)
(2)
(3)
Insulating tape (3)
(accessory)
Refrigerant piping
Drain hose
Fig. 7
