English

17

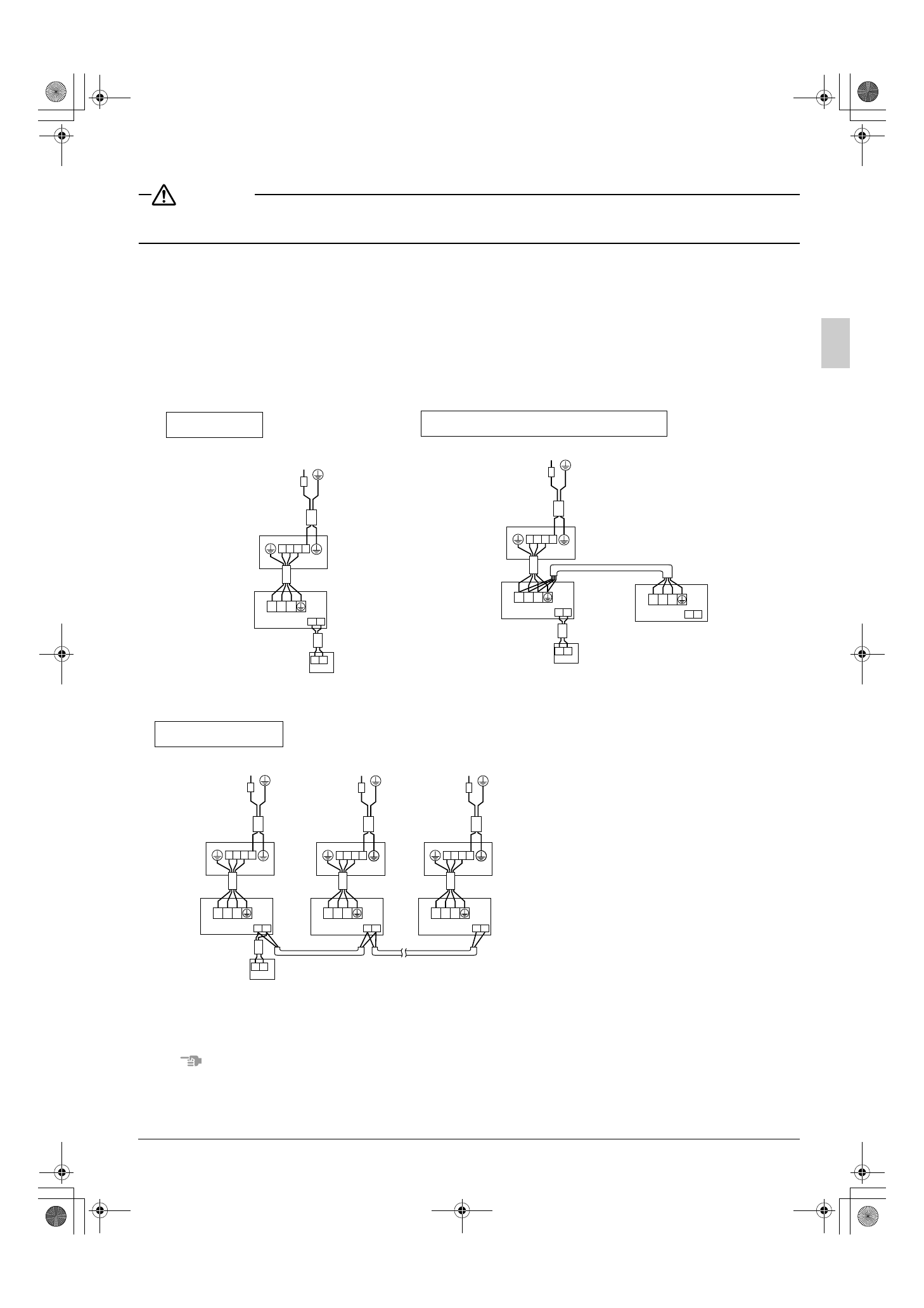

9-2 WIRING EXAMPLE

CAUTION

Be sure to install an earth leakage breaker to the outdoor unit.
This is to avoid electric shocks or fire.

For the wiring of outdoor units, refer to the installation manual attached to the outdoor units.

Confirm the system type.

• Pair  type

: 1 remote controller controls 1 indoor unit (standard system).

(Refer to Fig. 24)

• Simultaneous operation system

: 1 remote controller controls 2 indoor units

(2 indoor units operates equally.)

(Refer to Fig. 25)

• Group control

:

1 remote controller controls up to 16 indoor units

(All indoor units operate according to the remote controller).

(Refer to Fig. 26)

• 2 remote controllers control

: 2 remote controllers control 1 indoor unit.

(Refer to Fig. 28)

NOTE

•

Terminal numbers of outdoor and indoor units must agree.

P

1

P

2

1 2 3

P

1

P

2

1 2 3

Main power supply

Earth leakage
circuit breaker

Outdoor unit

NOTE)

Indoor unit

Remote controller
(Optional accessories)

Pair type

1 2 3

P

1

P

2

P

1

P

2

P

1

P

2

1 2 3

1 2 3

Main power supply

Outdoor unit

Indoor unit (Master)

Indoor unit (slave)

Remote
controller
(Optional accessories)

Simultaneous operation system

Earth leakage
circuit breaker

NOTE)

P

1

P

2

1 2 3

1 2 3

1 2 3

P

1

P

2

P

1

P

2

P

1

P

2

1 2 3

1 2 3

1 2 3

Main power supply

Main power supply

Main power supply

Outdoor unit

Indoor unit
(Master)

Outdoor unit

Indoor unit

Outdoor unit

Indoor unit

Group control remote controller
(Optional accessories)

Group control

Earth leakage
circuit breaker

Earth leakage
circuit breaker

Earth leakage
circuit breaker

NOTE)

NOTE)

NOTE)

Fig. 24

Fig. 25

Fig. 26
