28
English
3D073235-1B
FAQ71·100CVEB

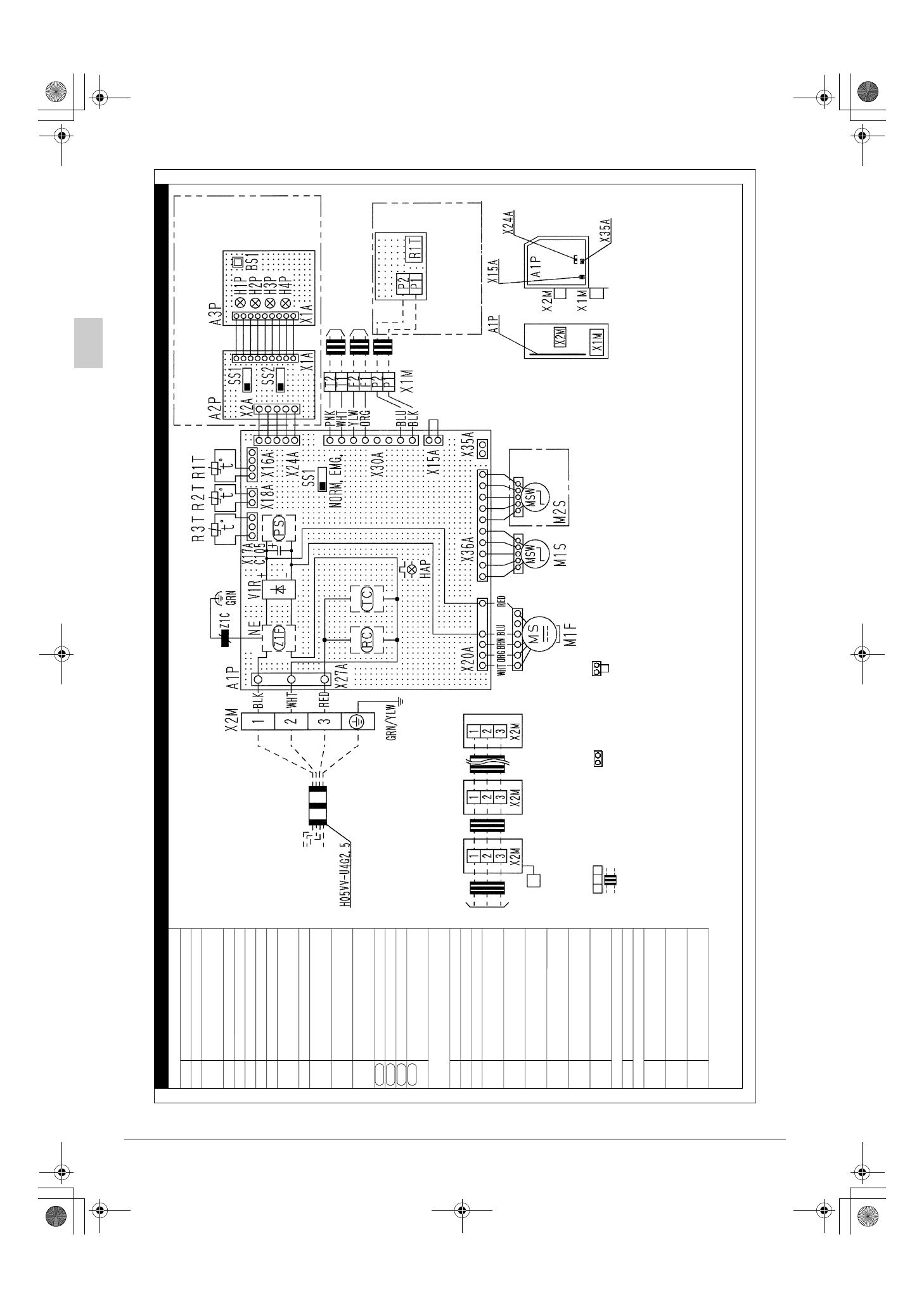

WIRING DIA
GRAM
NOTES
1.
: TERMINAL BLOCK
: CONNECTOR
: SHORT CIRCUIT CONNECTOR
2.
: FIELD WIRING
3.
IN CASE OF SIMULTANEOUS OPERATION INDOOR UNIT SYSTEM, SEE THE INDOOR UNIT WIRING ONLY.
4.
FOR THE DETAIL, SEE WIRING DIAGRAM ATTACHED TO OUTDOOR UNIT.
5.
IN CASE USING CENTRAL REMOTE CONTROLLER, CONNECT IT TO THE UNIT IN ACCORDANCE WITH THE ATTACHED INSTALLATION MANUAL.
6.
IN CASE OF CONNECTION UNITS VARIES ACCORDING TO THE COMBINATION SYSTEM, CONFIRM ENGINEERING GUIDE AND CATALOGS, ETC. BEFORE
CONNECTING.
7.
IN CASE OF MAIN/SUB CHANGEOVER, SEE THE INSTALLATION MANUAL ATTACHED TO REMOTE CONTROLLER.
8.
M2S IS 100 ONLY.
9.
SYMBOLS SHOWS AS FOLLOWS : BLK: BLACK RED: RED BLU: BLUE WHT: WHITE PNK: PINK YLW:YELLOW GRY: GRAY GRN: GREEN
ORG: ORANGE
BRN: BROWN.
10.
SHOWS ONLY IN CASE OF PROTECTED PIPES. USE H07RN-F IN CASE OF NO PROTECTION.
PRINTED CIRCUIT BOARD
CAPACITOR
FLASHING LAMP
(SERVICE MONITOR GREEN)
MOTOR (INDOOR FAN)
MOTOR (SWING FLAP)
MOTOR (SWING FLAP)
THERMISTOR (AIR)
THERMISTOR (COIL)
SELECTOR SWITCH
(EMERGENCY)
DIODE BRIDGE
TERMINAL BLOCK
(REMOTE CONTROLLER)
TERMINAL BLOCK
(TRANSMISSION WIRING)
FERRITE CORE
(NOISE FILTER)
NOISE FILTER
SWITCHING POWER SUPPLY
SIGNAL RECEIVER CIRCUIT
SIGNAL TRANSMISSION
CIRCUIT
PRINTED CIRCUIT BOARD
PRINTED CIRCUIT BOARD
PUSH BUTTON SWITCH (ON/OFF)
PILOT LAMP
(ON-RED)
PILOT LAMP
(TIMER-GREEN)
PILOT LAMP
(FILTER SIGN-RED)
PILOT LAMP
(DEFROST-ORANGE)
SELECTOR SWITCH
(MAIN/SUB)
SELECTOR SWITCH
(WIRELESS ADDRESS SET)
THERMISTOR (AIR)
CONNECTOR
(FLOAT SWITCH)
CONNECTOR (WIRELESS
REMOTE CONTROLLER)
CONNECTOR (POWER
SUPPLY FOR ADAPTOR)
A1P
C105
HAP
M1F
M1S
M2S
R1T
R2T·R3T
SS1
V1R
X1M
X2M
Z1C
Z1F
PS
RC
TC
A2P
A3P
BS1
H1P
H2P
H3P
H4P
SS1
SS2
R1T
X15A
X24A
X35A
WIRELESS REMOTE CONTROLLER
(RECEIVER/DISPLAY UNIT)
WIRED REMOTE CONTROLLER
CONNECTOR FOR OPTIONAL PARTS
INDOOR UNIT
17
18
16
1
1
3
4
67
8
9
7
5
2
10
11
12
13
14
15
Fig. 34
