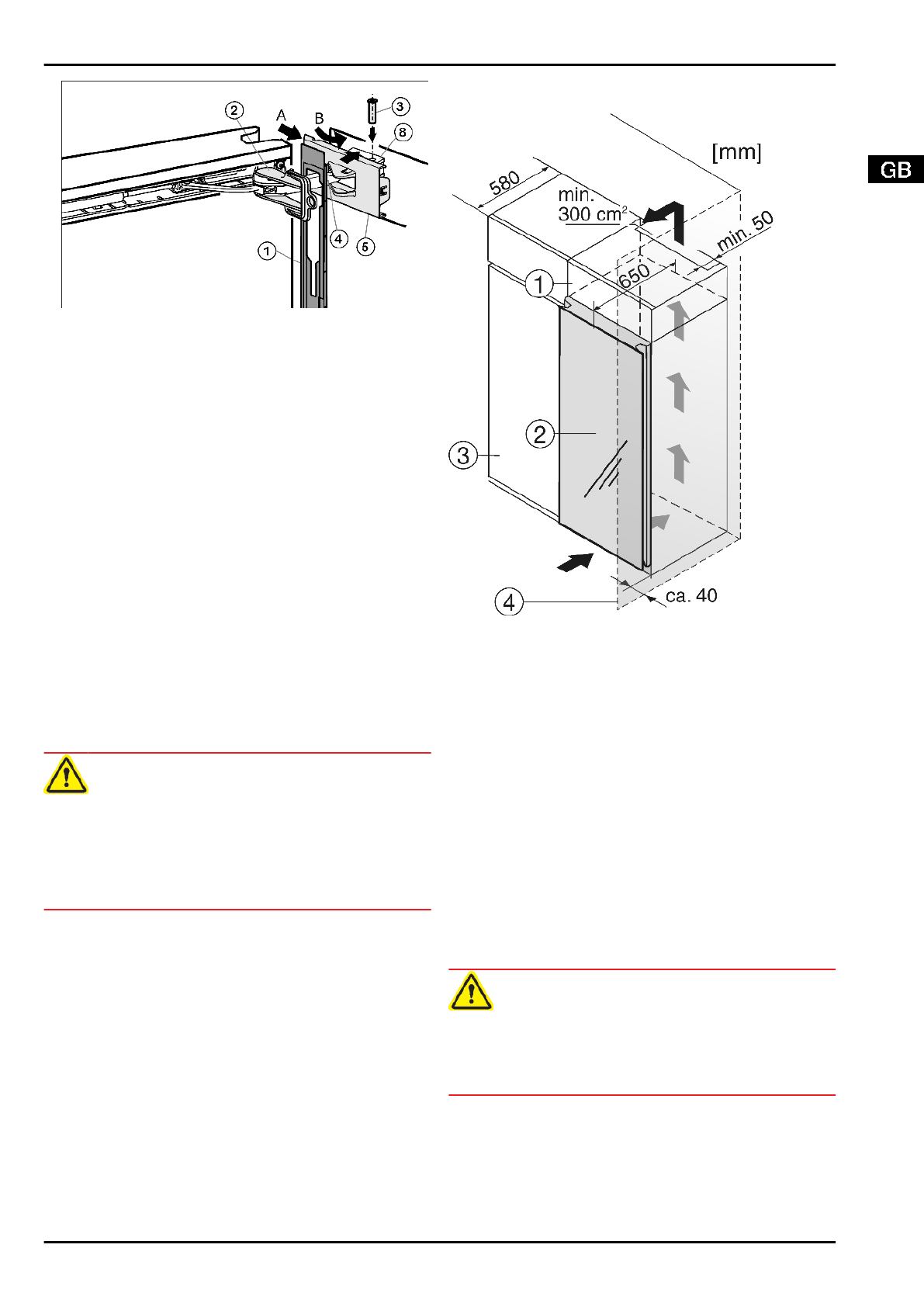

Fig. 17

u

Attach  the  faceplate

  Fig.  17  (1)  to  the  soft  stop  bracket

Fig. 17 (4) so that the catches face inwards and the front faces

the appliance.

u

Slide on the cover

 Fig. 17 (5) from the outside (A) and swivel

it over the bearing part

 Fig. 17 (8) (B).

u

Attach  the  cover

  Fig.  17  (5)  and  engage  it  as  far  as  the  first

detent.

w

The openings for the pin are on top of one another after the

soft stop bracket has been positioned.

u

Draw the soft stop bracket

 Fig. 17 (4) towards the bearing part

and  insert  the  pin

  Fig.  17  (3)  from  above  so  that  the  square

sits in the recess.

u

Now completely snap the cover

 Fig. 17 (5) onto the bearing

part

 Fig. 17 (8).

w

Pay attention that the cover fits properly so that the door closes

properly and the pin is secured.

u

Twist the safety lock

 Fig. 17 (2) for removal.

u

Slide the faceplate

 Fig. 17 (1) onto the door and snap it into

place.

u

Turn the cover

 Fig. 6 (6) through 180°, attach and engage it

on the handle side.

4.1.9 Aligning the door

u

If necessary, align the door to the appliance housing by way

of the oblong holes in the bottom turn hinge

 Fig. 13 (43). To

do so, unscrew the middle screw.

WARNING

Risk of injury due to the door dropping out!

If the bearing parts are not screwed into place firmly enough, the

door  may  drop  out.  This  may  lead  to  severe  injuries.  What  is

more, the door may not close and therefore the appliance may

fail to cool properly.

u

Screw the turn hinges firmly into place with 4 Nm.

u

Check all of the screws and retighten if necessary.

4.2 Insertion into a row of kitchen units

Fig. 18

(1) Stack cabinet

(3) Kitchen cabinet

(2) Appliance

(4) Wall

When inserting the appliance into a row of standard kitchen units

(max. depth 580 mm), the appliance can be installed directly next

to  the  kitchen  unit

  Fig.  18  (3).  The  appliance  door  projects

70 mm relative to the front of the kitchen units. It can be opened

and closed perfectly as a result.
Important for the ventilation:

-

At the back of the stack cabinet there has to be a ventilation

duct of at least 50 mm depth throughout the width of the stack

cabinet.

-

The  ventilation  space  under  the  ceiling  has  to  be  at  least

300 cm

2

.

-

The larger the ventilation space, the more energy-saving the

appliance is in operation.

If  the  appliance  is  installed  with  the  hinges  next  to  a  wall

Fig. 18 (4), the distance between appliance and wall has to be at

least 40 mm.

4.3 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect trans-

port!

u

Transport the appliance in a packed condition.

u

Transport the appliance upright.

u

Do not transport the appliance without assistance.

4.4 Installing the appliance

In the event that the appliance is damaged, contact the supplier

immediately before connecting to the mains.
The floor at the site must be flat and level.

Putting into operation

7
