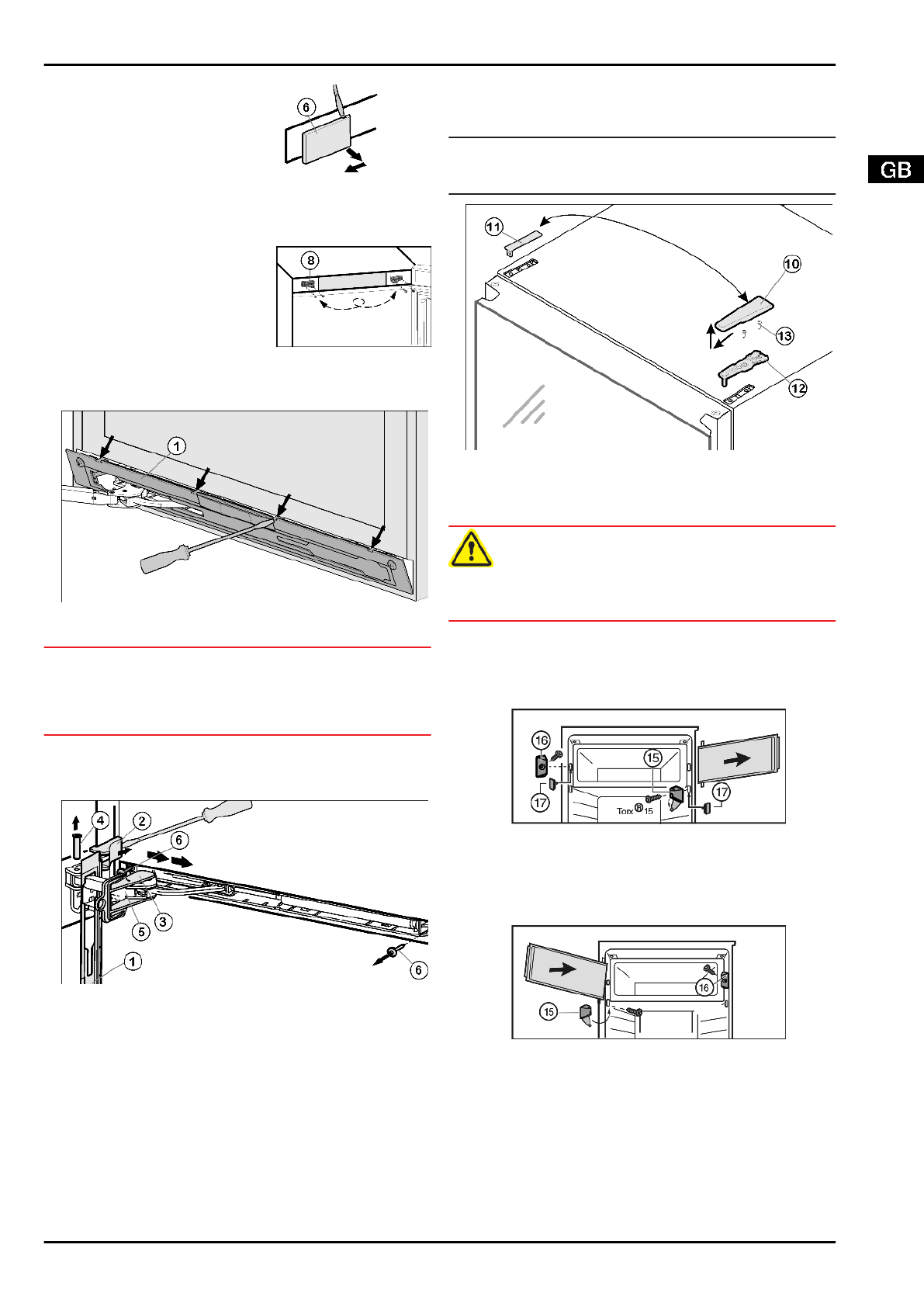

u

Using  a  screwdriver,  detach  the

cover  on  the  handle  side

Fig. 6 (6) and remove it outwards.

Fig. 6

u

Unscrew the soft stop unit (2x Torx 15)

 Fig. 5 (7).

u

Pull the soft stop unit out a little, push it in the direction of the

handle side and swing it out.

u

Set the soft stop unit aside.

u

Unscrew

the

bearing

element

 Fig. 5 (8), turn it 180°

and transfer it to the opposite

side.  Possibly  make  prelimi-

nary holes with a bradawl or

use a cordless screwdriver.

Fig. 7

4.1.2 Detaching the lower soft stop mechanism

Fig. 8

u

Open the door.

NOTICE

Risk of damage!

If the door seal is damaged, the door may fail to close properly

and the cooling will be inadequate.

u

Do not damage the door seal with the screwdriver!

u

Disengage  and  remove  the  faceplate

  Fig.  8  (1)  using  a  flat-

blade screwdriver.

w

The faceplate is attached over the soft stop bracket.

Fig. 9

u

Slide  the  faceplate  forwards  over  the  soft  stop  bracket

Fig. 9 (5) in the direction of the appliance.

u

Snap the safety lock

 Fig. 9 (3) into the oblong hole.

w

The safety lock prevents the hinge from snap-closing.

u

Using a screwdriver, lift off the cover

 Fig. 9 (2) from the outside

and remove it in an outward direction.

u

If necessary, tip the appliance backwards with the assistance

of a second person.

u

Press the pin

 Fig. 9 (4) out from underneath.

u

Press the soft stop bracket

 Fig. 9 (5) towards the door.

u

Remove the faceplate

 Fig. 9 (1).

u

Unscrew the entire soft stop unit (2x Torx 15)

 Fig. 9 (6).

u

Pull the soft stop unit out a little, push it in the direction of the

handle side and swing it out.

u

Set the soft stop unit aside.

4.1.3 Detaching the door

Note

u

Remove  any  food  from  the  door  racks  before  removing  the

door, so that no food falls out.

Fig. 10

u

Close the door.

u

Pull off the cover

 Fig. 10 (10) forwards and upwards.

u

Lift off the cover

 Fig. 10 (11).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Unscrew  the  upper  turn  hinge

  Fig.  10  (12)(2x  Torx  25)

Fig. 10 (13) and raise it for removal.

4.1.4 Changing the freezer compartment door

Fig. 11

u

Fold away the cover of the turn hinge

 Fig. 11 (15).

u

Unscrew  turn  hinge

  Fig.  11  (15)  together  with  compartment

door.

u

Unscrew closing element

 Fig. 11 (16).

u

Close  the  vacated  holes  with  the  accompanying  stoppers

Fig. 11 (17).

Fig. 12

u

Fit the closing element

 Fig. 12 (16).

u

Fit the compartment door at the top.

u

Fit the turn hinge

 Fig. 12 (15) and fold the cover.
