4.1.5 Transferring bearing parts

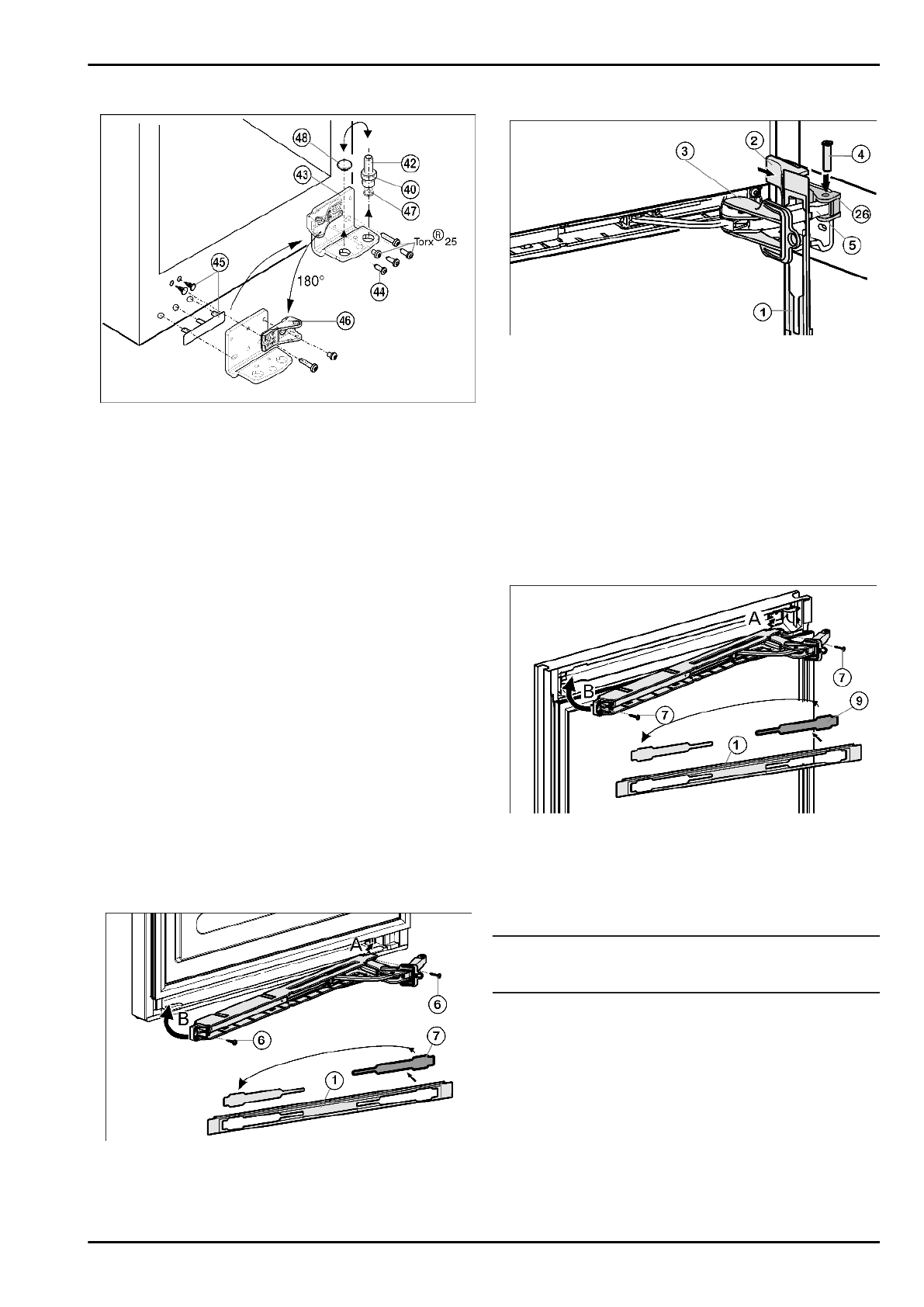

Fig. 13

u

Lift  out  the  bearing  pin

  Fig.  13  (42)  together  with  washer

Fig. 13 (40) and adjustable-height foot Fig. 13 (47).

u

Lift off the stopper

 Fig. 13 (48).

u

Unscrew the turn hinge

 Fig. 13 (43) .

u

Carefully lift off the cover on the handle side

 Fig. 13 (45) and

transfer it to the opposite side.

u

Screw the bottom turn hinge

 Fig. 13 (43) firmly into place (with

4 Nm) on the new hinge side, possibly using a cordless screw-

driver.

u

Unscrew the bearing element

 Fig. 13 (46), turn it through 180°

and  screw  it  back  firmly  into  place,  always  screw  the  long

screw into the oblong hole.

u

Re-insert the stopper

 Fig. 13 (48) into the other hole.

u

Re-insert the bearing pin

 Fig. 13 (42) together with the washer

and adjustable-height foot. In so doing, pay attention that the

locating lug points backwards

4.1.6 Fitting the door

u

Place  the  door  from  above  onto  the  lower  bearing  pin

Fig. 13 (42).

u

Close the door.

u

Insert the upper turn hinge

 Fig. 10 (12) in the door on the new

hinge side.

u

Screw the upper turn hinge

 Fig. 10 (12) firmly into place (with

4  Nm)(2x  Torx  25)

  Fig.  10  (13).  Possibly  make  preliminary

holes with a bradawl or use a cordless screwdriver.

u

Snap the cover

 Fig. 10 (10) and cover Fig. 10 (11) into place

at the opposite side.

4.1.7 Fitting the lower soft stop mechanism

Fig. 14

u

Remove  the  cover

  Fig.  14  (7)  from  the  faceplate  Fig.  14  (1)

and re-insert it at the other side.

u

Engage the soft stop unit with the joint pointing to the hinge

side (A) and swivel into place (B).

w

The screw holes at the left and right have to register.

u

Screw down the soft stop unit (2x Torx 15)

 Fig. 14 (6).

Fig. 15

u

Attach the faceplate

 Fig. 15 (1) to the soft stop bracket so that

the catches face forwards and the front faces the appliance.

u

Draw  the  soft  stop  bracket

  Fig.  15  (5)  towards  the  bearing

part

 Fig. 15 (26) and re-insert the pin Fig. 15 (4) from above

so that the square sits in the recess.

u

Attach and engage the cover

 Fig. 15 (2).

w

Pay attention that the cover fits properly so that the door closes

properly and the pin is secured.

u

Twist the safety lock

 Fig. 15 (3) for removal.

u

Slide the faceplate

 Fig. 15 (1) onto the door and snap it into

place.

u

Close the door.

4.1.8 Fitting the upper soft stop mechanism

Fig. 16

u

Remove  the  cover

  Fig.  16  (9)  from  the  faceplate  Fig.  16  (1)

and re-insert it at the other side.

u

Engage the upper soft stop unit with the joint on the hinge side

(A) and swivel into place (B).

w

The screw holes at the left and right have to register.

u

Screw down the soft stop unit (2x Torx 15

 Fig. 16 (7)).

Note

u

Keep to the correct order. First attach the panel over the soft

stop bracket, then the cover.
