4.1.8 Transferring the cable connection (upper

door)

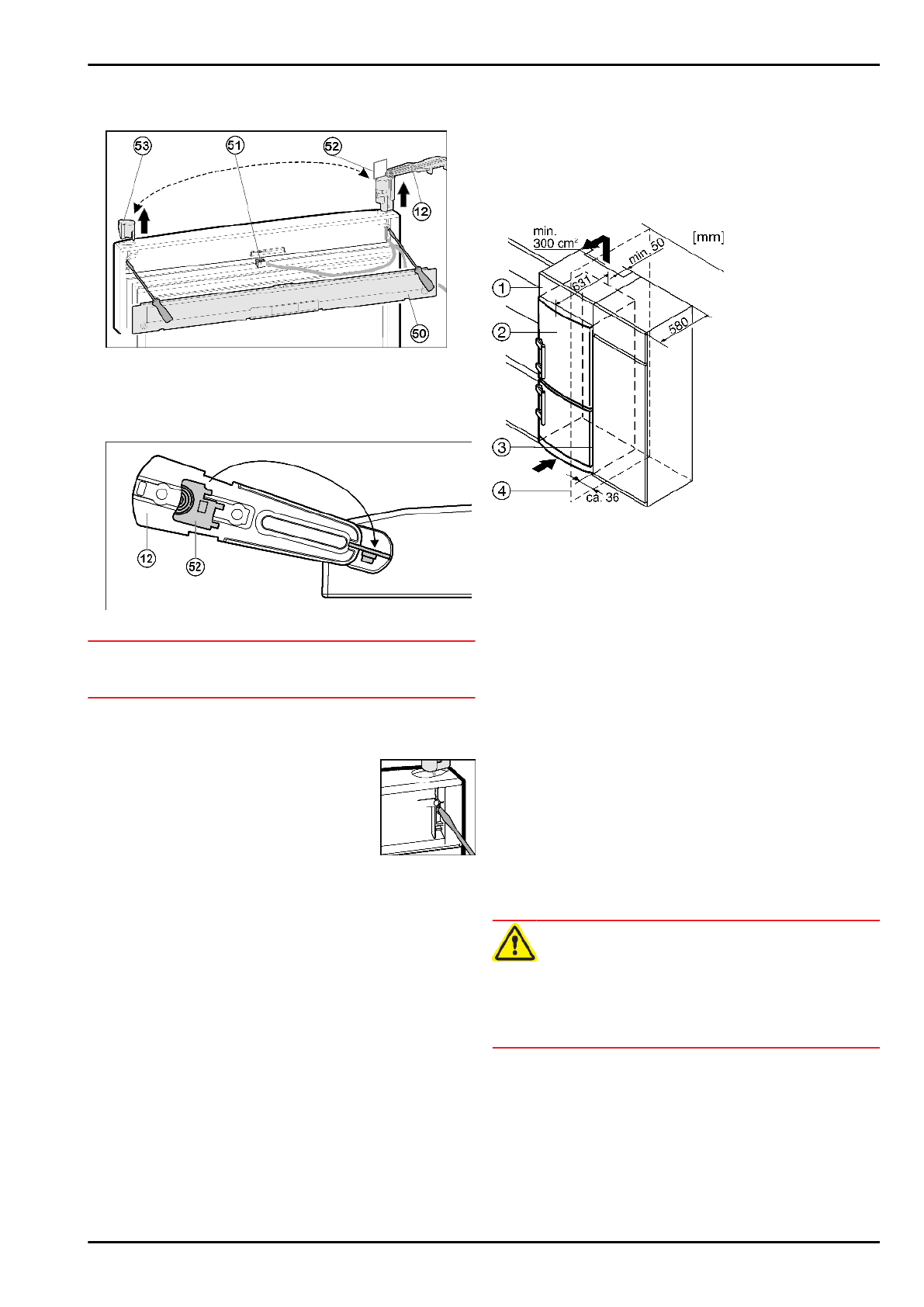

Fig. 9

u

Using a screwdriver, remove the cover

 Fig. 9 (50) on the door.

u

Disconnect the plug connector

 Fig. 9 (51).

u

At the upper door, rotate the turn hinge

 Fig. 9 (12) in an out-

ward direction, parallel to the door edge.

Fig. 10

ATTENTION

Cables may be twisted and damaged as a result!

u

Use the template.

u

Detach the supplied template

 Fig. 10 (52) from the turn hinge

and use it to prevent the turn hinge

 Fig. 10 (12) and bush from

turning.

u

Using  a  screwdriver,  push  out  the  turn

hinge

  Fig.  9  (12)  from  underneath  and  re-

move it from the door complete with cable.

u

Using  a  screwdriver,  push  out  the  stopper

Fig. 9 (53) from underneath and transfer it to

the opposite side.

u

Feed in the cable of the turn hinge

 Fig. 9 (12) at the opposite

side and insert turn hinge.

u

Remove the template

 Fig. 9 (52) and fasten it in the turn hinge.

u

Plug in the plug

 Fig. 9 (51).

u

Place the cable in the guide.

u

Engage the cover

 Fig. 9 (50) on the door.

4.1.9 Fitting the upper door

u

Place  the  upper  door  on  the  middle  bearing  pin

  Fig.  6  (21),

close the door and attach the upper turn hinge

 Fig. 5 (12) so

that it engages with the upper side of the appliance.

u

Screw down the turn hinge

 Fig. 5 (12). Possibly make prelimi-

nary holes with a bradawl or use a cordless screwdriver.

u

Snap on the cover

 Fig. 5 (10) and cover Fig. 5 (13).

u

Re-connect the plug connector

 Fig. 4 (5).

u

Place the cable in the guide.

u

Re-fit the cover

 Fig. 4 (3).

u

Turn  the  cover

  Fig.  4  (2)180°,  attach  and  engage  it  on  the

hinge side.

u

Turn  the  cover

  Fig.  4  (1)  180°,  attach  and  engage  it  on  the

handle side.

4.1.10 Aligning the doors

u

If necessary, align the doors to the appliance housing by way

of the two oblong holes in the lower turn hinge

 Fig. 7 (33) and

middle turn hinge

 Fig. 6 (22), then tighten the screws.

u

Engage the cover

 Fig. 7 (31) on the lower turn hinge.

4.2 Insertion into a row of kitchen units

Fig. 11

(1) Stack cabinet

(3) Kitchen cabinet

(2) Appliance

(4) Wall

The appliance can be inserted into the kitchen units. To match the

appliance

 Fig. 11 (2) to the height of the row of units, a suitable

stack cabinet

 Fig. 11 (1) can be fitted above the appliance.

For use with standard kitchen cabinets (max. depth 580 mm) the

appliance  can  be  installed  directly  next  to  the kitchen  cabinet

Fig.  11  (3).  The  appliance  door  projects  34  mmlaterally  and

50 mm in the middle of the appliance relative to the front of the

kitchen cabinet. It can be opened and closed perfectly as a result.

Important for the ventilation:

-

At the back of the stack cabinet there has to be a ventilation

duct of at least 50 mm depth throughout the width of the stack

cabinet.

-

The  ventilation  cross  section  under  the  ceiling  has  to  be  at

least 300 cm

2

.

-

The larger the ventilation gap, the greater the energy-saving

benefit in operation of the appliance.

If  the  appliance  is  installed  with  the  hinges  next  to  a  wall

Fig. 11 (4), the distance between appliance and wall has to be at

least  36  mm.  This  corresponds  to  the  projection  of  the  handle

when the door is open.

4.3 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect trans-

port!

u

Transport the appliance in a packed condition.

u

Transport the appliance upright.

u

Do not transport the appliance without assistance.

4.4 Installing the appliance

In the event that the appliance is damaged, contact the supplier

immediately before connecting to the mains.
The floor of the installation site must be level and smooth.
Do not install the appliance in a location where it is exposed to

direct radiation of the sun, next to a cooker, heater and similar.
Always install the appliance directly against the wall.
Do not install the appliance without assistance.
