u

Lift and remove the door complete with turn hinge

 Fig. 5 (12)

and cable. For release, possibly use a flat-blade screwdriver

to apply lever action under the turn hinge.

u

Set the door aside.

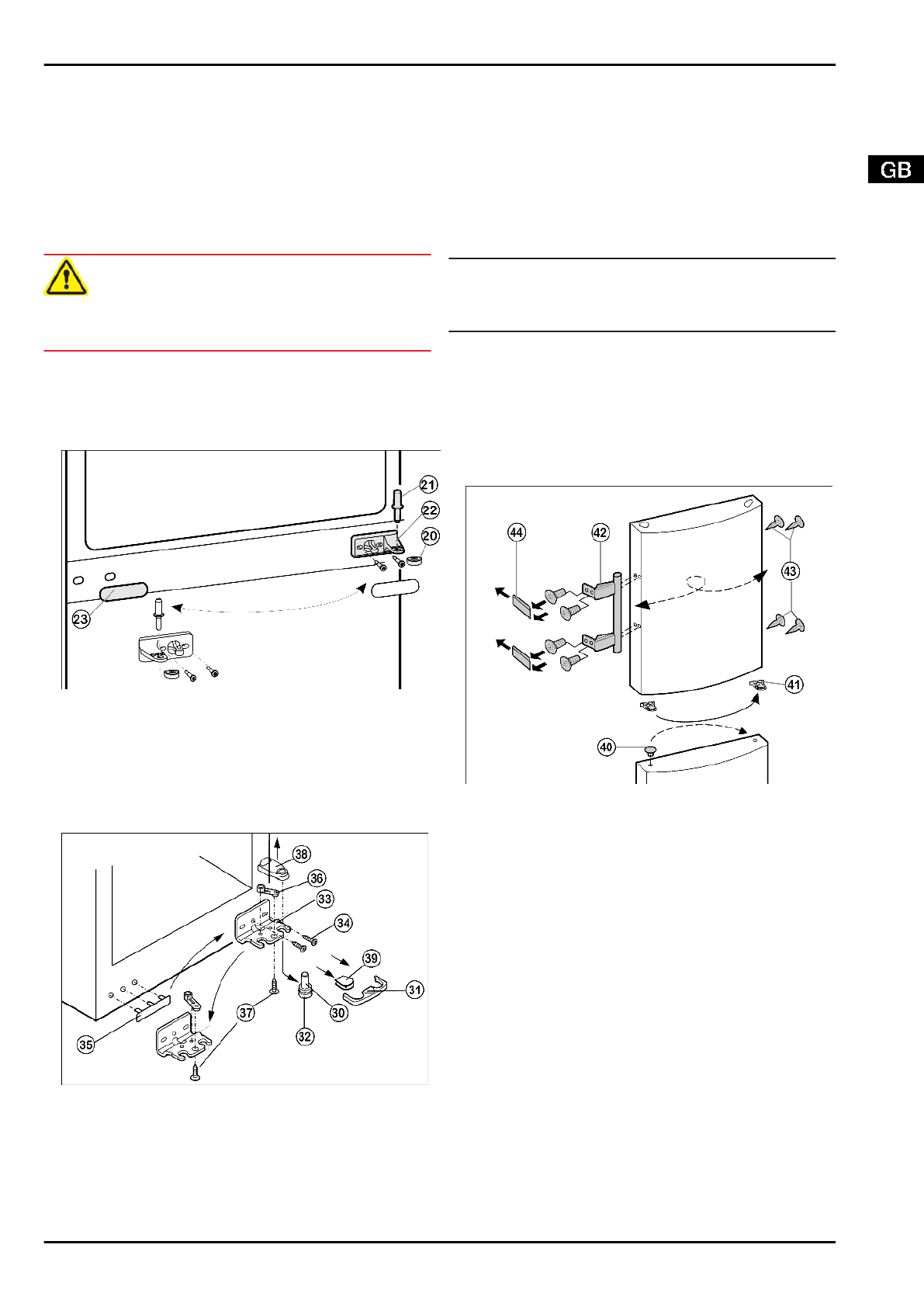

4.1.3 Detaching the lower door

u

Close the lower door.

u

Draw the middle bearing pin

 Fig. 6 (21) out of the turn hinge

and lower door.

u

Remove the plastic cap

 Fig. 6 (20).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Open the door.

u

Detach the middle turn hinge

 Fig. 6 (22).

u

Lift off the lower door and set it aside.

4.1.4 Transferring the middle bearing elements

Fig. 6

u

Carefully detach the cover panel

 Fig. 6 (23).

u

Turn the middle turn hinge

 Fig. 6 (22) 180° and transfer it to

the new hinge side.

u

Snap the cover panel

 Fig. 6 (23) into place on the new handle

side.

4.1.5 Transferring the lower bearing elements

Fig. 7

u

Pull off the lower cover

 Fig. 7 (31) forwards.

u

Remove lower cover

 Fig. 7 (39).*

u

Raise the cover

 Fig. 7 (38) for removal.*

u

Turn the adjustable-height foot

 Fig. 7 (32) all the way in.

u

If necessary, tip the appliance back a little with the assistance

of a second person for removal of the bearing pin.

u

Pull out the bearing pin

 Fig. 7 (32) downwards and forwards.

In so doing, pay attention to the hinge bush

 Fig. 7 (30).

u

Unscrew the turn hinge

 Fig. 7 (33)(2 Torx 25) Fig. 7 (34).

u

Unscrew  the  bearing  part

  Fig.  7  (36)(1  Torx  25),  Fig.  7  (37)

transfer it to the opposite hole in the turn hinge and screw it

down again.

u

Carefully lift off and transfer the cover

 Fig. 7 (35) on the handle

side.

u

Screw down the turn hinge

 Fig. 7 (33) on the new hinge side,

possibly  with  the  aid  of  a  cordless  screwdriver,  through  the

outer oblong hole and round hole.

Note

u

If necessary, e.g. to make up for any unevenness in the floor,

the second oblong hole can be used instead of the round hole

for the screw fitting.

u

Tip the appliance back a little again and transfer the bearing

pin

 Fig. 7 (32).

4.1.6 Transferring the handles

u

Disengage the spring clip

 Fig. 8 (41) from the upper door and

transfer it to the new hinge side.

u

Lift thestopper

 Fig. 8 (40) out of the lower door bearing bush

and transfer it.

Fig. 8

u

Detach the door handles

 Fig. 8 (42), stoppers Fig. 8 (43) and

pressure plates

 Fig. 8 (44) and transfer to the opposite side.

u

When fitting the pressure plates at the opposite side, pay at-

tention that they engage properly.

4.1.7 Fitting the lower door

u

Place the door from above onto the bearing pin

 Fig. 7 (32).

u

Close the door.

u

Insert  middle  bearing  pin

  Fig.  6  (21)  through  middle  turn

hinge

 Fig. 6 (22) into the lower door.

u

Attach plastic cap

 Fig. 6 (20).
