2.3

Symbols in Text

This symbol refers to a chapter in this

instruction manual.

3

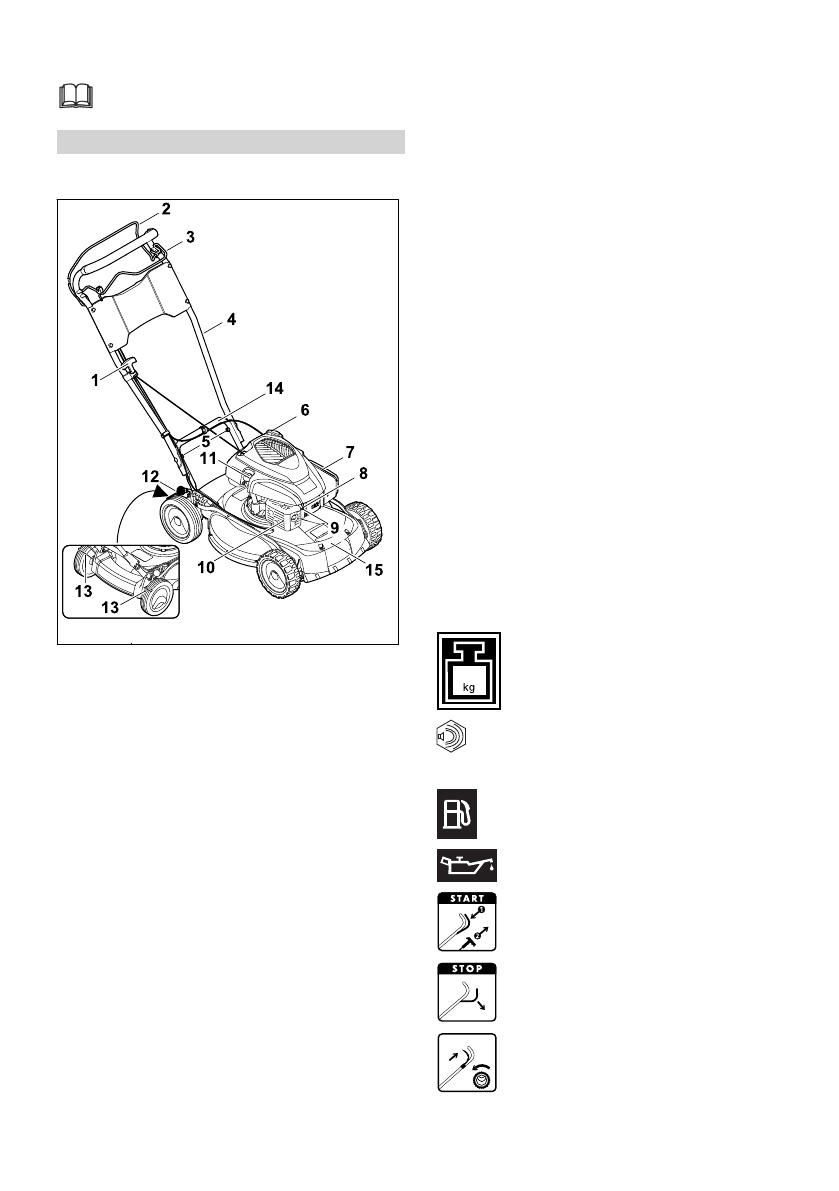

Overview

3.1

Lawn Mower

1 Starter handle

The starter handle is used to start the engine.

2 Control bar for mowing

The control bar for mowing is used to start

and stop the engine.

3 Control bar for self-propulsion

The control bar for self-propulsion engages

and disengages self-propulsion.

4 Handlebar

The handlebar is used to hold, guide and

transport the lawn mower.

5 Handlebar screw fastening

The handlebar screw fastening secures the

handlebar to the lawn mower.

6 Fuel tank cap

The fuel tank cap seals the opening for add‐

ing petrol.

7 Filter cover

The filter cover provides protection for the air

filter.

8 Spark plug socket

The spark plug socket connects the ignition

lead to the spark plug.

9 Spark plug

The spark plug ignites the fuel/air mixture in

the engine.

10 Muffler

The muffler reduces the lawn mower's noise

level.

11 Engine oil cap

The engine oil cap seals the opening for add‐

ing engine oil.

12 Lever

The lever is used to set the cutting height.

13 Wheel scraper

The wheel scraper is used to clean the rear

wheels.

14 Rear transport handle

The transport handle is used to transport the

lawn mower.

15 Front transport handle

The transport handle is used to transport the

lawn mower.

3.2

Symbols

The symbols can be on the lawn mower and

have the following meaning:

XX

This symbol indicates the lawn mower

weight.

L

WA

Guaranteed sound power level in

accordance with Directive 2000/14/EC

in dB(A) for the purpose of comparing

the sound emissions of products.
This symbol identifies the fuel tank

cap.

This symbol identifies the engine oil

cap.
Start the engine.

Stop the engine.

Engage self-propulsion.
