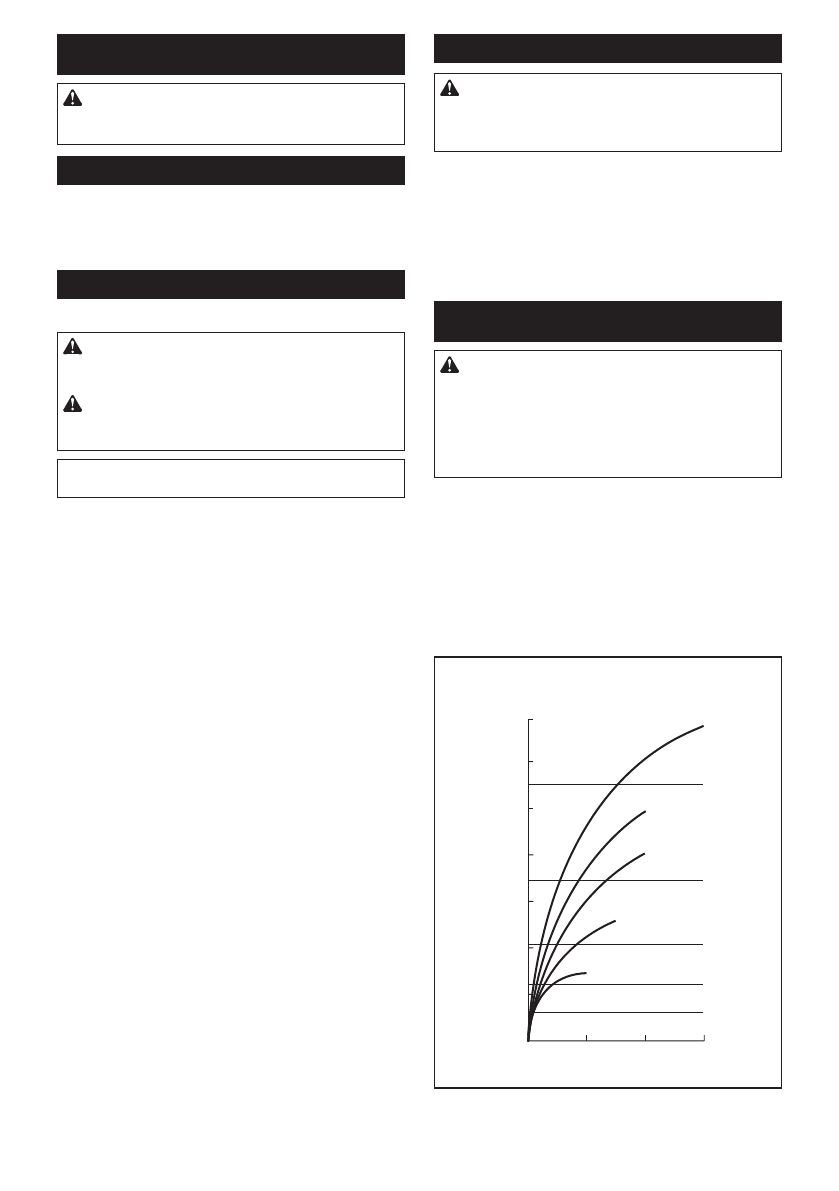

8 ENGLISH

ASSEMBLY

CAUTION:

Always be sure that the tool is

switched off and the battery cartridge is removed

before carrying out any work on the tool.

Selecting correct impact socket

Always use the correct size impact socket for bolts and

nuts. An incorrect size impact socket will result in inac-

curate and inconsistent fastening torque and/or damage

to the bolt or nut.

Installing or removing impact socket

Optional accessory

CAUTION:

Make sure that the impact socket

and the mounting portion are not damaged before

installing the impact socket.

CAUTION:

After inserting the impact socket,

make sure that it is firmly secured. If it comes out,

do not use it.

NOTE:

 The way of impact socket installation varies

depending on the type of the square drive on the tool.

Tool with the ring spring

For impact socket without O-ring and pin

►

Fig.8:

1.

 Impact socket

2.

 Square drive

3.

 Ring

spring

Push the impact socket onto the square drive until it

locks into place.

To remove the impact socket, simply pull it off.

For impact socket with O-ring and pin

►

Fig.9:

1.

 Impact socket

2.

 O-ring

3.

 Pin

Move the O-ring out of the groove in the impact socket

and remove the pin from the impact socket. Fit the

impact socket onto the square drive so that the hole in

the impact socket is aligned with the hole in the square

drive.

Insert the pin through the hole in the impact socket and

square drive. Then return the O-ring to the original posi-

tion in the impact socket groove to retain the pin.
To remove the impact socket, follow the installation

procedures in reverse.

Tool with the detent pin

►

Fig.10:

1.

 Impact socket

2.

 Hole

3.

 Square drive

4.

 Detent pin

Align the hole in the side of the impact socket with the

detent pin on the square drive and push the impact

socket onto the square drive until it locks into place. Tap

it lightly if required.
To remove the impact socket, simply pull it off. If it is

hard to remove, depress the detent pin while pulling the

impact socket.

Installing hook

CAUTION:

When installing the hook, always

secure it with the screw firmly.

 If not, the hook

may come off from the tool and result in the personal

injury.

►

Fig.11:

1.

 Groove

2.

 Hook

3.

 Screw

The hook is convenient for temporarily hanging the tool.

This can be installed on either side of the tool. To install

the hook, insert it into a groove in the tool housing on

either side and then secure it with a screw. To remove,

loosen the screw and then take it out.

OPERATION

CAUTION:

Always insert the battery cartridge

all the way until it locks in place.

 If you can see the

red indicator on the upper side of the button, it is not

locked completely. Insert it fully until the red indicator

cannot be seen. If not, it may accidentally fall out of

the tool, causing injury to you or someone around

you.

►

Fig.12

Hold the tool firmly and place the impact socket over

the bolt or nut. Turn the tool on and fasten for the proper

fastening time.

The proper fastening torque may differ depending upon

the kind or size of the bolt, the material of the workpiece

to be fastened, etc. The relation between fastening

torque and fastening time is shown in the figures.

Proper fastening torque for standard bolt

N•m

(kgf•cm)

2

1

2

1

3

0

100

(1020)

120

(1224)

80

(816)

60

(612)

40

(408)

20

(204)

M12

M14

M10

M12

M14

M10

M8

M8

140

(1430)

M16

M16

1.

 Fastening time (second)

2.

 Fastening torque
