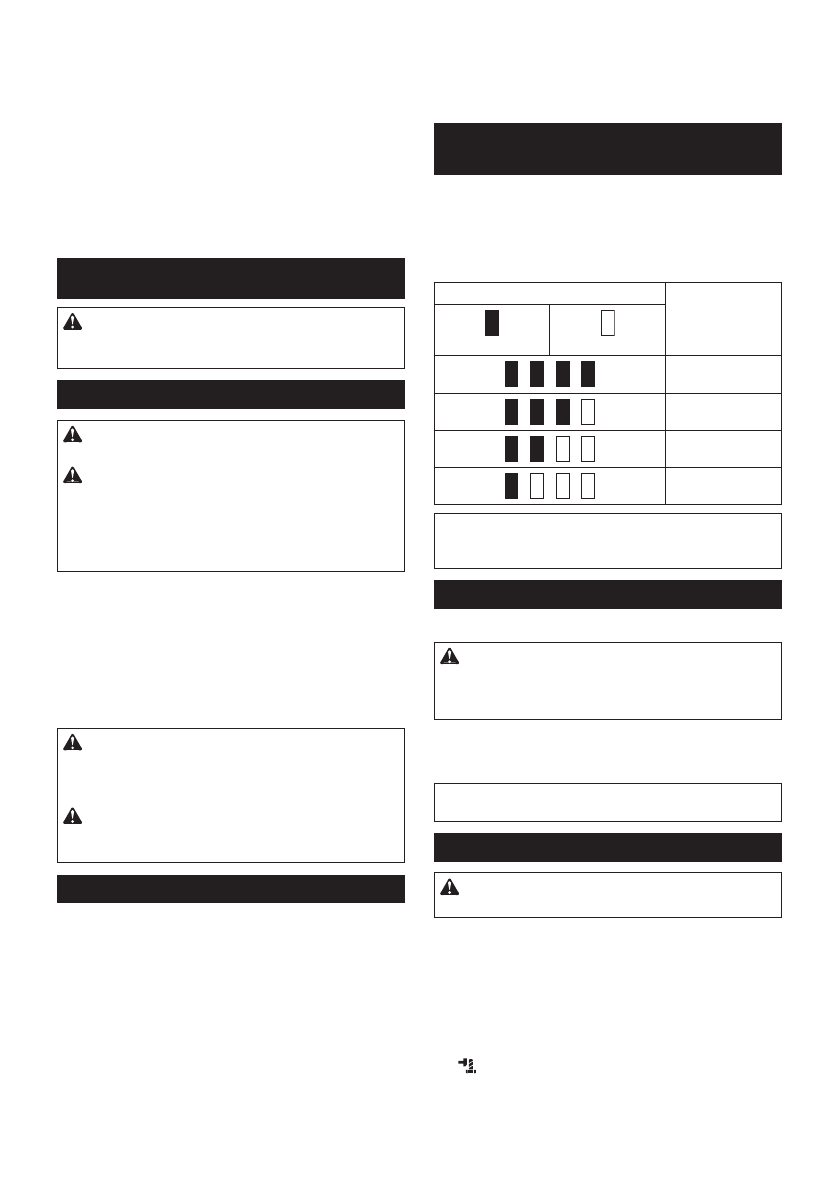

6 ENGLISH

Tips for maintaining maximum

battery life

1.

Charge the battery cartridge before completely dis-

charged. Always stop tool operation and charge the

battery cartridge when you notice less tool power.

2.

Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

3.

Charge the battery cartridge with room tempera-

ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot

battery cartridge cool down before charging it.

FUNCTIONAL DESCRIPTION

CAUTION:

Always be sure that the tool is

switched off and the battery cartridge is removed

before adjusting or checking function on the tool.

Installing or removing battery cartridge

CAUTION:

Always switch off the tool before

installing or removing of the battery cartridge.

CAUTION:

Hold the tool and the battery car-

tridge firmly when installing or removing battery

cartridge.

 Failure to hold the tool and the battery

cartridge firmly may cause them to slip off your hands

and result in damage to the tool and battery cartridge

and a personal injury.

►

Fig.1:

1.

 Red indicator

2.

 Button

3.

 Battery cartridge

To remove the battery cartridge, slide it from the tool

while sliding the button on the front of the cartridge.

To install the battery cartridge, align the tongue on the

battery cartridge with the groove in the housing and slip

it into place. Insert it all the way until it locks in place

with a little click. If you can see the red indicator on the

upper side of the button, it is not locked completely.

CAUTION:

Always install the battery cartridge

fully until the red indicator cannot be seen.

 If not,

it may accidentally fall out of the tool, causing injury to

you or someone around you.

CAUTION:

Do not install the battery cartridge

forcibly.

 If the cartridge does not slide in easily, it is

not being inserted correctly.

Battery protection system

The tool is equipped with a battery protection system.

This system automatically cuts off power to the motor to

extend battery life.

The tool will automatically stop during operation if the tool and/

or battery are placed under one of the following conditions:

Overloaded:

The tool is operated in a manner that causes it to draw

an abnormally high current.

In this situation, turn the tool off and stop the application that caused

the tool to become overloaded. Then turn the tool on to restart.

If the tool does not start, the battery is overheated. In

this situation, let the battery cool before turning the tool

on again.

Low battery voltage:

The remaining battery capacity is too low and the tool

will not operate. If you turn the tool on, the motor runs

again but stops soon. In this situation, remove and

recharge the battery.

Indicating the remaining battery

capacity

Only for battery cartridges with the indicator

►

Fig.2:

1.

 Indicator lamps

2.

 Check button

Press the check button on the battery cartridge to indi

-

cate the remaining battery capacity. The indicator lamps

light up for a few seconds.

Indicator lamps

Remaining

capacity

Lighted

Off

75% to 100%

50% to 75%

25% to 50%

0% to 25%

NOTE:

 Depending on the conditions of use and the

ambient temperature, the indication may differ slightly

from the actual capacity.

Switch action

►

Fig.3:

1.

 Switch trigger

CAUTION:

Before installing the battery car-

tridge into the tool, always check to see that the

switch trigger actuates properly and returns to

the "OFF" position when released.

To start the tool, simply pull the switch trigger. Tool

speed is increased by increasing pressure on the switch

trigger. Release the switch trigger to stop.

NOTE:

 The tool automatically stops if you keep pull

-

ing the switch trigger for about 6 minutes.

Lighting up the front lamp

CAUTION:

Do not look in the light or see the

source of light directly.

►

Fig.4:

1.

 Lamp

►

Fig.5:

1.

 Button

Pull the switch trigger to turn on the lamp. To turn off,

release it. The lamp goes out approximately 10 seconds

after releasing the switch trigger.
To keep the lamp off, turn off the lamp status. First pull

and release the switch trigger. And then press the but-
ton

 for one second within 10 seconds.

To turn on the lamp status again, press the button again

similarly.
