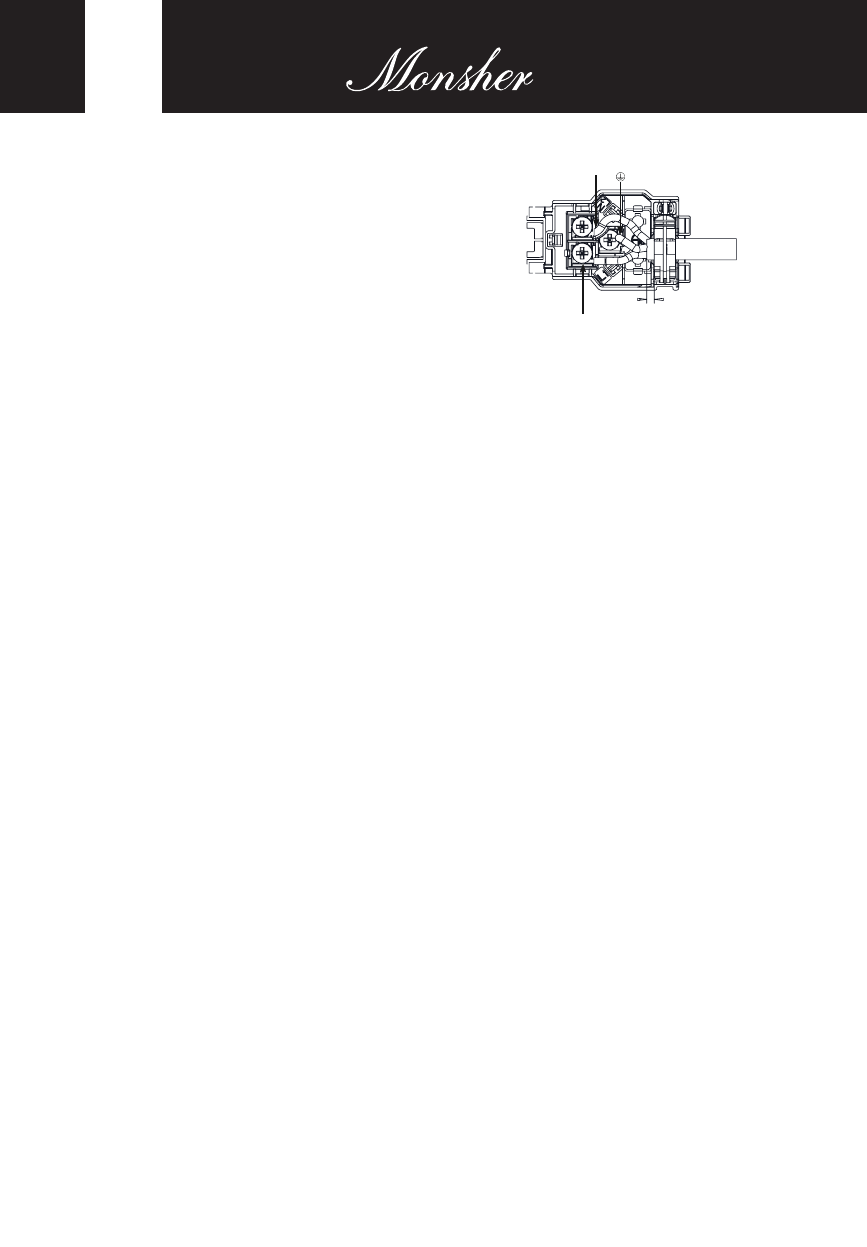

Grounding cable = E

Green - Yellow

Neutral cable  =  N

Blue

Phase cable  =   L

 Brown

N E

L

INSTALLING BELOW COUNTER (FIGURE 2)

;

The cabinet should be in compliance with the dimensions mentioned in figure 2.

;

You need to unload the rear compartment of the cabinet in the dimensions men-
tioned in figure 2 for necessary ventilation.

INSTALLING INTO A TALL CABINET (FIGURE 3)

;

The cabinet should be in compliance with the dimensions mentioned in figure 3.

;

You need to unload the rear compartment of the cabinet in the dimensions men-
tioned in the figure for necessary ventilation.

;

Moreover, if there is a back panel in the tall cabinet, it should also be removed.

VENTILATION (FIGURE 4)

In order for you to get better efficiency from your oven, there should be adequate

cold air intake. Leave suitable spaces according to the dimensions mentioned in Figure 4.

INSTALLING ON THE CORNER  (FIGURE 5)

;

The installation should be in compliance with the specified dimensions to perform
the installation mentioned in Figure 5 and to be able to open the appliance door.

FIXING THE APPLIANCE (FIGURE 6)

;

Center the appliance and push it completely into the furniture.

;

Power cable should not be bent under the oven and between the oven and the
furniture.

;

Open the appliance door.

;

Fix the appliance with the screws provided along with it.

;

Screw the appliance into the holes, which are shown in figure 6.

;

Make sure that the oven is fixed. Otherwise, there is a risk of tilting during use.
