3

En

Caution: Unplug the subwoofer and other
audio/video components before making
connections.

To connect to an amplifier (or AV receiver), connect the
SUBWOOFER terminal on the rear of the amplifier (or AV
receiver) to the INPUT terminal of the subwoofer.

After all connections are completed, plug the subwoofer
and other audio/video components into AC outlets.

Before using the subwoofer, adjust the subwoofer to obtain
the optimum volume balance between the subwoofer and
the front speakers by following the procedure described
below.

1

Set the

VOLUME

 control to minimum (0).

2

Turn on the power of all the other components.

3

Make sure that the

POWER

 switch is set to the ON

position.
* The Power indicator lights up in green.

4

Play a source containing low-frequency components
and adjust the amplifier’s volume control to the desired
listening level.

5

Increase the volume gradually to adjust the volume
balance between the subwoofer and the front speakers.
To enjoy natural bass sound, keep the subwoofer
volume at a level where it is barely distinguishable
from other speakers.

6

Adjust the volume of the entire sound system using the
amplifier's volume control.

Note

It is recommended to set the VOLUME control about in
the middle position when using in a multi channel home
theater system.

This subwoofer’s frequency characteristic

*  This diagram does not depict actual frequency response

characteristics.

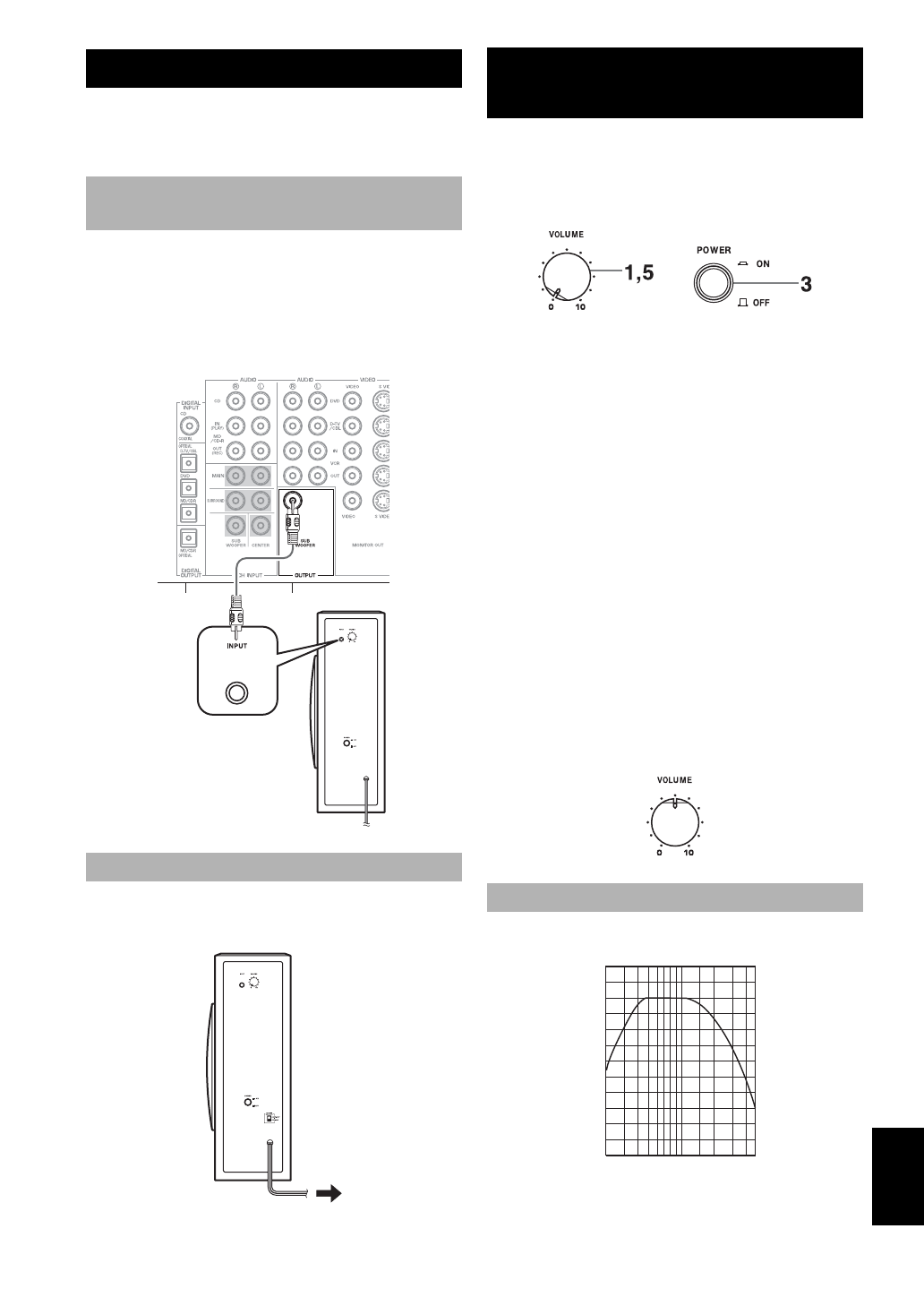

CONNECTIONS

Connecting to line output (pin jack)

terminals of the amplifier

Plug in the subwoofer to the AC outlet

Amplifier (The rear panel of various

amplifiers may differ in appearance.)

To AC outlet

ADJUSTING THE

SUBWOOFER BEFORE USE

Frequency characteristic

20

50

100

200

500 Hz

40

50

60

70

80

90

100 dB
