4

 En

Connecting the speakers

Caution:

 Make sure the power cables for your other AV components are disconnected from the AC wall outlets

before making any connections.

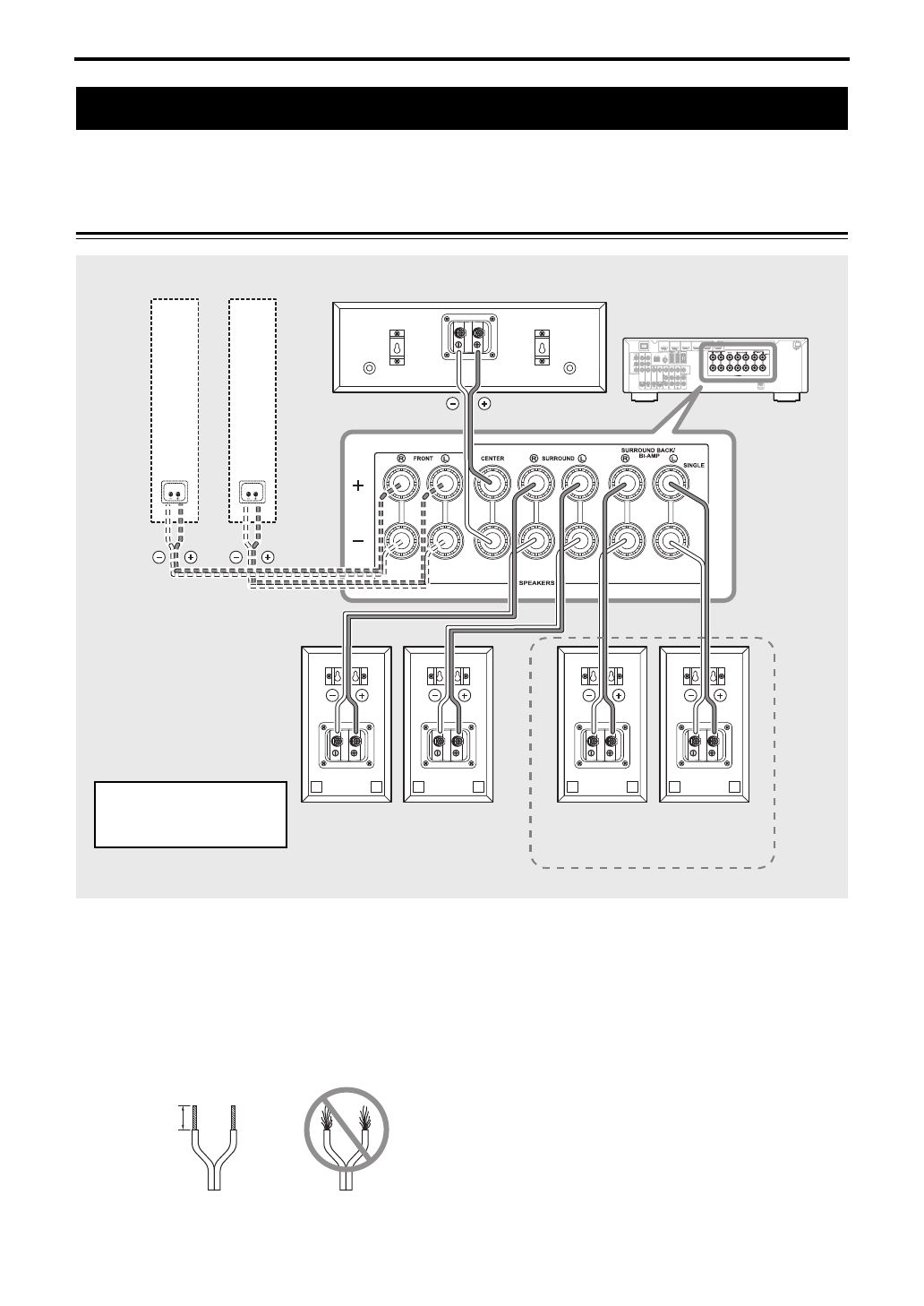

Connection diagram

■

Preparing the speaker cables

Once you’ve positioned the speakers, you’ll need to
prepare the speaker cables for connecting the
speakers.

1

Remove about 15 mm (5/8") of insulation from
the end of each speaker cable.

2

Twist the bare wires tightly.

Notes

• Do not bundle or roll up excess cable.
• Twist the bare wires tightly so the individual strands

are not splayed.

• Be careful not to injure yourself while preparing the

speaker cables.

Connecting the speakers

Center speaker

Amplifier

Front speakers

Right

Left

Note: The exact layout of
the speaker terminals
depends on your amplifier.

Surround speakers

Right

Left

Surround back speakers

(NS-PA150 only)

Right

Left

Good

No Good

15 mm (5/8")
