www.jbl.com

ENGLISH

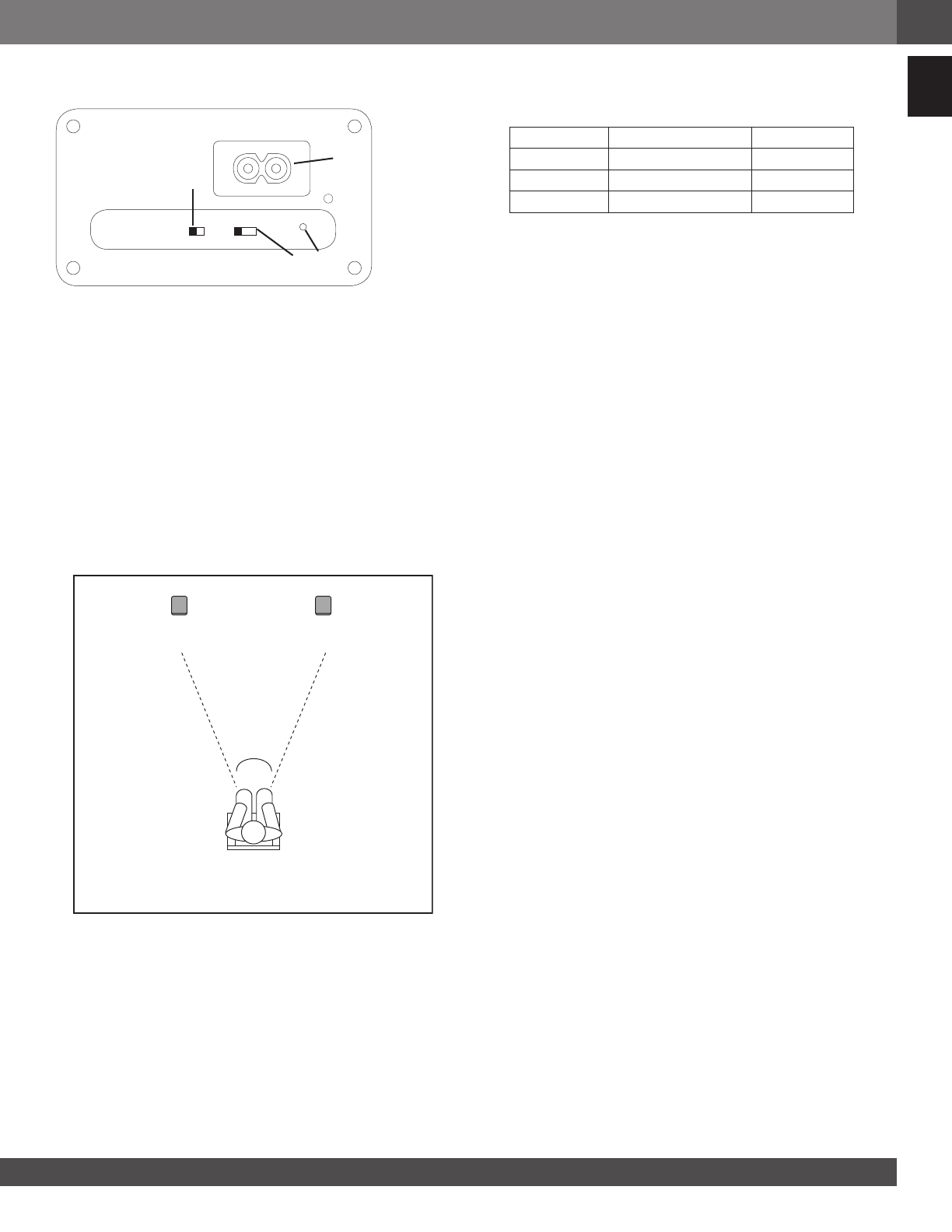

SECONDARY SPEAKER

AC IN

L/R/L+R

WALL/OTHER

1

2

3 4

1. AC input connector
2. Boundary compensation switch
    a. Wall: Speaker equalization optimized for wall mounting.
    b. Other: Speaker equalization optimized for other placement

      conditions

3. Left / Right / Left + Right switch
    a. Left: Speaker reproduces left channel information only
    b. Right: Speaker reproduces right channel information only
    c. Left + Right: Mono configuration speaker reproduces left and

      right channels information

4. Association pin hole

PLACING THE SPEAKERS

These speakers can be mounted or placed on a stand, shelf or table.

The following figure shows a possible indoor application. For optimal

performance, do not block the rear port on the back of each speaker.

Left Rear

Channel

Right Rear

Channel

Center Rear

Channel

Left Front

Channel

Right Front

Channel

45

o

QUICK SETUP AND OPERATION

The speaker set is already factory setup to operate as a pair (primary

and secondary).
1. Connect AC power cords to AC-IN plug located at the rear of each

speaker. Keep AC plugged to maintain battery fully charged.

2. Press power button on each speaker(s) to start operation.
3. Press Bluetooth button and pair with streaming device. (Refer to

Listening to Audio from a Bluetooth capable device section below)

4. If desired to use in battery mode, just unplug the AC power. Speaker

and audio will not be interrupted. Reconnect to AC to recharge

battery.

Note:

 Primary and Secondary speakers’ factory default settings are as

follow

Control / Switch

Primary

Secondary

Mode

(P)

N/A

Wall/ Other

Other

Other

L/R/L+R

(L)

(R)

Note:

 When the system is not playing music it will go automatically

into auto standby mode. To reactivate the system, simply start

playing music and the system will resume automatically. A slight

delay may occur before the secondary speaker wakes up as it needs

resynchronization with the primary speaker. During this phase the front

LED of the secondary speaker will be blinking.

Note:

 If the system is manually powered off using the power button, it

will need to be manually powered on first to resume playing music.

The system also features sound prompt commands for the following

action / operation

1. Power On
2. Power Off
3. Bluetooth pairing mode
4. Bluetooth connection success
5. Association mode (see Speaker association section)
6. Battery low level

LISTENING TO AUDIO FROM A BLUETOOTH-
CAPABLE DEVICE

1. With speaker(s) powered on AC or Battery power, Press Bluetooth

button on primary speaker

2. An audible prompt will indicate that the speaker successfully

entered BT pairing mode. The front LED will also blink Blue as an

indication that BT pairing mode is enabled.

3. Search and pair with “JBL Control X” from your Bluetooth streaming

device.

4. An audible confirmation will be played once the streaming device

successfully paired with the speaker. The front LED will stop blinking

and remain Blue. Secondary speaker will confirm Bluetooth pairing

by flashing front panel LED Blue for a few seconds.

Note:

 Only one Bluetooth device can be paired at the same time with

the system. If you need to un-pair the current Bluetooth device to

connect a new one simply press and hold the Bluetooth button on the

primary speaker for more than 2 seconds to disconnect current device.

Then resume the pairing process above from step 2.

LISTENING TO AUDIO FROM AUX-IN

Bluetooth operation has priority over Aux-In input. If you want to

use the auxiliary in input, any paired Bluetooth device need to be

disconnected or unpaired from JBL control X Wireless by pressing

and holding the Bluetooth button for more than 2 seconds or by

disconnecting it from your Bluetooth streaming device.
1. With speaker(s) powered on AC or Battery power, connect a 3.5mm

audio cable from the audio source to the AUX-IN on the primary speaker.

SPEAKER ASSOCIATION

JBL Control X Wireless speakers are factory associated to each other. In case

of association problems were the secondary speaker is not playing music,

please follow association steps on detailed section below to fix the issue. Only

one secondary speaker can be associated at the time with a primary speaker.
1. With both primary and secondary speaker(s) powered on AC or Battery

power, use a paper clip to press the association button on the back of the

secondary speaker. The front LED will flash white indicating association

mode is active
