26

Using the tubes and discharge holes on walls with smaller dimensions will cause a

diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

!

Use a duct of the minimum indispensable length.

!

Use a duct with as few elbows as possible (maximum elbow angle: 90°).

!

Avoid drastic changes in the duct cross-section.

 Filtration version

The aspirated air will be degreased and deodorised before being fed back into the
room.
In order to use the hood in this version, you have to install a system of additional
filtering based on activated charcoal.


Installation

The minimum distance between the supporting surface for the cooking equipment on
the hob and the lowest part of the range hood must be not less than 50cm from electric
cookers and 65cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this must be
adhered to.

  Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated
inside the hood. If provided with a plug connect the hood to a socket in compliance with
current regulations and positioned in an accessible area, after installation. If it not fitted
with a plug (direct mains connection) or if the plug is not located in an accessible area,
after installation,  apply a double pole switch in accordance with standards which
assures the complete disconnection of the mains under conditions relating to over-
current category III, in accordance with installation instructions.


WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient
function, always check that the mains cable is correctly assembled.
The hood is provided with a special power cable ; if the cable is damaged, request a
new one from Technical Service.

Mounting

Before beginning installation:

•

Check that the product purchased is of a suitable size for the chosen installation
area.

•

Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these
is/are to be mounted only if you want lo use the hood in the filtering version.

•  Check (for transport reasons) that there is no other supplied material inside the

hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them
and keeping them.


Expansion wall plugs are provided to secure the hood to most types of walls/ceilings.
However, a qualified technician must verify suitability of the materials in accordance
with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight
of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Note:

 The parts marked with the symbol "(*)" are optional accessories supplied only

with some models or otherwise not supplied, but available for purchase.

Maintenance

Cleaning

Clean using

ONLY

 the cloth dampened with neutral liquid detergent.

DO NOT CLEAN

WITH TOOLS OR INSTRUMENTS

. Do not use abrasive products.

DO NOT USE

ALCOHOL!

Always wear work gloves for all maintenance operations.

Grease filter

Fig. 14-32
Traps cooking grease particles.

The grease filter

 must be cleaned once a month using non aggressive detergents,

either by hand or in the dishwasher, which must be set to a low temperature and a short
cycle.  When washed in a dishwasher, the grease filter may discolor slightly, but this
does not affect its filtering capacity.
To remove the grease filter, pull the spring release handle.

Charcoal filter (Optional)

Fig. 31
It absorbs unpleasant odors caused by cooking.

The charcoal filter can be washed once every two months (or when the filter saturation
indication system – if envisaged on the model in possession – indicates this necessity)
using hot water and a suitable detergent, or in a dishwasher at 65°C (if the dishwasher
is used, select the full cycle function and leave dishes out).
Eliminate excess water without damaging the filter, then remove the mattress located
inside the plastic frame and put it in the oven for 10 minutes at 100° C to dry
completely. Replace the mattress every 3 years and when the cloth is damaged.

Remove the filter holder frame by turning the knobs (

g

) 90° that affix the chimney to the

cooker hood.
Insert the pad

(i)

of activated carbon into the frame

(h)

 and fit the whole back into its

housing

(j)

.

It is possible to use a traditional carbon filter,  neither washable nor regenerable, to be
replaced every 3 - 4 months.
The filter holder frame of the carbon filter is welded together; the eventual frame
supplied with the hood is not, therefore, to be used.
Insert it into its housing and fix it turning the 2 plastic knobs.


Buying charcoal filters

The Charcoal filter can be bought at Samsung Service Website and Service Center.
Please refer to the last page of manual.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.
The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the
traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.



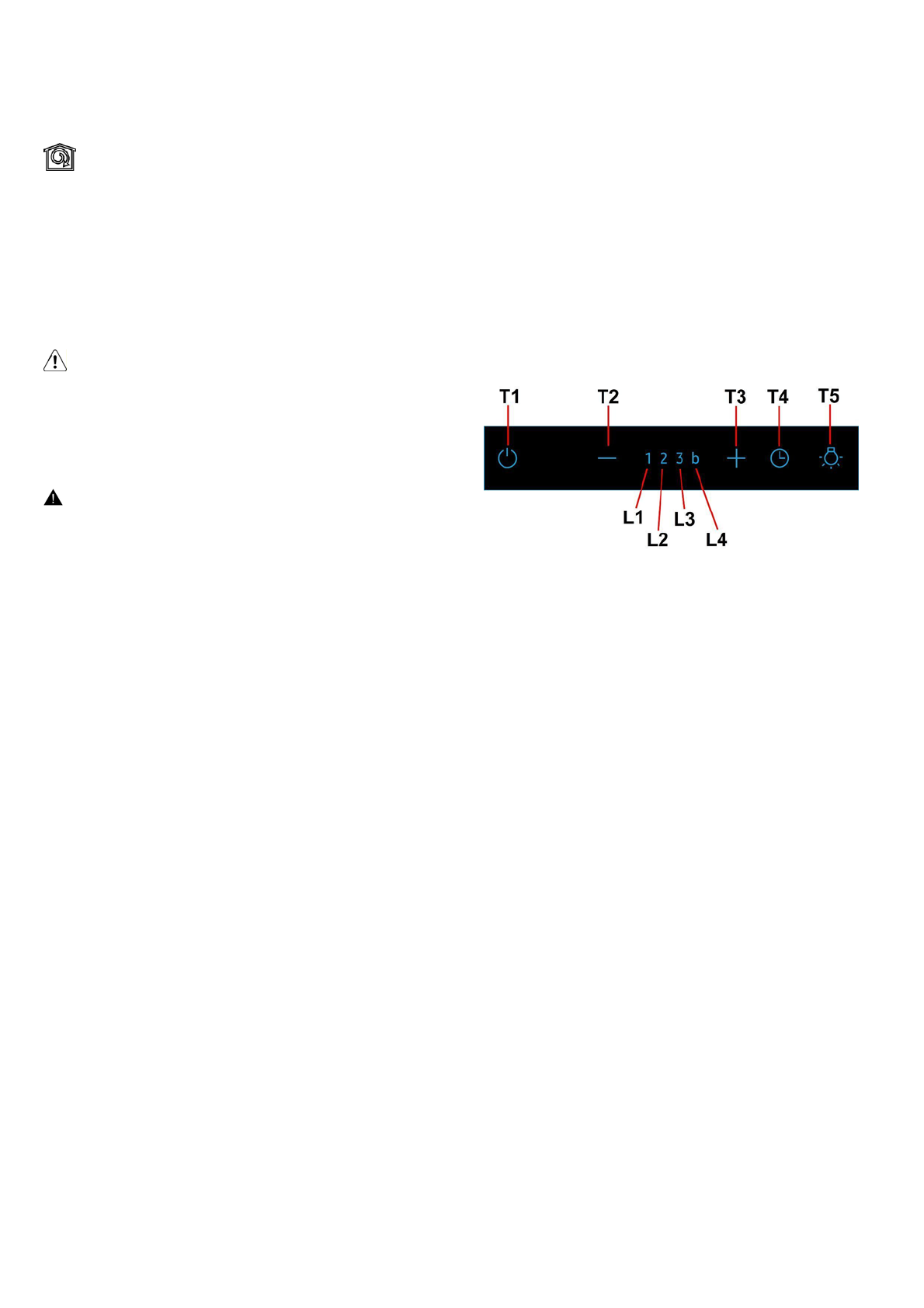

Operation

T1.  ON/OFF Suction motor:


When hood is on, it switches off at any speed by pressing button

T1

.

When the hood is off, it switches on at Speed 1 by pressing button

T1

.


T2. Speed decrease

 Press

"T2"

 button to decrease the speed from 4 (Boost) to  1.

T3. Speed increase

Press the button (hood is ON) to increase the the speed of the motor from speed 1

to the Boost speed (timed).

Speed 1 LED

L1

Speed 2 LED

L2

Speed 3 LED

L3

Boost (timed) LED

L4

flashing

 Note:

 Speed 4 (Boost timed) remains activated for 5 minutes, after which the hood

sets speed 2 automatically

T4. Speed timing

Speed timing is activated by pressing

T4

button, when timing is up the hood

switches off.

Timing is divided as follows:

Speed 1 - 20 minutes (LED

L1

)

Speed 2 - 15 minutes (LED

L2

)

Speed 3 - 10 minutes (LED

L3

 )

Boost - 5 minuts (LED

L4

 flashing)

During timed operation press

T2

 button and the hood quits the timed mode and

decreases the speed.

 Press

T3

 button and the hood quits the timed mode and increases the speed.

 Press

T4

 button and the hood quits the timed mode maintaining the set speed.

T5. Lights ON/OFFF

        Press the Light button and the lamps will turn on
        Press the Light button again and the lamps will turn off.



Filter saturation signal button – Control and Configuration:
Grease filter signal

After 40 hours of operation LED

L1

 flashes.

When such signal appears, carry out grease filter maintenance.
To reset the signal, keep

T1

 button pressed for 3”. (hood is ON).

LED

L1

 stops flashing before the hood goes back to OFF.

Charcoal filter signal

After 160 hours of operation LED

L2

 flashes.

When such signal appears, carry out charcoal filter maintenance.
To reset the signal, keep

T1

 button pressed for 5”. (hood is ON).

LED

L2

 stops flashing before the hood goes back to OFF.
