ELECTRICAL CONNECTION

(only intended for qualified personnel)

Disconnect the equipment from electrical mains power
supply before carrying out any operations on the hood.
Ensure that the wires inside the hood are not disconnected

or cut:
in the event of damage, contact your nearest Servicing Depart-
ment.
Refer to qualified personnel for electrical connections.
Connection must be carried out in compliance with the provisions
of law in force.

Before connecting the hood to the electrical mains power supply,
check that:
•  voltage supply corresponds with what is reported on the data plate

located inside the hood;

•  the electrical system is compliant and can withstand the load (see

the technical specifications located inside the hood);

•  the power supply plug and cable do not come into contact with

temperatures exceeding 70 °C;

•  the power supply system is effectively and properly connected to

earth in compliance with regulations in force;

•  the socket used to connect the hood is within reach.

In case of:
•  devices fitted with cables without a plug: the type of plug to use is

a ''standardised'' one. The wires must be connected as follows: yel-
low-green for earthing, blue for neutral and brown for the phase. The
plug must be connected to an adequate safety socket.

•  fixed equipment not provided with a power supply cable and plug,

or any other device that ensures disconnection from the electrical
mains, with an opening gap of the contacts that enables total discon-
nection in overvoltage category III conditions.

  Said disconnection devices must be provided in the mains power

supply in compliance with installation regulations.

The yellow/green earth cable must not be cut off by the switch.
The Manufacturer declines all responsibility for failure to comply with
the safety regulations.

FUMES DISCHARGE

HOOD WITH INTERNAL RECIRCULATION (FILTERING)

In this version, air passes through zeolite-carbon filters
to be purified and recycled in the environment.

Make sure the zeolite-carbon filters are installed in the
hood, otherwise, apply them as indicated in the assem-

bly instructions.

In this version the check valve must not be assembled: remove
it if it is on the air outlet fitting of the motor.

ASSEMBLY INSTRUCTIONS

only intended for personnel qualified

The hood can be installed in various configurations.

The generic assembly steps apply to all installations; for
each case, follow the specific steps provided for the re-

quired installation.

OPERATION

WHEN TO TURN  ON THE  HOOD?

Switch on the hood at least one minute before starting to cook to direct
fumes and vapours towards the suction surface.
After cooking, leave the hood operating until complete extraction of all
vapours and odours. By means of the Timer function, it is possible to set
auto switch-off function which will allow the hood to turn off automat-
ically after 15 minutes of operation.

WHICH SPEED IS TO BE SELECTED?

1st speed:

 maintains the circulation of clean air with low electricity

consumption.

2nd speed:

 normal conditions of use.

3rd speed:

 presence of strong odours and vapours.

4th speed:

 rapid disposal of odours and vapours.

WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?

The metal filters must be cleaned every 30 hours of operation.
The zeolite-carbon filters must be reactivated every 18 months and re-
placed every 3 years.
For further details see the

“MAINTENANCE”

chap.

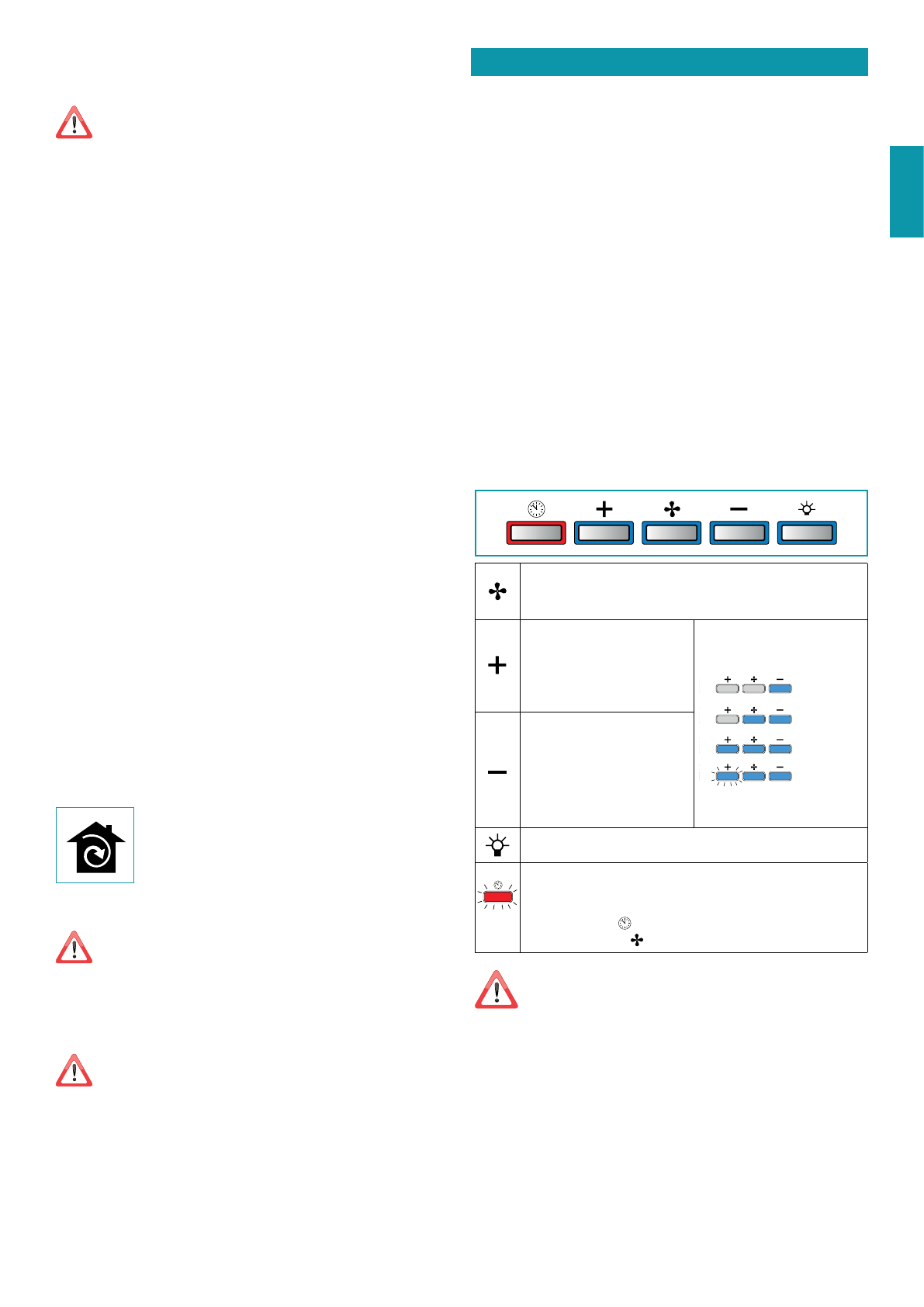

ELECTRONIC PUSHBUTTON PANEL

Motor ON/OFF

Upon start-up, the speed is that stored at the previous op-
eration.

Increase speed from 1 to 4

Speed 4 is only active for a
few minutes, then speed 3
activates.

The speeds are indicated by
the LEDs on the keys:

Speed 1

 Speed 2

 Speed 3

 Speed 4

("+" LED flashing)

Reduce speed from 4 to 1

Light on/off

TIMER

 (red LED flashing)

Auto switch-off after 15 min.
The function deactivates (red LED off ) if:
- The TIMER key ( ) is pressed again.
- The ON/OFF key ( ) is pressed.

If the pushbutton panel is completely inactive, before con-
tacting the Technical assistance service, disconnect power
temporarily to the appliance (about 5“), possibly by acting on

the main switch, to restore normal operation.
If this measure has no effect, contact the Technical assistance service.
