25

•

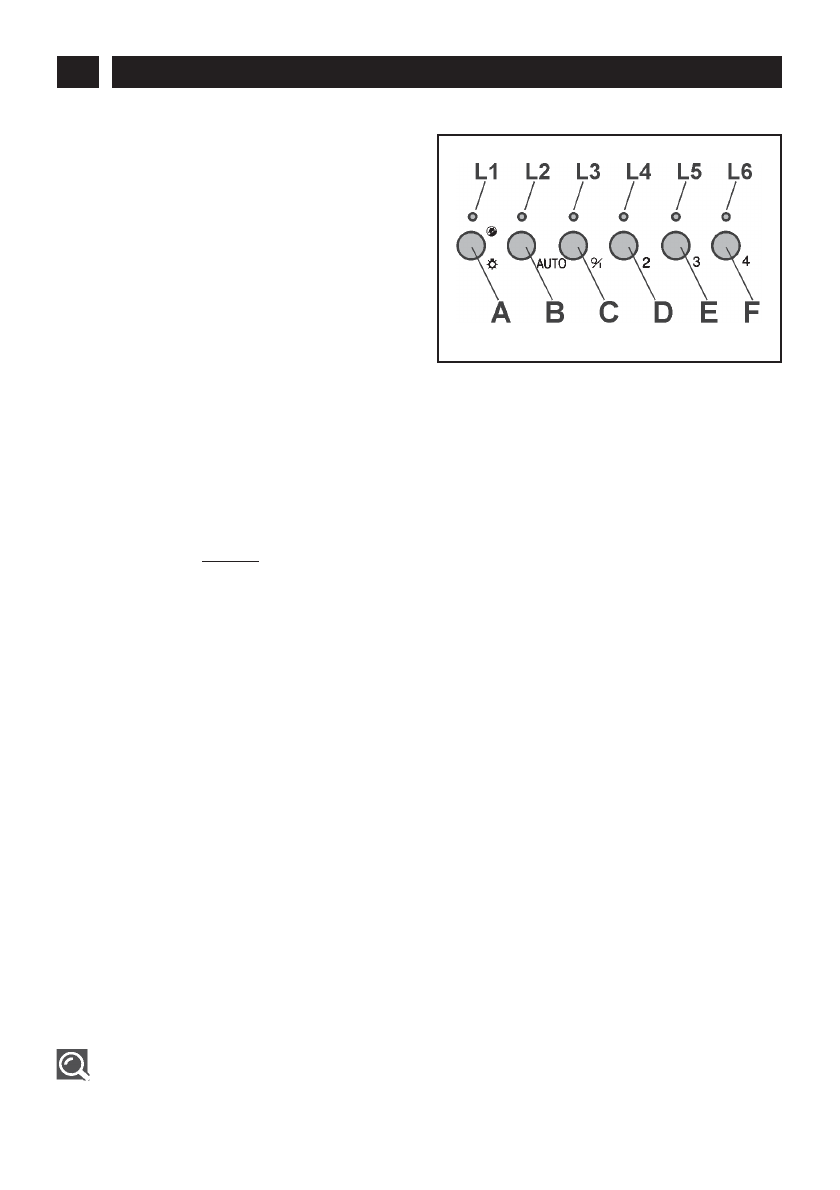

DESCRIPTION OF CONTROL PANEL

A) ON/OFF - lamps. This button is also used for
the alarm function of the grease and charcoal
filters.
B) The button B activates/deactivate sensor
function (when activated the sensor is lit by the
LED L2).
C) Press button C to start the motor at Speed 1.
The speed is shown by the L3 LED coming ON.
When held down for 2", the motor switches off.
D) Press button D to start the motor at Speed 2.
The speed is shown by the L4 LED coming ON.
E) Press button E to start the motor at Speed 3. The speed is shown by the L5 LED coming ON.
F) Press button F to start the il motor at Speed 4. The speed is shown by the L6 LED coming ON.

Filter alarm
After 30h of motor operation, the L1 LED comes ON and remains ON for 30" (the grease filters have
to be cleaned). After 120h of motor operation, the L1 LED comes ON and flashes for 30" (the charcoal
filter have to be changed if the hood is so equipped). The Filter Alarm is ONLY given with the motor is
OFF. The Filter Alarm is cancelled (HOUR meter reset) by holding down button A for 2".
WARNING: WHEN LED L1 LIGHTS UP, THIS INDICATES THAT THE GREASE OR CHARCOAL
FILTERS REQUIRE CLEANING.

Sensor sensitivity
Sensitivity of the sensor may be modified in accordance with individual requirements. Modify the
sensitivity by pressing simultaneously on the A and B buttons. The set sensitivity level will be displayed
via the 4 flashing Leds - L3, L4, L5, and L6. The desired sensitivity is set via the C, D, E, and F buttons
(C being minimum, F being maximum). Set the sensitivity level to minimum for gas cook tops, medium
for glass-ceramic cook tops and maximum for induction cook tops.

Filter sensor (activated via the B button)
This device is equipped with a completely automatic system (Advanced Sensor Control) for management
of all hood functions. Thanks to the Advanced sensor Control (ASC), air circulating in the kitchen is
maintained clean and odour-free without requiring any user intervention. The sophisticated sensors are
able to capture any type of odour, vapour, smoke or heat caused by cooking. The ASC also captures
any possible irregular gases present in the environment.
When the sensor function is activated, the C, D, E and F buttons activate the speed temporarily, to then
be overridden by the automatic speed setting.

Tip

This guide to installation and use is valid for several models. Minor differences in

details and fittings may emerge between your appliance and the descriptions provided.

3 / USING YOUR APPLIANCE

EN

fig. 7
