Warning
T h i s   i s   t h e   f i l t e r i n g   v e r s i o n   o f   y o u r

c o o k e r   h o o d ;   y o u   m u s t   f i r s t   r e m o v e   t h e
charcoal filter.

2 / INSTALLING YOUR APPLIANCE

EN

Tip

For optimal use of your appliance, we

recommend that you connect the hood to a
150 mm-diameter flue (not delivered with the
appliance). Minimise the number of angles
and bends and the lengths of the flue. In
t h e   e v e n t   t h a t   t h e   h o o d   w i l l   b e   o p e r a t e d
u s i n g   o u t - d o o r   e v a c u a t i o n ,   y o u   s h o u l d
e n s u r e   a   s u f f i c i e n t   i n f l o w   o f   f r e s h   a i r   t o
avoid a pressure deficiency in the room.

•

Filtering mode

- Install the wiring system. Insert the appliance in
the hole (Fig. 3).
- Make the air evacuation hole on the top of  the
pensile cupboard.
- Tighten the 2 screws inside the appliance (Fig.5)
until it fits snug on the bottom of the wall unit.
Do not tighten the two screws strongly to maintain
the two metallic clamps in the right position.
- Connect the tube with the device air outlet, to
such a height to reach the top of the pensile
cupboard (the tube is not included).
- Make the electrical connection of the hood by
means of the power supply cable.

•

Device disassembly

During the following operations always support
the device.
Tighten the  2 screws inside the device (Fig. 5);
moving the 2 small tongues toward the device
inside using the right carvings (Fig. 6); pull out the
device from its side.

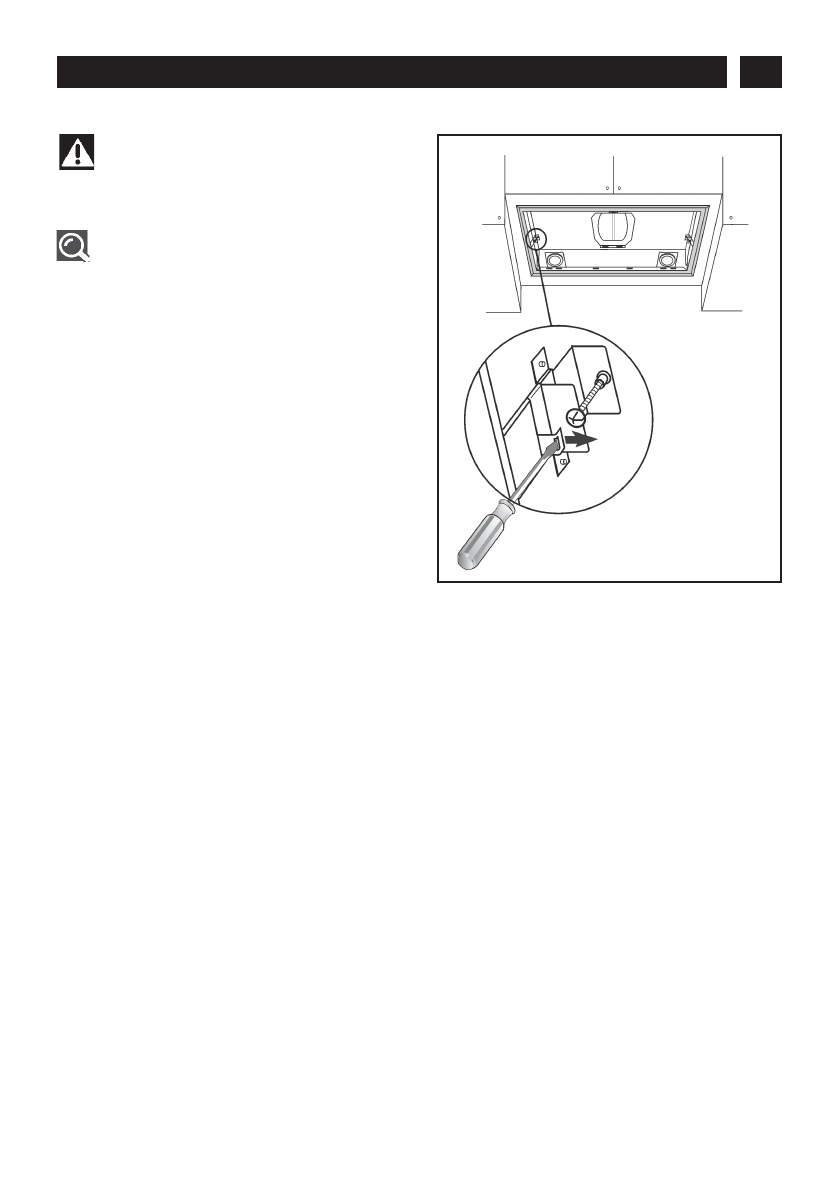

fig. 6
