ASSEMBLING THE HOOD

Warning

T h e   h o o d   m u s t   b e   i n s t a l l e d   i n

compliance with all applicable regulations
concerning the ventilation of premises. In
France these regulations are described in
DTU 61.1 from the CSTB. In particular, the
evacuated air should never be conveyed to
a   d u c t   u s e d   t o   e v a c u a t e   s m o k e   f r o m
a p p l i a n c e s   t h a t   u s e   g a s   o r   o t h e r
combustible fuels. Unused ducts may only
be used after approval from a competent
specialist.

The distance between the supporting surface for
the cooking vessels on the hob and the lower part
of the hood must be at least 650 mm. If the
instructions for installation for the hob specify a
greater distance, this has to be taken into account.

- Cut a hole in the bottom of the pensile cupboard
in order to settle the appliance (Fig. 3). The pensile
cupboard bottom must be 16 mm thick.
- Check that the fixing tabs (Fig. 4) to the wall unit
are positioned at a height suited to the thickness
of the bottom of the wall unit. If this distance is less
than the thickness, increase it by unscrewing the
2 corresponding screws inside the hood.

•

Ducting mode

- Install the wiring system and prepare the air
venting hole.
- Insert the appliance in the hole (Fig. 3).
- Tighten the 2 screws inside the appliance (Fig.
5) until it fits snug on the bottom of the wall unit. Do
not tighten the two screws strongly to maintain the
two metallic clamps in the right position.
- Connect the air exit tube with the device air outlet:
use a flexible tube and stop it in the device air outlet
through a metallic clamp (tube and  clamp are not
provided).
- Make the electrical connection of the hood by
means of the power supply cable.

2 / INSTALLING YOUR APPLIANCE

EN

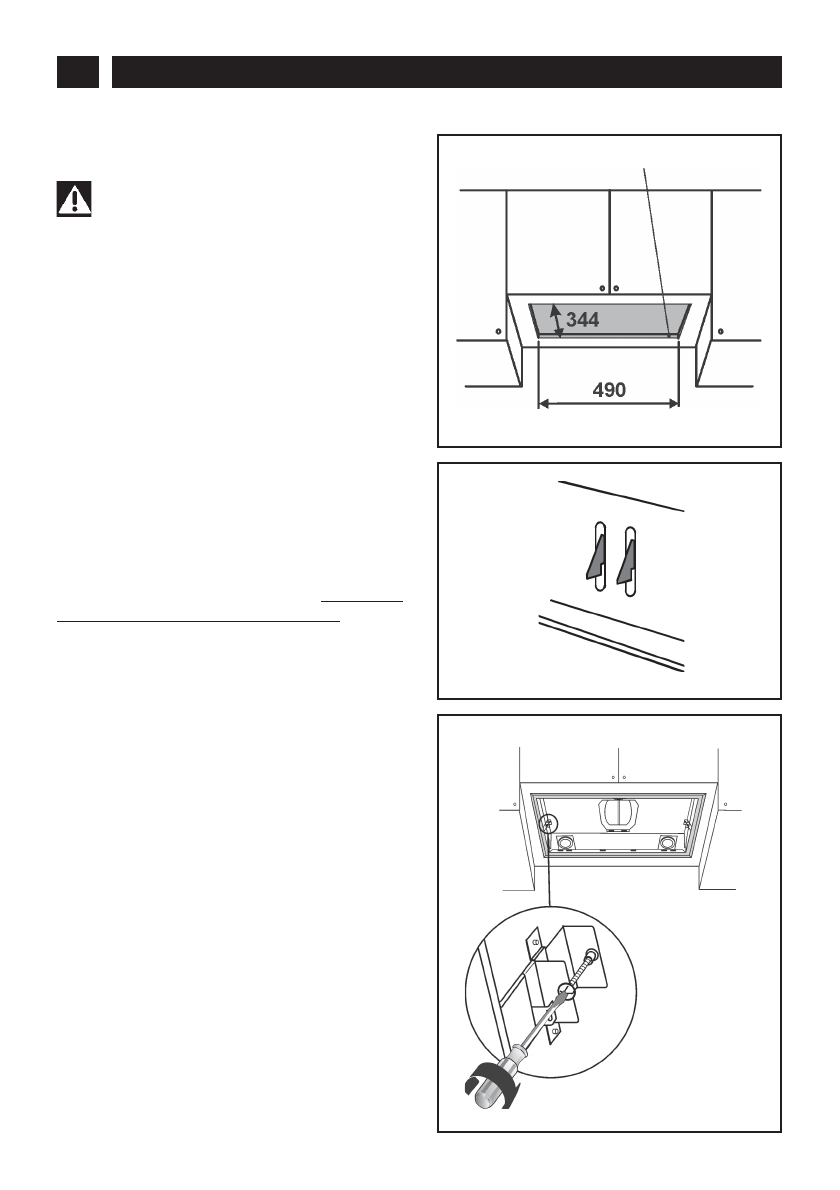

fig. 3

fig. 4

fig. 5

THICKNESS 16 mm
