www.timberk.com • electrical storage water heater

12

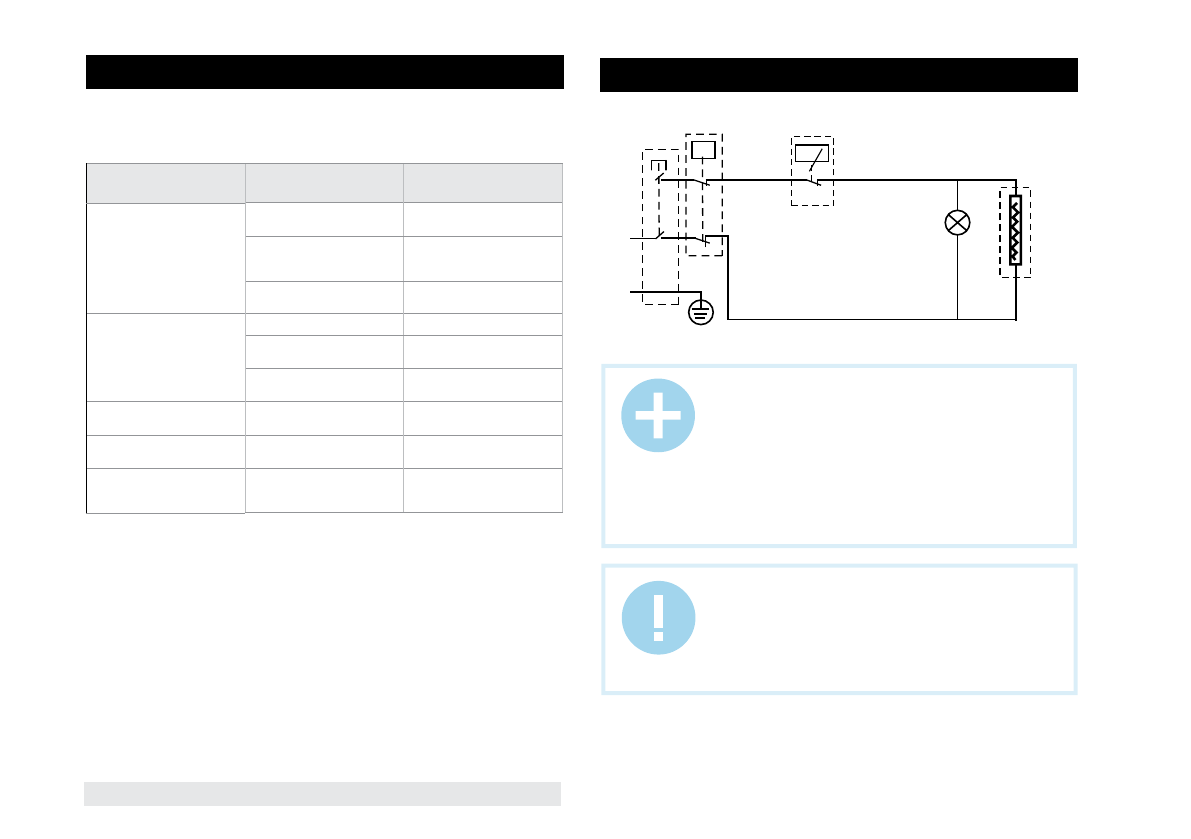

Possible malfunctions and troubleshooting methods
Table 3

10. TROUBLESHOOTING

11. WIRING DIAGRAM

Failure

Possible causes

Troubleshooting method

Heating indicator light doesn’t light up,
water is not heated

1. Temperature adjustment device
is broken.

Contact a repairer, TIMBERK service
center.

2. Temperature limiter was actuated or
was not switched on.

Switch on the temperature switch
following instructions on its activation.
(page 15)

3. Temperature limiter is broken.

Contact a repairer, TIMBERK service
center.

Water doesn’t flow from the hot water
discharge cock

1. Water feed is cut off.

1. Wait until water supply is restored.

2. Water pressure is too low.

2. Switch on the water heater again,
when normal water pressure restores.

3. Water supply exhaust valve is
closed.

Water temperature is too high

Water temperature control system
is damaged.

Contact a repairer, TIMBERK service
center.

Water leakage

Seal at the point of pipe connection
is broken.

Replace the joint seal.

Water flows from the appliance’s case

Breaking of the internal tank
(corrosion)Seal at the point of the
heating element connection is broken.

Contact a repairer, TIMBERK service
center.

Thermal stoper

Heating element

indication

lampe

Thermostat

L

N

E

Q

Q

Fig. 11

IMPORTANT!

To ensure reliable operation and safe use of the

water heater, prior to the first activation check if it is

correctly connected to 220V alternating voltage mains.

The water heater to be connected must be securely

connected to an earth circuit of your electric mains.

NOTE:

Technical and any other characteristics of the

appliance can be revised.
Such changes may be introduced without warning and

prior notice to the consumers.
The manufacturer shall not be liable for changes in the

appliance’s wiring diagram that may be implemented

without notice to the consumers.

TIMBERK disclaims any liability for possible damage, directly or indirectly

caused by Timberk products to people, pets, property in case if it occurred

as a result of failure to observe rules and conditions of operation, unit’s
