Water heater mounting methods

Fig. 6 shows the way to mount the water heater for several consumption

points.

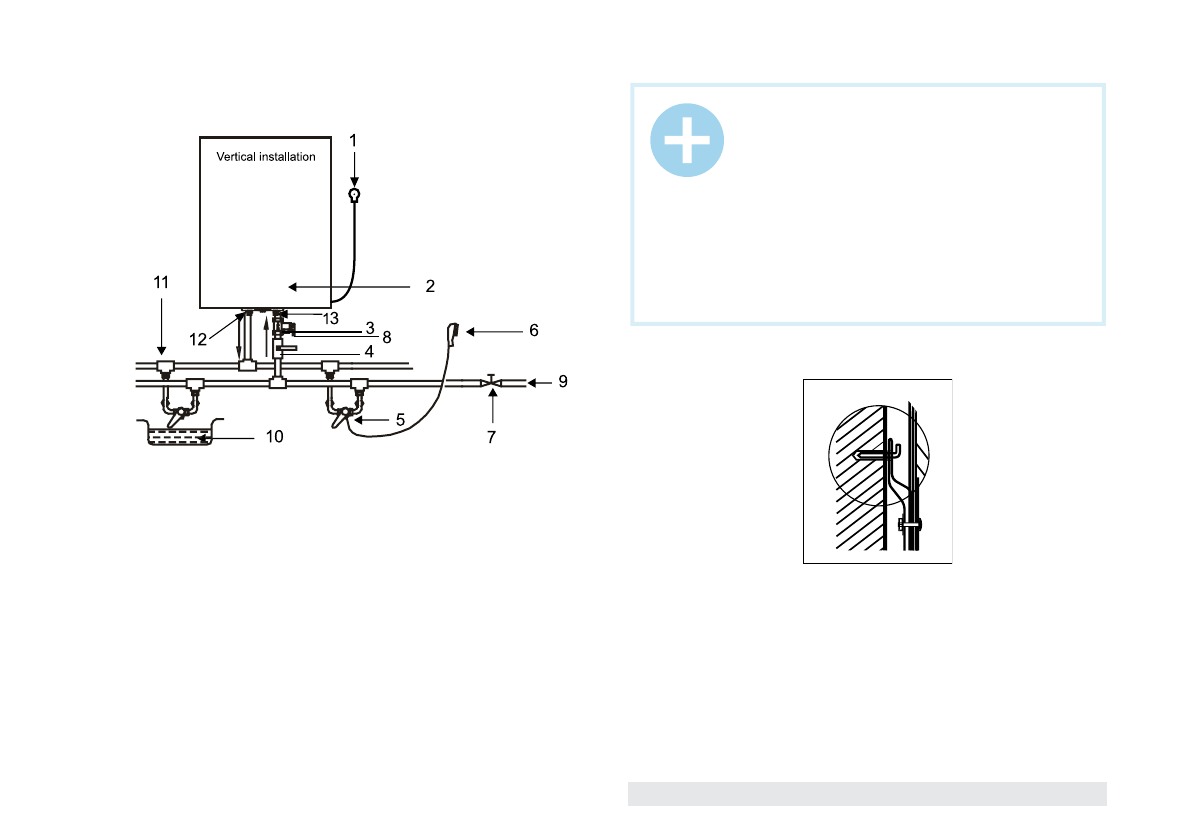

Water heater mounting

1. Power cord with a plug
2. Water heater
3. Check relief valve
4. Cold water supply valve*
5. Mixer*
6. Shower header*
7. Water main shut-off valve*
8. Pressure relieving opening
9. Water main
10. Bath tub*
11. T-bend*
12. Water outlet
13. Water inlet

Fig. 6

NOTE:

Please, use accessories, provided by the manufacturer,

to install the water heater. Electric water heater must

not be mounted on a wall prior you make sure that the

bracket is installed firmly and securely. Otherwise the

electric water heater may fall down from the wall, which

may cause its damage and even serious accidents

involving bodily injury. When determining points for

bolt holes, it is necessary to provision some spare

space between the lower part of the water heater and

the floor not less than 0.6 m, to make it convenient to

perform maintenance if necessary.

1. The electric water heater must be mounted on a solid wall. If wall strength

doesn’t allow to bear the double weight of the total water heater weight

fully filled with water, then it should be mounted on a special support.
2. After you chose the proper place to install the water heater, determine

points for holes for anchor hook bolts (to be determined in accordance

with the data sheet for the appliance you chose). Drill two holes of the

corresponding depth in the wall using a drill, dimensionally fit for anchor

bolts, enclosed with the water heater.
Then insert bolts into the drilled holes, and, turning bolt hooks clockwise,
