www.timberk.com • electrical storage water heater

6

Water heater mounting methods

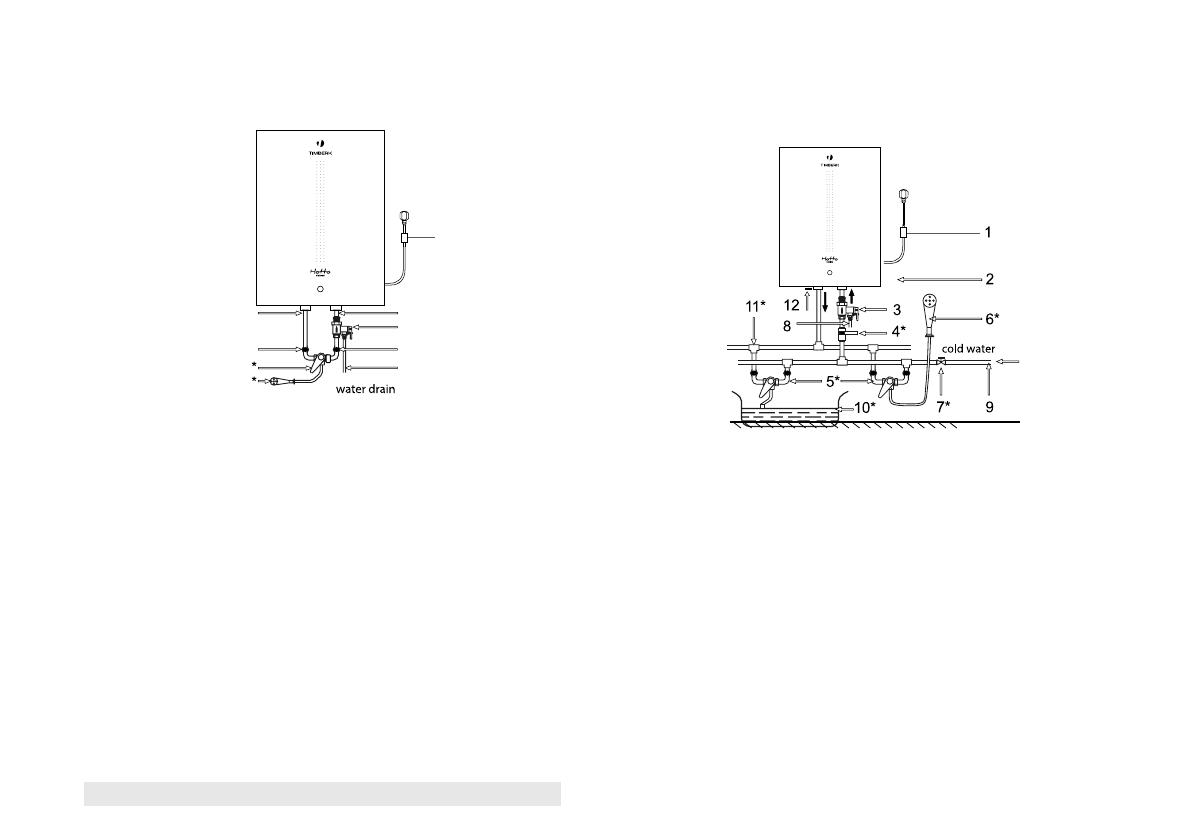

Fig. 3 shows the way to mount the water heater for one consumption point.

2

3

4

5

6

1

7

8

9

HEATING

HEATING

HEATING

HEATING

1 – power cord with GFCI
2 – outlet nozzle
3 – hot water flow adjustment tap*
4 – mixer*
5 – shower header*
6 – cold water supply adjustment tap
7 – discharge pipe
8 – composite pressure safety valve
9 – inlet nozzle

* not included in the scope of delivery

Water heater mounting methods

Fig. 4 shows the way to mount the water heater for several consumption

points.

Fig. 3

Fig. 4

1 – power cord with GFCI
2 – mounted water heater
3 – composite pressure safety valve
4 – cold water inlet tap*
5 – mixer*
6 – shower header*
7 – water main shut-off valve
8 – discharge pipe
9 – water main
10 – tub*
11 – T-bend
12 – magnesium anode-nozzle for water discharge

* not included in the scope of delivery
