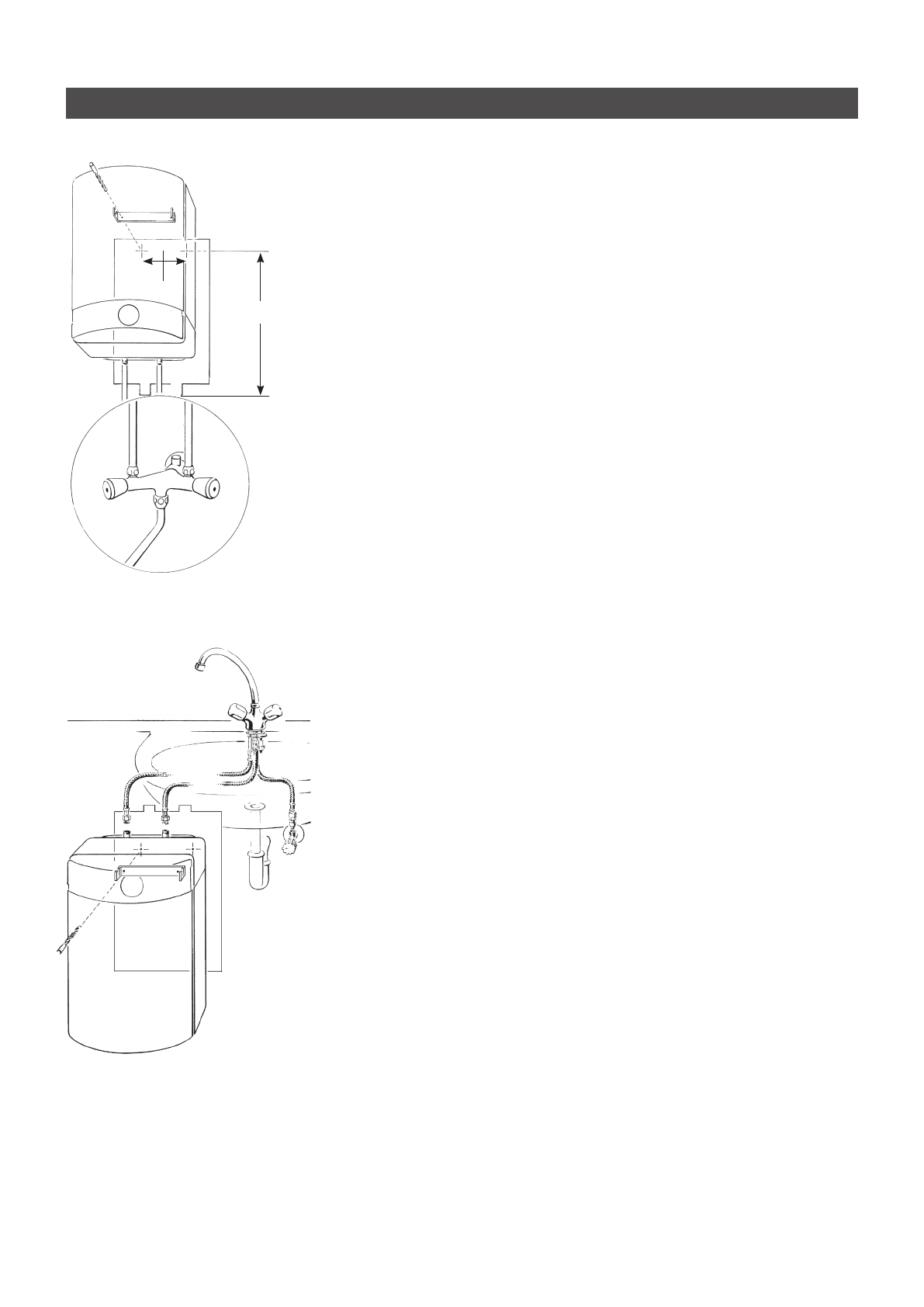

Pressure-less installation (open-outlet)

•  For one outlet only.
•  A special low-pressure mixing battery for pressure-less installation is required. This

fitting permits relatively simple, reliable installation. The appliance is automatically
installed without pressure when using the low-
pressure fitting.

•  Use of the low-pressure mixing battery ensures that the storage heater is never

subjected to the pressure of the water mains. The open outlet of the mixing battery
allows the water due to expansion to drain off freely.

•  The outlet must always be free. Jet regulators must not be used. Water due to

expansion drips from the outlet as the water is heated.

Low-pressure mixing battery for undersink installation: e.g. SNO,
Art. No. 4100-0110

•  Set the flow rate as per DIN 44531 or according to the specifications in the installa-

tion manual of the fitting.

Oversink (S 10-O / S 15-O)

½"

6 mm

6 mm

71 mm

426 mm

6. Installation

Undersink (S 10-U / S 15-U)

Low-pressure mixing battery for undersink installation: e.g. SNT,
Art. No. 4100-02100

•  Set the flow rate as per DIN 44531 or according to the specifications in the installa-

tion manual of the fitting.
