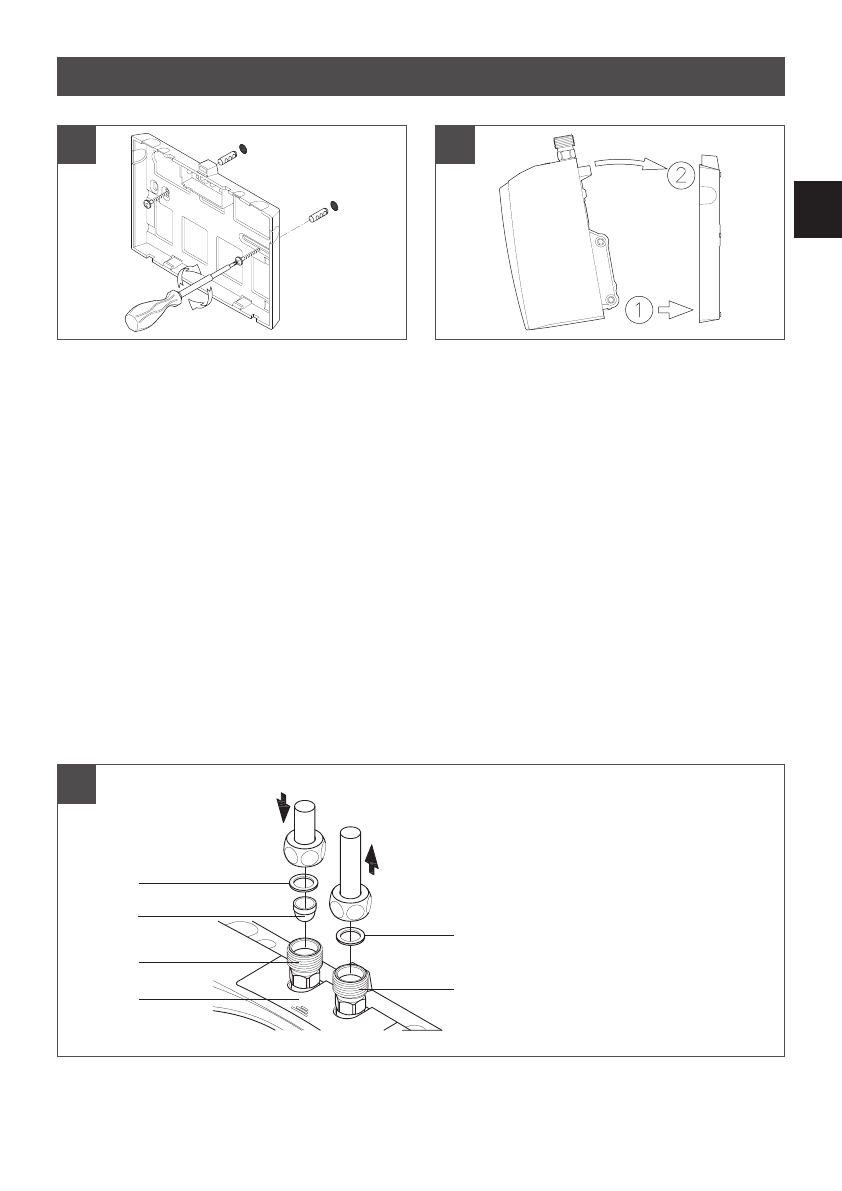

•  Install the appliance with the water connectors vertically upwards for direct connection to

the sanitary tap.

•  Secure the wall bracket to the wall with screws and suitable wall plugs (fig. 5).
•  Place the appliance on the wall bracket and snap it into position (fig. 6). The appliance may

only be operated, if it has been placed properly into the wall bracket!

•  Tap connection (fig. 7): Cold water inlet (blue) and hot water outlet (red) are marked on the

rating plate (under the rating plate cover).

•  Connect the appropriate pipe or hose of the sanitary tap with the red-marked hot water

outlet. Avoid exerting any kind of mechanical pressure on the appliance, e.g. by water pipes
etc.

•  After installation, carefully check all connections for leaks and rectify as necessary.

•  In order to obtain an optimum water jet at low flow rates, always insert the enclosed

jet regulator into the sleeve of the tap outlet. This insert fits commercially available
sleeves with an M 22 or M 24 thread.

8. Installing the appliance

7

a

d

a

b

c

e

a.  Seal
b.  Strainer
c.  Cold water-connection (inlet)
d.  Hot water-connection (outlet)
e.  Rating plate cover
