22

EN

MCX 3..7  SMARTRONIC

®

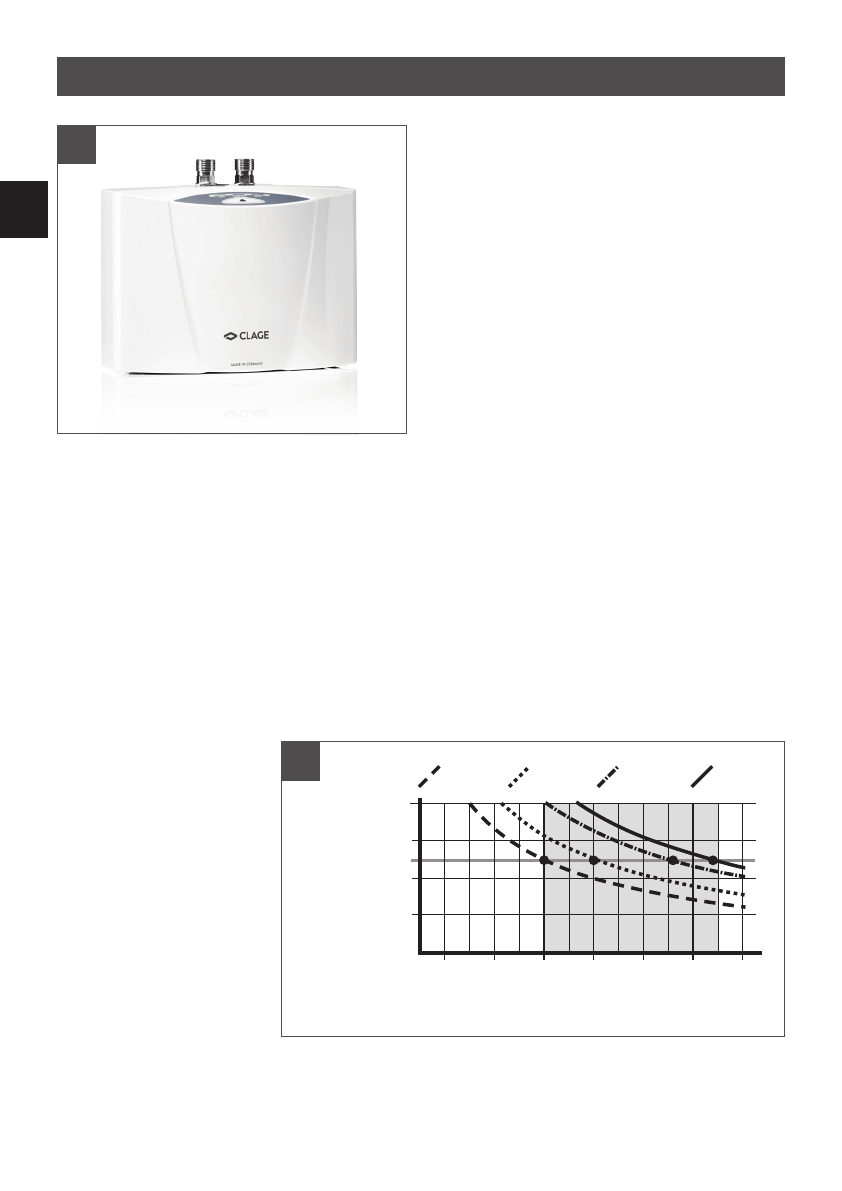

3. Description of appliance

1

This instantaneous water heater (fig. 1) is
intended to provide economical heating of
water sufficient for a single outlet i.e. kitchen
sink or wash basin and can be installed with
a sanitary water fitting.
When the hot-water tap is opened, the
heater switches itself on automatically when
the minimum water flow rate is exceeded
and heats the water as it passes through the
appliance.
The heater is pre-set in the factory to an out-
let temperature of about 38 °C, which is ideal
for washing your hands. When this tem-
perature is reached, the electronic regulator

reduces the power in order to ensure that the outlet temperature does not exceed this value.
This automatic temperature regulation means that it is only necessary to open the hot water
tap to obtain water at a constant, safe temperature for washing hands. On the control panel,
the temperatures 35 °C (ECO), 38 °C (COMFORT) and 45 °C (MAX) can be selected.

Cold water

may be added if a lower temperature is required.
If the flow rate is too low, if the flow pressure is too low, or if the warm-water tap is closed, the
appliance switches itself off automatically. For an optimum flow of water, always fit the special
jet regulator enclosed with the appliance. This regulator is inserted into the thread on the end
of the tap and fits into any standard sleeve size M 22/24.
The maximum possible
outlet temperature is
determined by the tem-
perature of the incoming
water, the rate of flow
and the heating power of
the heater (see diagram).
The flow rate can be pre-
set (“Adjusting the water
flow”, 31).

2

max. temper

atur

e incr

ease t

1

–t

2

 in K

elvin

40

∆t

[K]

30

25

20

10

1,0

1,5

2,0

2,5

3,0

3,5

4,0

V [l/min]

3,5 kW

4,4 kW

5,7 kW

6,5 kW

Hot water flow
