62

1

2

A

B

C

C

A

860 (33

7⁄8”

)

740 (29

1⁄8”

)

560 (22”)

> 100 (4”)

10 (

3⁄8”

)

50%

B

C

100 (4”)

www.fhiaba.com · info@fhiaba.com · Tel +39 (0)434 420160 · Fax +39 (0)434 420161

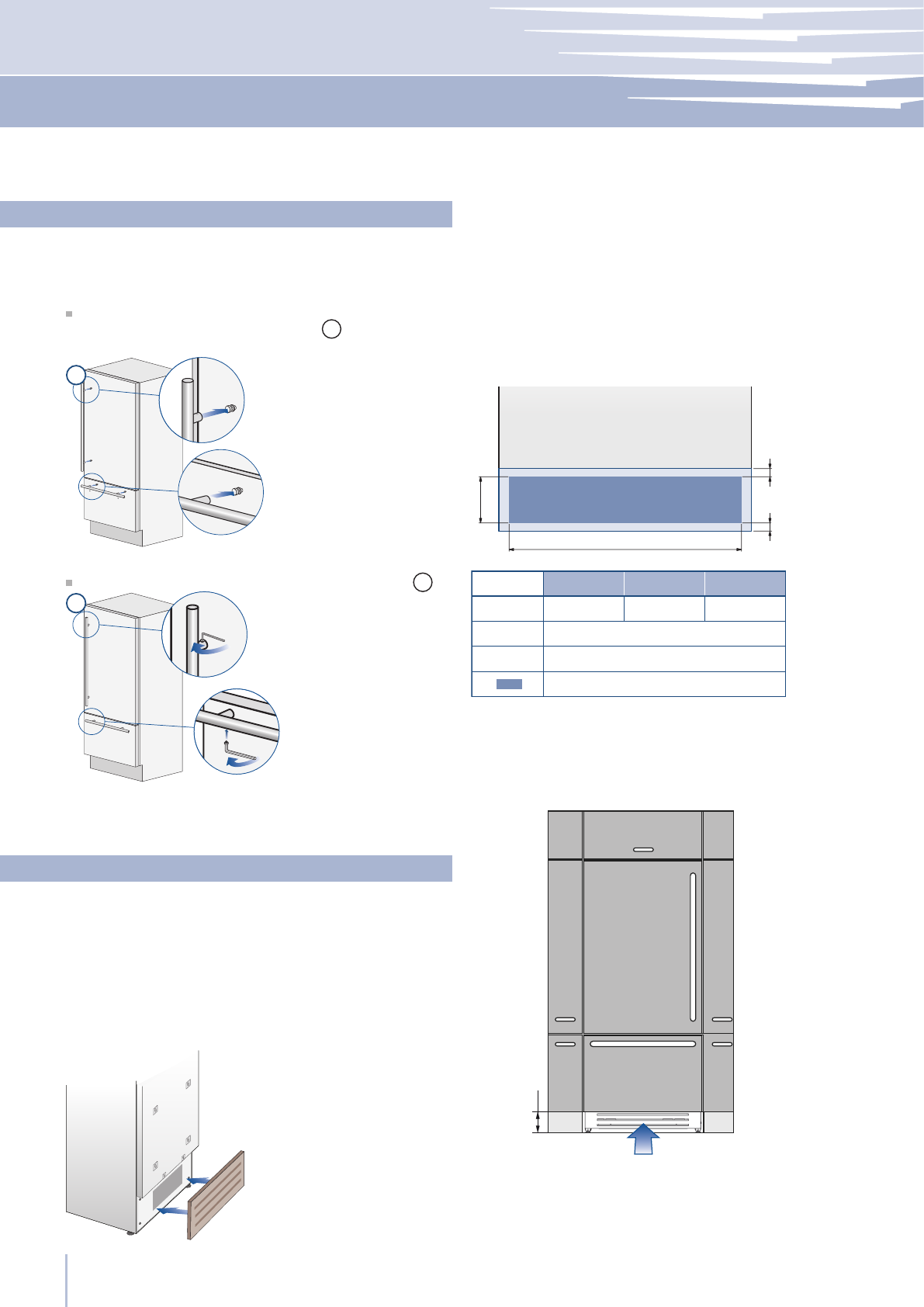

Mounting the handles on stainless front

To mount the handles onto the door and the drawer operate
as follows:

Operate as follows:

  Insert the two handle spacers onto the supports already

available on the door and the drawer

1

.

  Screw in the Allen screws available on the handle

2

.

The screws must be tightened in by means of a 2.5 mm
(1/8”) hex wrench.

Ventilation

A forced air system assures ventilation through a grille po-
sitioned in the lower front part of the unit. If the kitchen
design includes a kickplate, the latter has to be punched

in order to maintain a satisfactory air flow, as described in

the drawing.

Holes can be in any shape and size, as long as the total
area of the punched part equals 50% of the kickplate are.

In  this  case,  to  guarantee  a  better  air  flow,  it  is  advisable

to remove the front grille included with the unit. The grille is
secured to the unit with magnetic plates and can be easily
removed even by the end user, to provide for regular clea-
ning procedures and remove dust.
If the grille is partially covered by the kitchen kickplate, it
is advisable to remove the grille in order to provide for a

better airflow.

The air intake and outlet must not be blocked or covered
in any way. They also need to be dusted/cleaned on a
regular basis.

Integrated and Classic Series

899 Series 749 Series 599 Series
