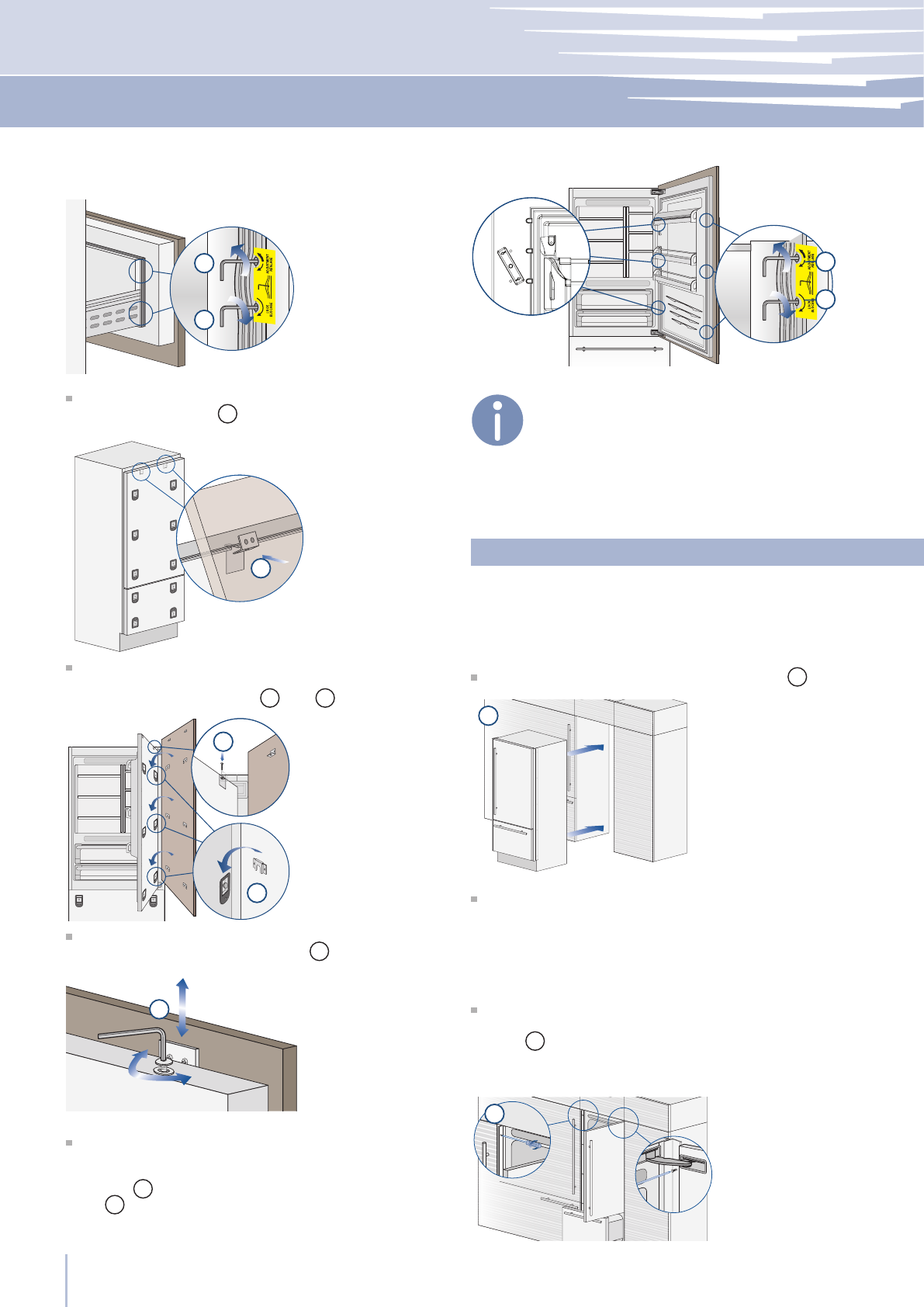

Once the front panel has been adjusted, check that the gasket

has been repositioned correctly to assure the door/drawer

are closing correctly and avoid operational errors of the unit.

  Hook the panel to the fixing devices starting from the

top aligning brackets

6

.

  At this point, alignment between the panel and ad-

jacent cabinets can be adjusted using the alignment
brackets and small brackets

7

 and

8

.

   Vertical alignment: tighten or loosen the screw in the

brackets to raise or lower the panel

9

.

  Depth alignment: working from the inside of the door,

after lifting up the magnetic seal, adjust the panel posi-
tion so it is closer to or further away from the door using
the holes

10

 and then fix the panel in position using the

holes

11

.

Installation

For a built-in installation, to close gaps between the ap-

pliance  and  the  adjacent  cabinets,  special  side  profiles

and aluminum covering frames are provided.

Operate as follows:

  Push the appliance into the installation niche

1

.

  If the unit is to be installed inside a niche or within an

enclosed structure, it is necessary to design a ventilation
shaft at the back of the niche to assure proper ventilation

at the back of the unit. A 5 mm gap is sufficient to prevent

overheating. Always mount front panels on door and dra-

wer  before  pushing  the  unit  into  its  final  position  inside  the

niche or structure.

  Secure the appliance to the adjacent cabinets by fixing

to  these  the  side  profiles  previously  mounted  on  the  ap

-

pliance

2

.

To make this operation easier keep the door and the dra-
wer open.

Built-in installation single appliance
