57

1

2

480 mm (18

7/8”)

899

900 mm (35

1/2”)

899
749
599

490 mm (19

1/4”)

749

340 mm (13

3/8”)

599

794 mm (31

1/4”)

1104 mm (43

1/2”)

644 mm (25

3/8”)

494 mm (19

5/8”)

HO8

HV

HO7

HO5

1

2

3

www.fhiaba.com ·  info@fhiaba.com ·  Tel +39 (0)434 420160 ·  Fax +39 (0)434 420161

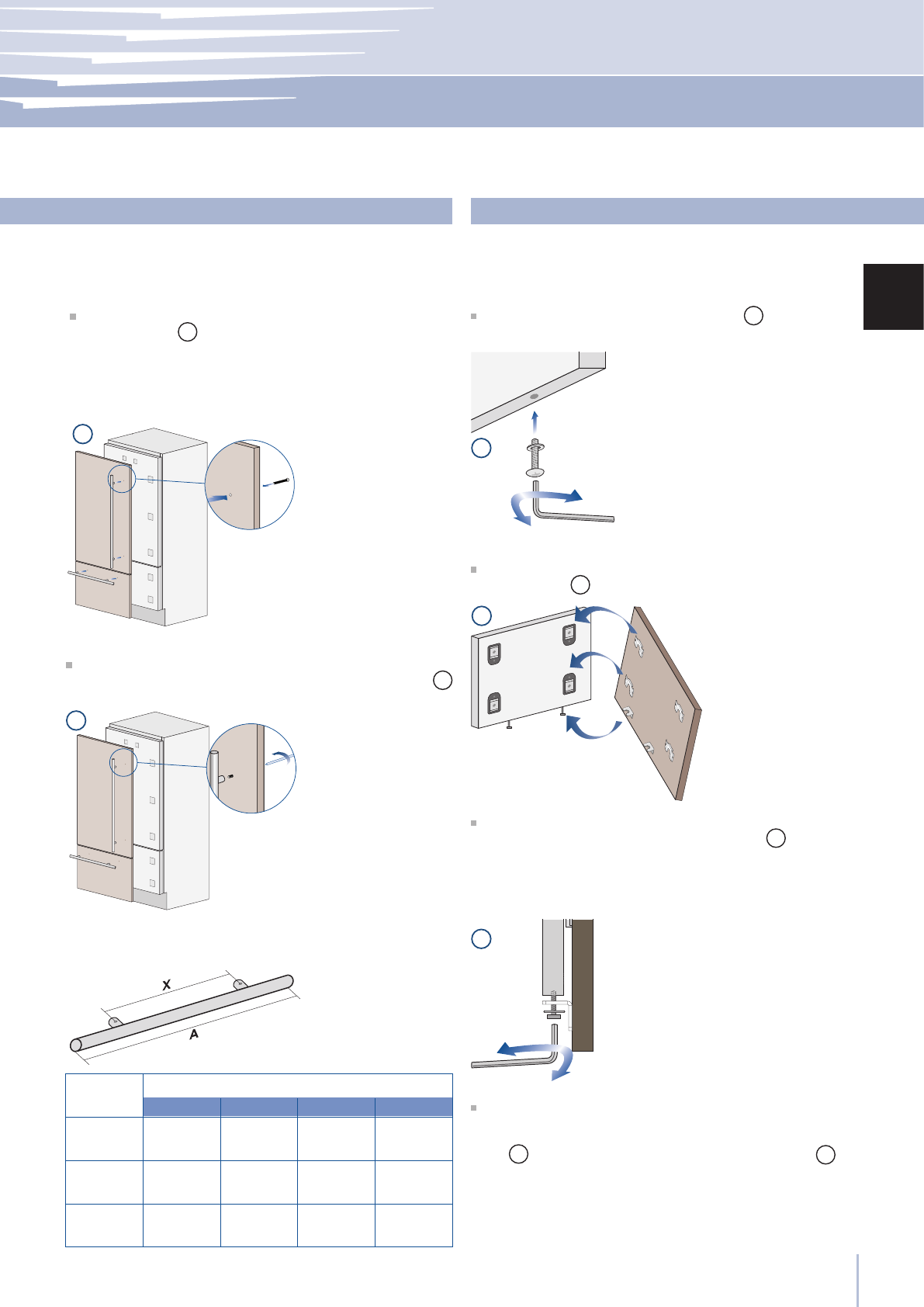

Installation Guide

EN

Mounting the handles

Handle product code

Distance

between

fixing points

X

Series

Lenght

A

Handles will have to be mounted on the panels before
they are applied to the fridge.

Operate as follows:
     Drill two holes on the back of the panels according to
the table below

1

.

  Place the handle on top of the holes and insert the

screws through the panel and into the handle support

2

.

Mounting panels to the door and the drawer

Once all brackets and small brackets have been applied
to the panels, you can begin installing the bottom drawer.

Operate as follows:

  Partially tighten the screw to the fixing

1

.

    Hook  the  bottom  drawer  panel  starting  from  the  fixings

on the bottom

2

.

  It is now possible to align panels to adjacent cabinets in

height using the lower alignment brackets,

3

 tightening

or untightening the screws into position as needed. With
the screw slighty tightened, move the panel sideways to
align it to the other panels on the unit or other adjacent
structures.

  Depth alignment: working from the inside of the drawer,

after lifting up the magnetic seal, adjust the panel position
so it is closer to or further away from the door using the
holes

4

 and then secure the panel using the holes

5

.
