Installation Guide

EN

The appliance is very heavy.

Take maximum care during handling to avoid injury.

The appliance should always be transported in an erect

position.

Avoid at all costs leaning it on its front side.

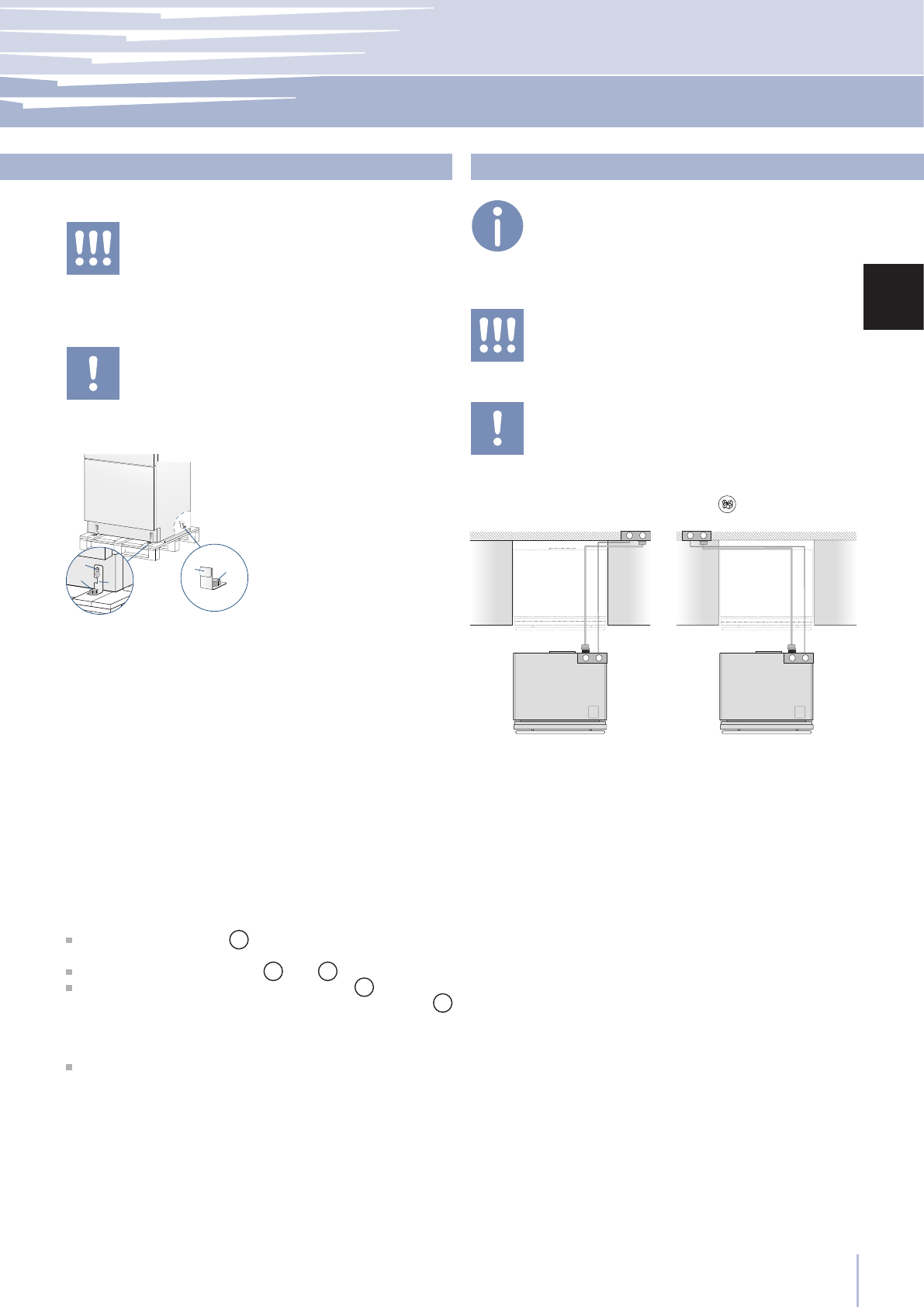

Preparing the installation

Transport to installation site and unpacking

Since this is a large and heavy appliance, before trans-
porting the appliance, check the access to the location
where it will be installed (door size, manoeuvring space in
stairwells, etc.).
The appliance is attached to the base of the packaging
(pallet) through four bolts which can be removed using a
17 mm (3/4”) wrench.
It is recommended to use a manual transporting device to
move the appliance to the installation site, and only at this
point to remove the base of the packaging.
The appliance should always be transported in an erect
position.
If this is not possible, transport the appliance laying on its
rear side.
Once at the installation site, the appliance, which is
equipped with four wheels, can be taken off the pallet and
positioned in the installation area.

Operate as follows:

 Take off the four bolts

1

 securing the appliance to the

pallet by means of a 17 mm (3/4”) open spanner.

  Remove the fixing brackets

3

 and

4

.

    To  remove  the  front  fixing  bracket

3

  , unscrew

for one or two turns the rear wheel adjusting bolt

2

by means of a 13 mm (1/2”) box spanner, avoiding
too much strenght while thightening the nut, which
could damage the leveling feet adjusting system.

  From the back of the unit and by means of a suitable,

high duty hand trolley, take off the appliance and place

it on the floor.
Be very careful to avoid any damage to floors. Delicate floors

should be protected with plywood, hard cardboard or similar
material panels.

Electrical and Water connection

A  Schuko  16  A  socket  with  an  efficient  grounding  should

be made available for the electrical mains connection, as
well as an omnipolar
switch which can easily be reached when the appliance
is installed.
To connect to the water supply system (for appliances
equipped with ice makers) a tap with a male 3/4” connec-
tion should be provided, which must also be easily acces-
sible once the appliance is installed.
The appliance is provided with a water supply hose and
seal kit which is suitable for high water pressure and com-
plies the Food Regulations.

The water filter cartridge, which is provided with the appli

-

ance, should be installed according to the accompanying
instructions.
Use only the new hose and the new gaskets which are sup-
plied with the appliance. Discard any hose and gasket
which may have already been installed.

Electrical cord length: 2,0 mt (78 3/4”)
Water connection line length: 2,5 mt (98 3/8”)

Do not use extension cords or adapters.

Once the appliance has been connected to the water system,

turn the Ice Maker off (touch the button

 on control panel to

switch it off) before the main water is shut off.

The appliance should be connected only to a drinkable

water supply system.

The  Built-in  Fhiaba  filter  cannot  make  it  safe  to  drink  any

water which is not suitable for human consumption.
