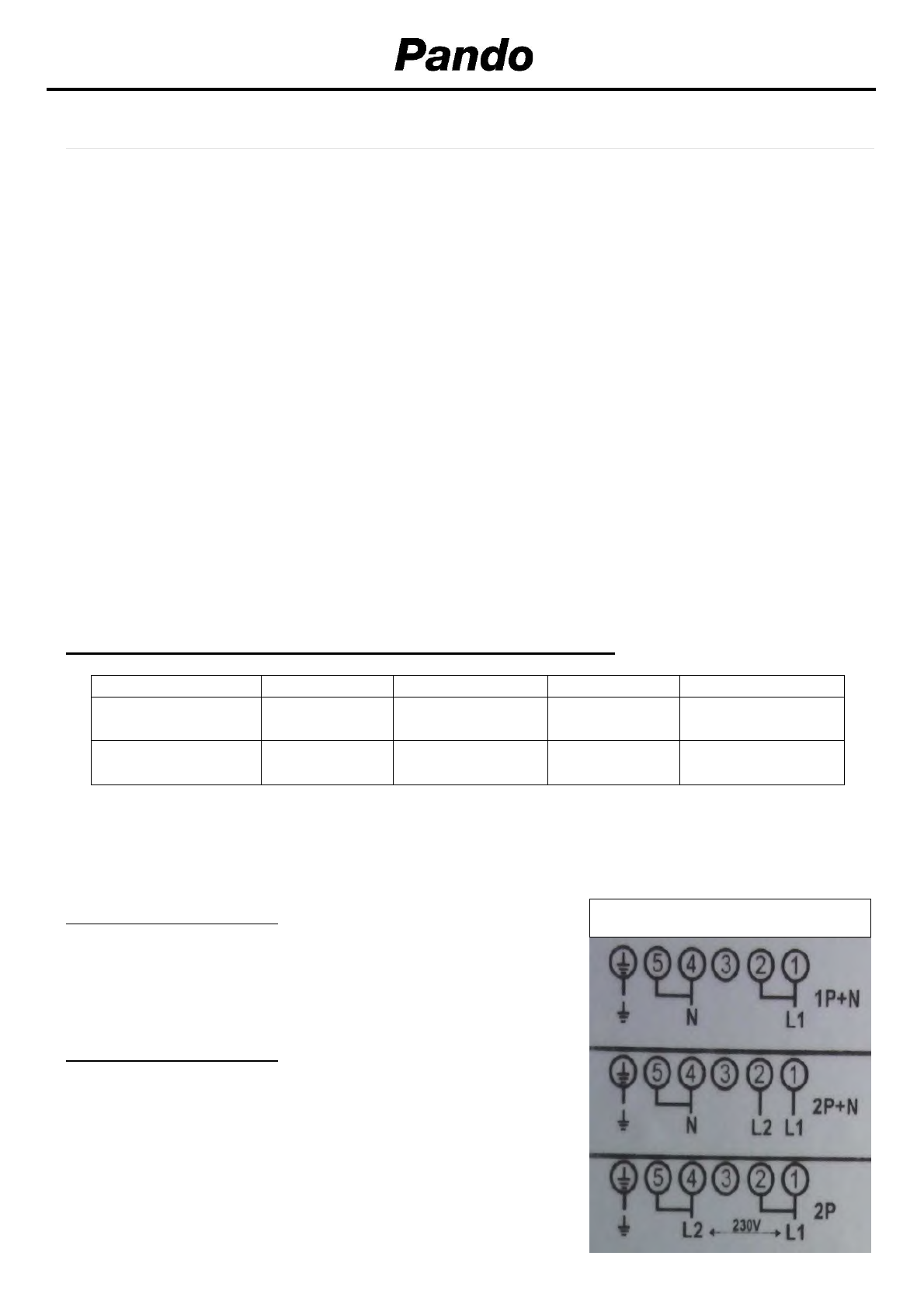

CONNECTION OF THE HOB FOR PI3200 AND PI3300:
Protection ca
Cable
Cable diameter
Connection
Mains
libre
3 x 2,5 mm²
1 Phase + N
230V~ 50/60Hz
H 05 VV - F
H 05 RR - F
25 A *
2 Phases + N
400V~ 50/60Hz
4 x 1.5 mm²
H 05 VV - F
H 05 RR - F
16 A *
See connection diagram
on the device label
and
the Phase L2 to the terminal 2 (Black).
the Phase L1 to the terminals 1 (Brown)
the neutral N to terminal 4 or 5 (Blue and
Grey),
Attach the earth to the terminate “earth” (Yellow/Green),
Put a bridge between terminal 4 and 5.
Biphase
400V~2P+N
to one of the terminals 1 or 2 (Brown and Black).
the neutral N to terminal 4 or 5 (Blue and
Grey), the Phase L
Attach the earth to the terminate “earth”(Yellow/Green),
Put the 1
st
bridge between terminal 1 and 2, the 2
nd
between 4 and 5.
Monophase
230V~1P+N
For the various kinds of connection, use the brass
bridges which are in the box next the terminal
Connection of the hob
* calculated with the simultaneous factor following
the standard EN 60 335-2-6
ELECTRICAL CONNECTION
•
The installation of this appliance and the connection to the electrical network should be
entrusted only to an electrician perfectly to the fact of the normative regulations and which
•
respects them scrupulously.
Protection against the parts under tension must be
•
ensured after the building-in.
The data of connection necessary are on the stickers place on the hob casing near the
•
connection box.
The connection to the main must be made using an earthed plug or via an omnipolar
•
circuit breaking device with a contact opening of at least 3 mm.
The electrical circuit must be separated from the network by adapted devices, for example:
•
circuit breakers, fuses or contactors.
If the appliance is not fitted with an accessible plug, disconnecting means must be
•
incorporated in the fixed installation, in accordance with the installation regulations.
The inlet hose must be positioned so that it does not touch any of the hot parts of the hob
or oven.
Caution!
This appliance must only be connected to a network 230 V~ 50/60 Hz.
Always connect the earth wire.
Respect the connection diagram.
The connection box is located underneath at the back of the hob casing. To open the cover use a
medium screwdriver. Place it in the slits and open the cover.
INOXPAN S.L.
96
