GB

Installation

these instructions are aimed at qualified fitters as a guide
to installation, adjustment and maintenance in compliance
with the laws and standards in force. The operations must
always be carried out with the appliance disconnected from
the electricity supply.

Positioning (Fig. 8-9-10-11)

The appliance is made to be fitted into a counter top, as
show in the figure. Apply the sealant supplied around the
whole perimeter of the hob. Installation over an oven is not
recommended, but if this is necessary, check that:

-  the oven has an efficient cooling system;
-  there is no passage of hot air from the oven to the hob;
-  allow air passages as shown in the figure.

Electrical connection (Fig. 12-13)

Before connecting to the electricity supply, ensure that:

-  the characteristics of the system are such as to satisfy

that indicated on the registration plate applied to the
bottom of the hob;

-  the system has an effective earth connection compliant

with the standards and laws in force. Connection to earth
is compulsory by law.

If the appliance has no cable and/or plug, use material
suitable for the absorption indicated on the registration plate
and for the working temperature. The cable must not reach
a temperature higher than 50°C above room temperature
in any point.
For direct connection to the network it is necessary to fit an
omnipolar switch of a suitable size to ensure disconnection
of he network with a contact opening distance that allows
complete disconnection in the conditions of the overtension
category III, compliant with the installation regulations (the
yellow/green earth wire must not be interrupted).
The omnipolar socket or switch must be easy to reach when
the appliance is installed.
N.B.:

- The manufacturer declines all responsibility if the

usual accident prevention standards and the above
instructions are not observed.

If the power cable is damaged, it must be replaced by the
manufacturer or by the manufacturer’s technical servicing
network, or by a similarly qualified operator, to prevent
every possible risk.

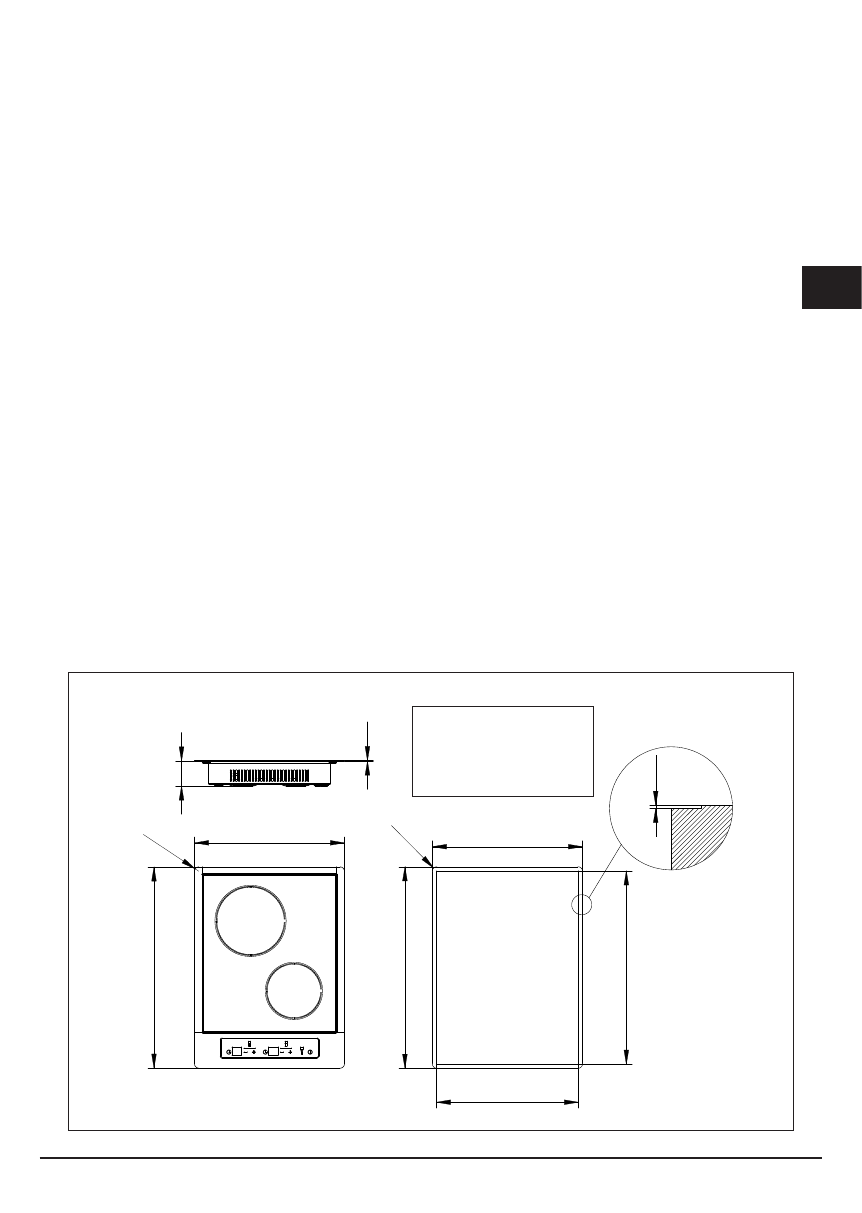

Installation instructions

381

+1

0

511

+1 0

360

+1

0

490

+1 0

R

12

1.

5

INDUCTION

INDUCTION

380

510

R 11

63

1

Fig. 8

N.B. For the Semifilo
version, it is not necessary
to lower the hob by 1.5
mm.

Mod. CPH 402 ID TC
