5) GAS CONNECTION
The gas connection is located in the rear and on the
underside of the appliance 118 mm (for EH/60) from
the right hand side.
There are two ways to carry out the connection to the
main gas line:
A.
the hotplate can be connected with rigid pipe as
specified in AS5601 table 3.1.
B.
The hotplate can be connected with a Flexible
Hose, which complies with AS/ANZ 1869 (AGA
Approved), 10mm ID, class B or D, no more than
1.2m long and in accordance with AS5601.
Ensure that the Hose does not contact the hot
surfaces of the hotplate, oven, dishwasher or other
appliance that may be installed underneath or next to
the hotplate. The Hose should not be subjected to
abrasion, kinking or permanent deformation and
should be able to be inspected along its entire length.
Unions compatible with the hose fittings must be
used and connections tested for gas leaks.
Ensure the supply connection point is accessible with
the appliance installed.
Warning: ensure that the hose assembly is restrained
from accidental contact with the flue or flue outlet of
an underbench oven.
Natural Gas
Natural Gas installations require the connection of a
gas regulator at the appliance. This regulator is
supplied with the appliance on purchase.
A s s e m b l e t h e r e g u l a t o r ( n o t i n g t h e g a s f l o w
direction) and transition pieces (supplied with the
appliance), in accordance with figure 10.
The transition piece on the supply side of the
regulator must be provided by the installer.
Liquified Petroleum Gas
In a U - LPG installation the gas regulation is made
at the gas cylinder and regulation at the appliance
is not required. To connect supply to the appliance
use transition pieces as shown in figure 11. These
pieces are supplied with the appliance on purchase.
WARNING:
THE BURNER FLAME MUST BE ADJUSTED BY
THE INSTALLER.
FA U LT Y I N S TA L L AT I O N W I L L N O T B E
COVERED UNDER WARRANTY.
THE APPLIANCE IS FACTORY SET FOR NATURAL
GAS. THE TEST POINT PRESSURE SHOULD BE
ADJUSTED TO 1.00kPa WITH THE WOK BURNER
OPERATING AT MAXIMUM.
8
INSTALLATION

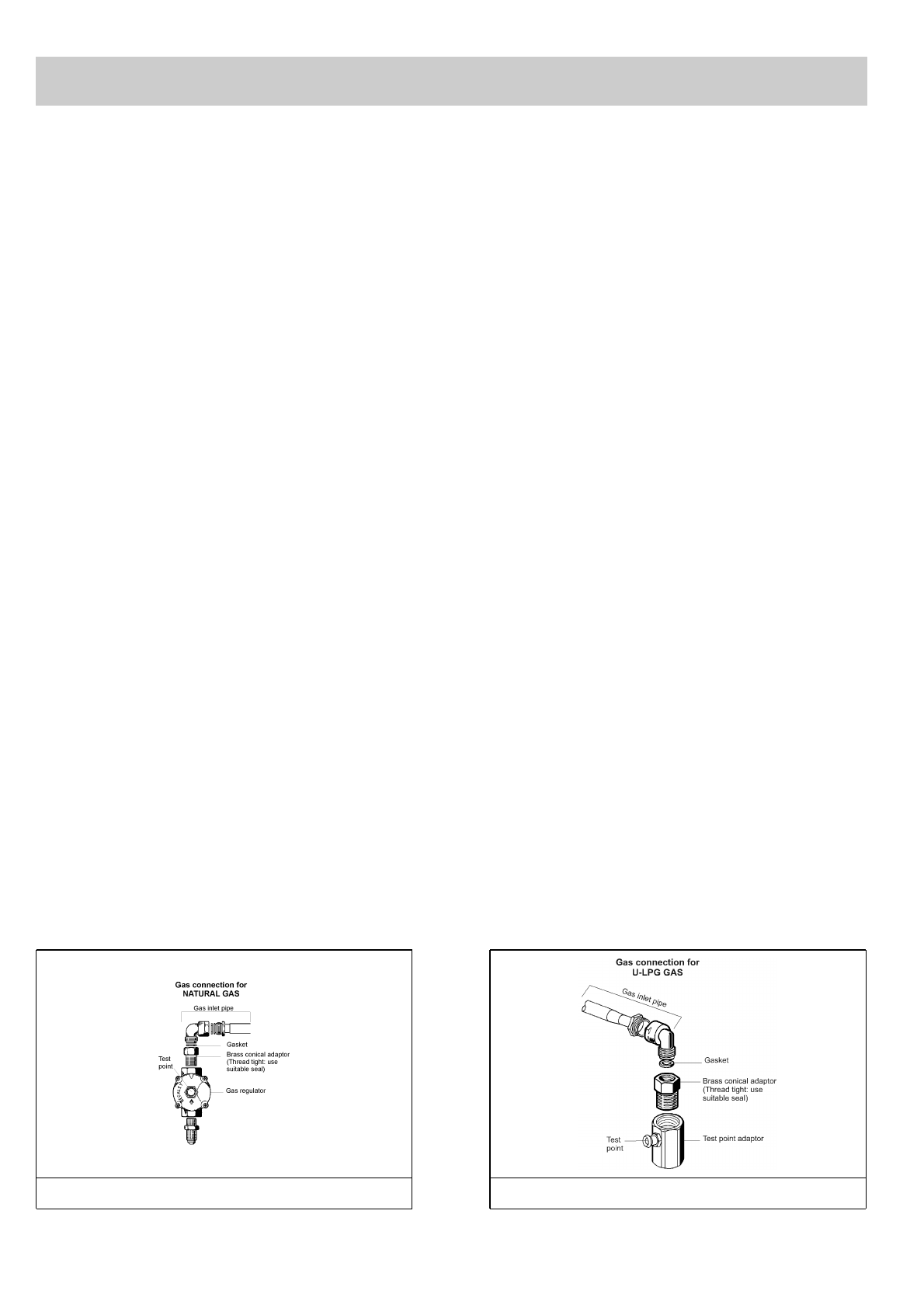

FIG. 10
FIG. 11
