Instructions for the installer

24

2

POSITIONING OF THE HOB

The following operation requires building and/or carpentry work so

must be carried out by a competent tradesman.

Installation can be carried out on various materials such as masonry,

metal, solid wood or plastic laminated wood as long as they are heat
resistant (T 90°C).

Never use silicone or other insulating products when installing the

appliance; use only the rubber gasket provided.

2.1

Attachment to support structure

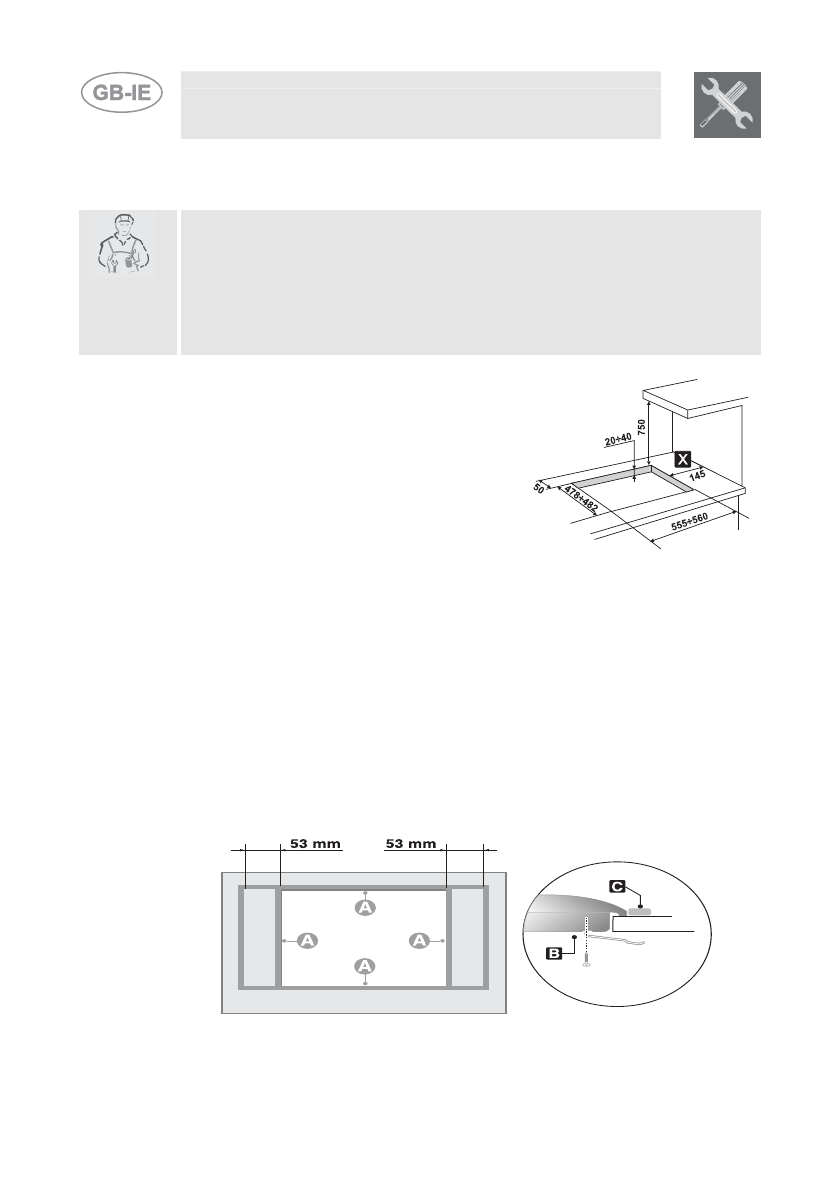

 Create an opening with the dimensions

shown in the figure in the top surface
of the counter, keeping a minimum
distance of

50 mm

 from the rear

border.
This device is classified "type Y" as
regards risks against fire and it can be
set adjacent to walls that are higher
than the work surface, provided that a
distance of

145 mm

. is respected (as

shown in the figure) to prevent damage
due to overheating..

 Make sure there is a minimum of

750 mm

 between the hot plate flames

and any shelf that may be installed directly above them. Accurately
position the gasket provided all around the outer edge of the hole in the
top surface as shown in the figures below, pressing it down so as to
make it adhere properly. Refer to the dimensions shown in the
diagram, bearing in mind that the sides A must be flush with the hole.
Fix the hob to the unit using the brackets B provided.

Carefully trim any excess from border

C

of the gasket. The distances in

the following drawing refer to the hole

on the inner side

of the gasket.
