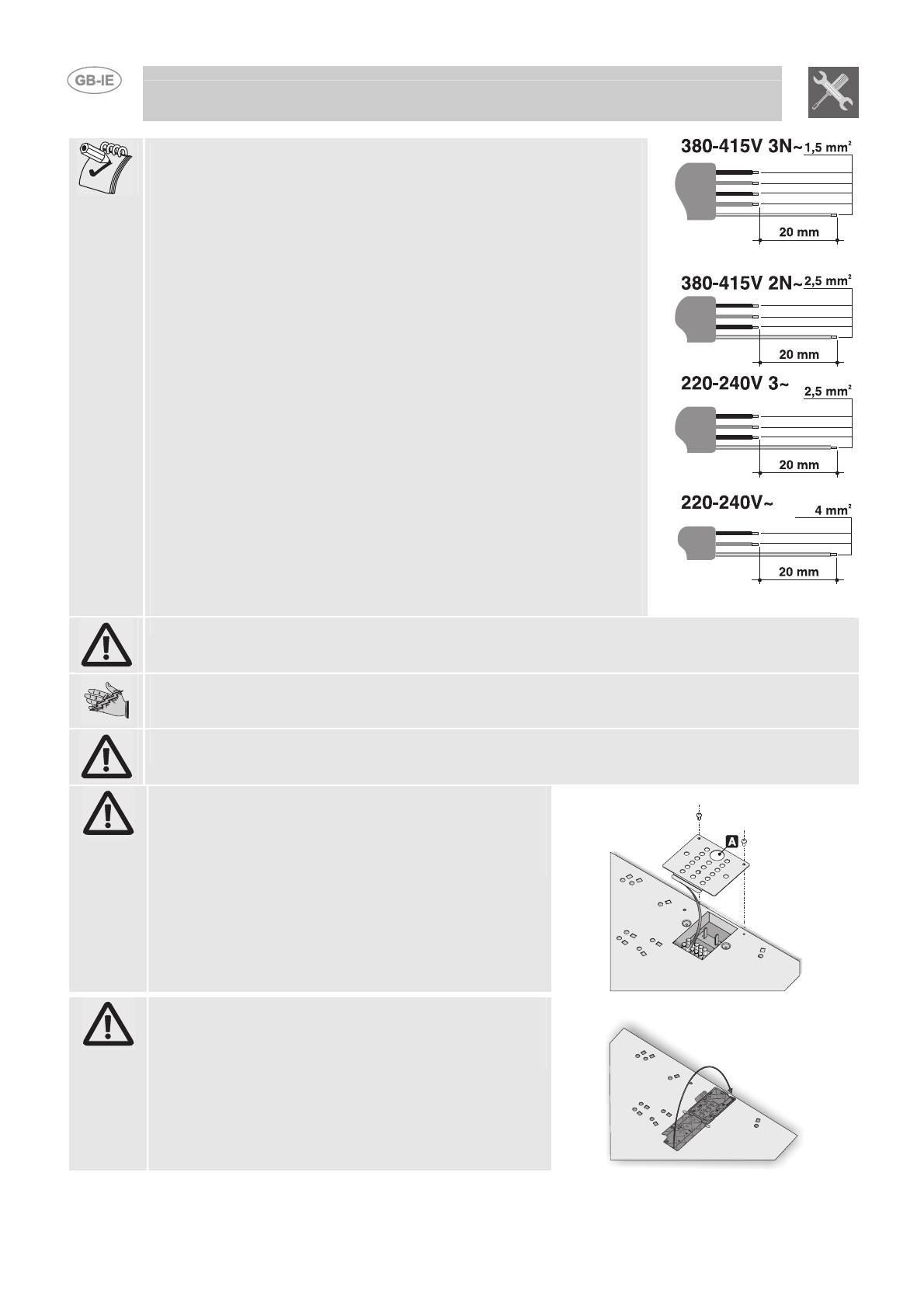

Instructions for the installer

30

For operation on 380-415 V 3N

∼

:

 use a H05RRF / H05RN-F type five-

core cable (5 x 1,5 mm

2

).

This type of connection cannot be used for models with 5 plates.



For operation on 380-415 V 2N

∼

:

 use a H05RR-F / H05RN-F type

four-core cable (4 x 2,5 mm

2

).



For operation on 220-240 V 3

∼

:

 use a H05RR-F / H05RN-F type four-

core cable (4 x 2,5 mm

2

).


For operation on 220-240 V

∼

:

 use a H05RR-F / H05RN-F type three-

core cable.

2

(3 x 2.5 mm

: cooking hob with 4 plates)

2

(3 x 4 mm

: cooking hob with 5 plates)


The cable end to be connected to the appliance must be provided with

an earth wire (yellow-green) at least 20 mm longer.
Read the connection layout plate underneath the appliance with care.

If the appliance you have purchased is not fitted with a mains power lead a power lead resistant to a
temperature of at least 90°C must be used.
Otherwise, the electrical safety of the appliance may be put at risk.

The manufacturer declines all responsibility for damage to persons or things caused by non-

observance of the above prescriptions or by interference with any part of the appliance.

TYPE 1 TERMINAL BOARD

Warning:

 pass the power cable through hole “

A

” and fit

the cable clamp plate after making the electrical
connection.

To fit the plate, simply use the provided bolts to secure it
under the casing as shown in the figure.

TYPE 2 TERMINAL BOARD

Warning:

 close the cable clamp after making the

electrical connection. Close the terminal board cover by

twisting it down.
