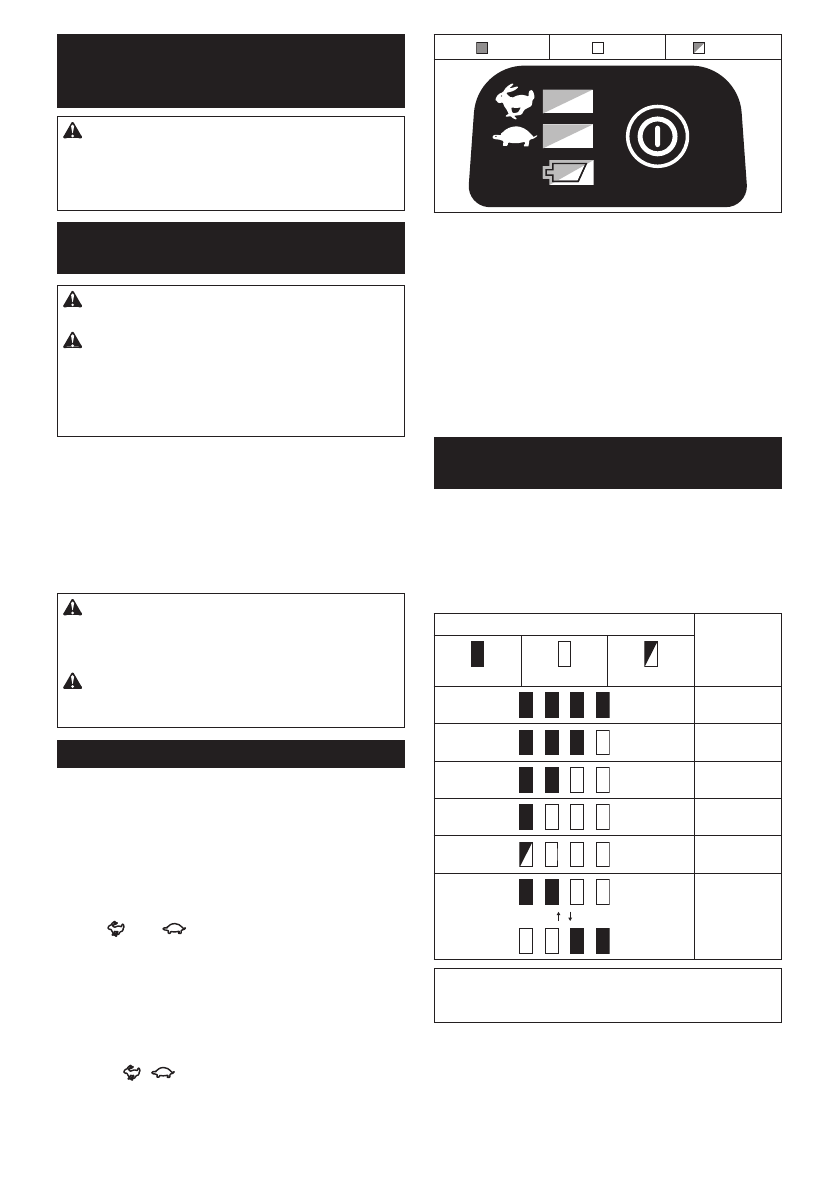

11 ENGLISH

FUNCTIONAL

DESCRIPTION

WARNING:

Always be sure that the tool is

switched off and the battery cartridge is removed

before adjusting or checking function on the tool.

Failure to switch off and remove the battery cartridge may

result in serious personal injury from accidental start-up.

Installing or removing battery

cartridge

CAUTION:

Always switch off the tool before

installing or removing of the battery cartridge.

CAUTION:

Hold the tool and the battery car-

tridge firmly when installing or removing battery

cartridge.

 Failure to hold the tool and the battery

cartridge firmly may cause them to slip off your hands

and result in damage to the tool and battery cartridge

and a personal injury.

►

Fig.5:

1.

 Red indicator

2.

 Button

3.

 Battery cartridge

To remove the battery cartridge, slide it from the tool

while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the

battery cartridge with the groove in the housing and slip

it into place. Insert it all the way until it locks in place

with a little click. If you can see the red indicator on the

upper side of the button, it is not locked completely.

CAUTION:

Always install the battery cartridge

fully until the red indicator cannot be seen.

 If not,

it may accidentally fall out of the tool, causing injury to

you or someone around you.

CAUTION:

Do not install the battery cartridge

forcibly.

 If the cartridge does not slide in easily, it is

not being inserted correctly.

Tool / battery protection system

The tool is equipped with a tool/battery protection system. This

system automatically cuts off power to the motor to extend tool

and battery life. The tool will automatically stop during oper-

ation if the tool or battery is placed under one of the following

conditions. In some conditions, the indicators light up.

Overload protection

If the tool is overloaded by entangled weeds or other
debris,

, and

 indicators start blinking and the

tool automatically stops.

In this situation, turn the tool off and stop the application

that caused the tool to become overloaded. Then turn

the tool on to restart.

Overheat protection for tool or battery

When the tool is overheated, the tool stops automati

-

cally, and

,

, and capacity indicators blink about

60 seconds.

In this situation, let the tool cool down before turning the

tool on again.

 On

 Off

 Blinking

If the tool does not start, the battery may be overheated.

In this situation, let the battery cool before starting the

tool again.

Overdischarge protection

When the battery power is nearly used up, the capacity

indicator starts blinking. And when the battery power

is used up, the capacity indicator lights up and the tool

stops automatically.

In this case, remove the battery from the tool and

charge the battery.

►

Fig.6:

1.

 Capacity indicator

Indicating the remaining battery

capacity

Only for battery cartridges with "B" at the end of the

model number

►

Fig.7:

1.

 Indicator lamps

2.

 Check button

Press the check button on the battery cartridge to indi-

cate the remaining battery capacity. The indicator lamps

light up for few seconds.

Indicator lamps

Remaining

capacity

Lighted

Off

Blinking

75% to 100%

50% to 75%

25% to 50%

0% to 25%

Charge the

battery.

The battery

may have

malfunctioned.

NOTE:

 Depending on the conditions of use and the

ambient temperature, the indication may differ slightly

from the actual capacity.
