Introduction

5

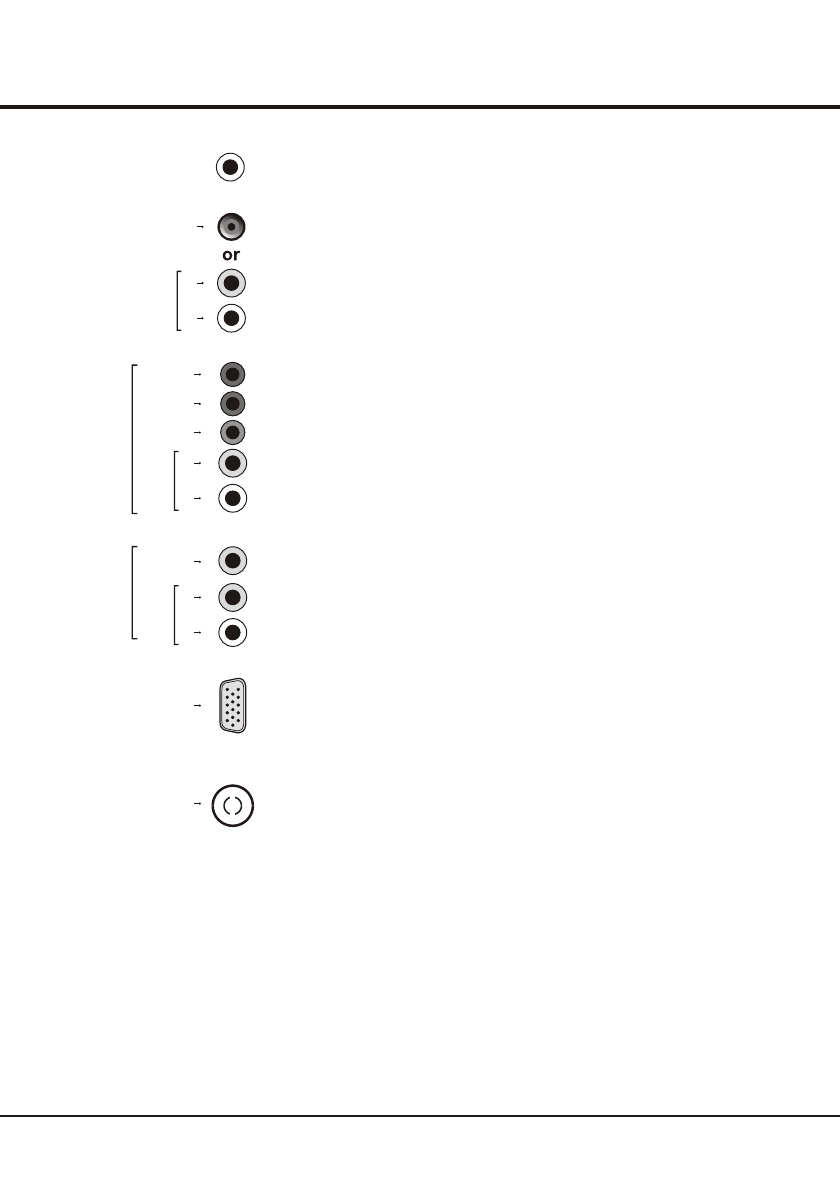

VGA socket (input)

This socket can be used to connect a computer.

Note:

VGA shares the same audio sockets with YPBPR.

VGA

ANTENNA IN

ANTENNA IN socket (input)

This socket can be used to connect the outside aerial or cable network.

YPBPR component sockets (input)

Y/VIDEO

P

B

/C

B

P

R

/C

R

COMPONENT

IN

(Y P

B

 P

R

)

These YPBPR sockets can be used to connect a device that has component video
sockets, such as a DVD player. The component sockets can recognize if the device
you're connecting to is Y PB PR compatible or Y CB CR compatible. The component
sockets provide excellent picture quality because the video is separated into three
separate parts.

R

L

CMP/VGA
AUDIO IN

AV 2 RCA audio + video sockets (input)

AV 2 IN

The AV 2 IN sockets can be used to connect a range of equipment, including video
recorders, camcorders, decoders, satellite receivers, DVD players, or games
consoles. The VIDEO IN socket provides

 composite video connection.

Note:

AV2 shares video(Y/VIDEO) and audio sockets with YPBPR.

Y/VIDEO

R

L

CMP/VGA
AUDIO IN

VIDEO

OUT

Use an RCA  video cable to connect your TV to a compatible video receiver.

RCA VIDEO OUT socket

AUDIO

OUT

adapter

R

L

AUDIO

OUT

The AUDIO OUT adapter socket  can be used to connect an audio adapter cable
with AUDIO L&R OUT sockets.

AUDIO OUT adapter socket

RCA AUDIO OUT sockets

Use an RCA  audio cable to connect your  TV  to a compatible audio receiver.
