Introduction

5

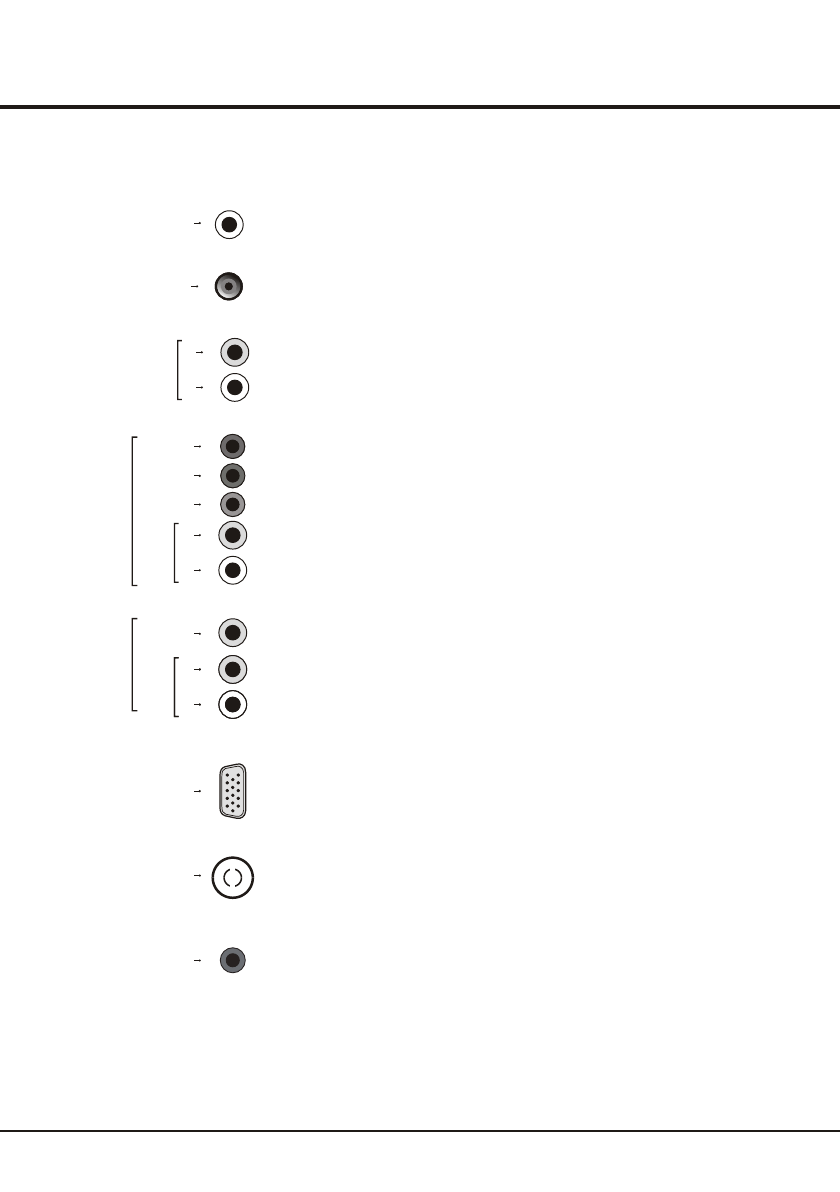

VGA socket (input)

This socket can be used to connect a computer.

Note:

VGA shares the same audio sockets with YPBPR.

VGA

ANTENNA IN

ANTENNA IN socket (input)

This socket can be used to connect the outside aerial or cable network.

VIDEO

OUT

AUDIO

OUT

adapter

Use an RCA  video cable to connect your TV to a compatible video receiver.

The AUDIO OUT adapter socket  can be used to connect a audio adapter cable with
 AUDIO L&R OUT sockets.

YPBPR component sockets (input)

Y/VIDEO

P

B

/C

B

P

R

/C

R

COMPONENT

IN

(Y P

B

 P

R

)

These YPBPR sockets can be used to connect a device that has component video
sockets, such as a DVD player. The component sockets can recognize if the device
you're connecting to is Y PB PR compatible or Y CB CR compatible. The component
sockets provide excellent picture quality because the video is separated into three
separate parts.

R

R

L

L

CMP/VGA
AUDIO IN

AV 2 RCA audio + video sockets (input)

AV 2 IN

The AV 2 IN sockets can be used to connect a range of equipment, including video
recorders, camcorders, decoders, satellite receivers, DVD players, or games
consoles. The VIDEO IN socket provides

 composite video connection.

Note:

AV2 shares video(Y/VIDEO) and audio sockets with YPBPR.

Y/VIDEO

R

R

L

L

CMP/VGA
AUDIO IN

SPDIF socket (output)

This SPDIF socket can be used to connect a compatible digital audio receiver.

SPDIF

AUDIO

OUT

U s e   a n   R C A    a u d i o   c a b l e   t o  c o n n e c t   y o u r     T V    t o   a   c o m p a t i b l e  a u d i o   r e c e i v e r .

or
