7

English

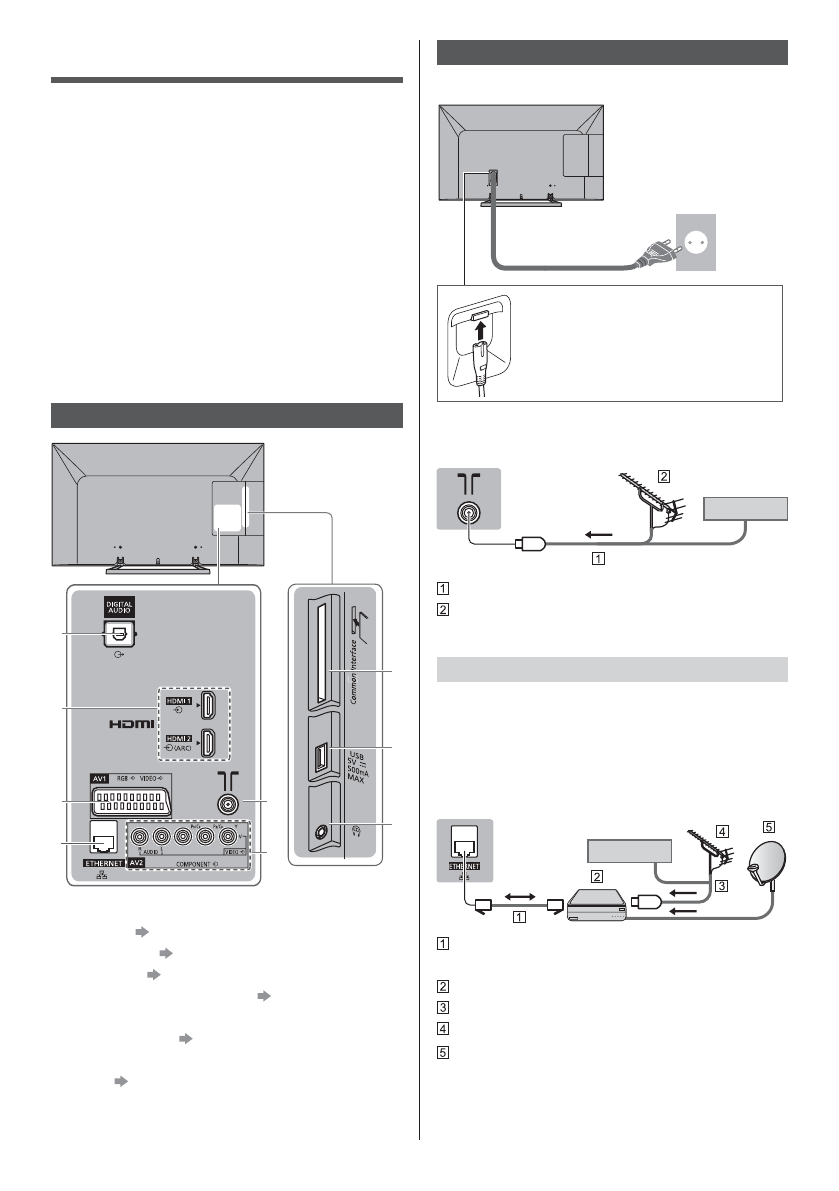

Basic connections

■

Mains lead

AC 220-240 V
50 / 60 Hz

Mains lead
(supplied)

Insert the mains plug firmly into
place.

●

When disconnecting the mains lead,
be absolutely sure to disconnect the
mains plug from the mains socket
first.

■

Aerial

TV

Cable

 RF cable
 Terrestrial aerial

●

For DVB-C, DVB-T, Analogue

DVB-via-IP client connection

This TV has DVB-via-IP client function and can connect
to DVB-via-IP server to watch broadcast streaming.

●

It is recommended to connect to DVB-via-Ip server
with a LAN cable.

■

Wired connection

TV

Cable

 LAN cable (Shielded)

●

Use Shielded Twist Pair (STP) LAN cable.

 DVB-via-IP server
 RF cable
 Terrestrial aerial

 Satellite dish

Connections

●

External equipment and cables shown are not
supplied with this TV.

●

Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.

●

Check the terminal type and cable plugs are correct
for connection.

●

Use a fully wired HDMI compliant cable.

●

Use a fully wired SCART cable.

●

Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.

●

Please also read the manual of the equipment being
connected.

Terminals

9

8

7

1

2

3

4

6

5

1 DIGITAL AUDIO
2  HDMI1 - 2   (p. 7, 8)
3 AV1 (SCART)   (p.  8)
4 ETHERNET   (p. 7, 8)
5  AV2 (COMPONENT / VIDEO)   (p.  9)
6  Terrestrial / cable terminal
7 Headphone jack   (p. 9)
8 USB port
9 CI slot   (p.  9)
