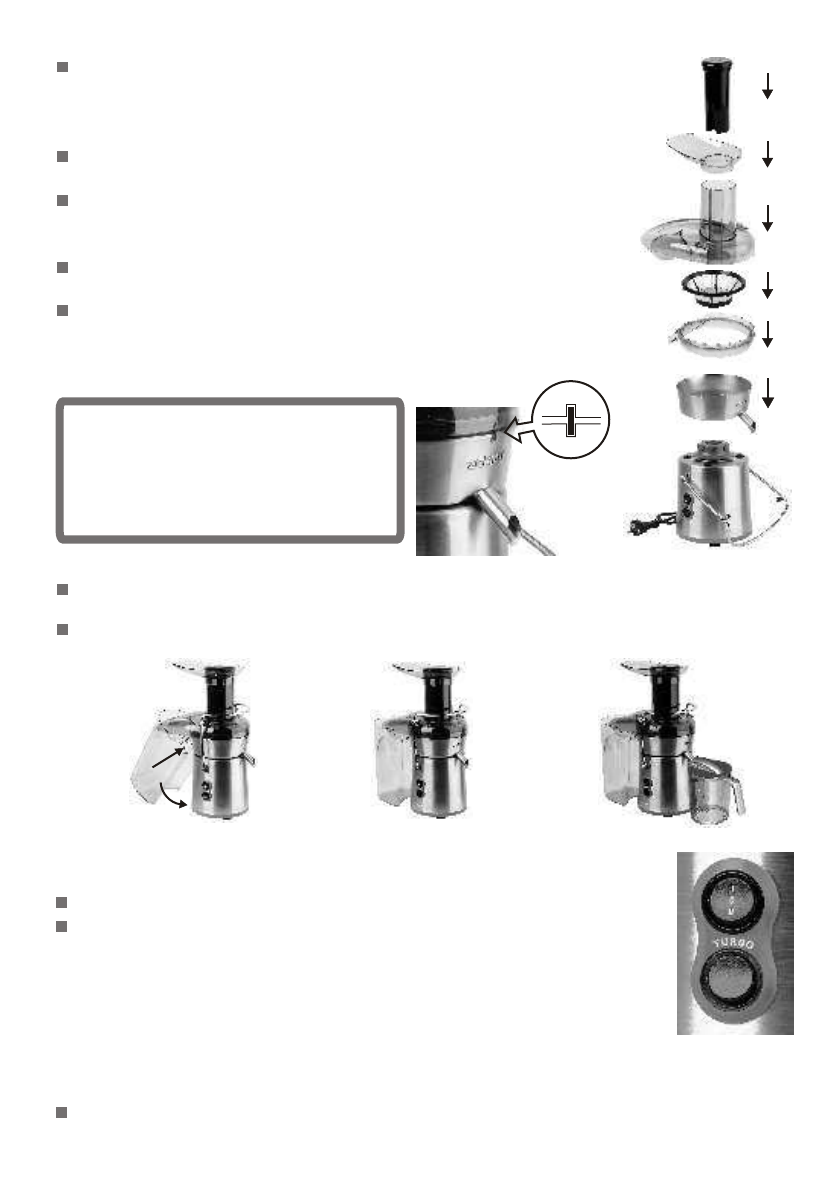

Align the insert

(3)

to the bowl

(2)

so that the fin

(g)

of the insert

(3)

 is placed in the cutting of the bowl

(2)

 over the juice spout.

Put the filter

(4)

 inside and check if it is well mounted and

rotates easily

Put the lid

(5)

so that the fin

(g)

of the insert

(3)

was placed in

the cutting of the lid

(5)

Pull the locking bar

(6)

 up, so that the rolls moved into grooves

of   the   lid

(5)

from  position

2

  to  position

1

( you   will   hear

a characteristic clicking sound).

Put the bowl for the small fruits

(7)

 on the chute of the lid

(5)

when necessary

Put the pusher

(8)

 into the chute so that the V-shaped hole was

put on the knife inside the chute

.

.

.

.

We call your attention to proper

assembling. The fin

(g)

 of the insert

(3)

 should be in the same line as the

cutting on the bowl

(2)

 and the

cutting in the lid

(5)

.

Put the pulp collector

(12)

under the lid

(5)

in the following way:

lean the collector and

place it under the insert

(3 )

and lid

(5),

 then push it towards the motor

(1)

Put the juice collector

(9)

 so that the juice spout

(f)

 was inside the collector

(9

.

)

.

Start-up and operation

Plug the juice extractor in and start it up with the switch

(a)

setting as necessary gear 1 (position

I

 - low rotation for soft fruit

like raspberries, tomatoes, cucumbers, melons etc.) or gear 2

(position

II

 - high rotation for hard fruit like carrots, celeries,

beetroots, apples etc.)

.

Such exemplar table including exact information on selection of appropriate

gear for particular fruit and vegetables is on page 8

4.

Put some fruit or vegetables into chute and press them slightly with the pusher

.

Check if the switch is turned to

position

„0”

 .
